Description
The 62GB-12E14-19SN is a 19-contact miniature Bayonet Lock Connector with gold-plated copper contacts. This 14-size box mounting receptacle has socket type contacts, solder contact termination and 14-19 insert arrangement. The normal shell finish used, which has a high resistance to corrosion and is zinc cobalt olive drab.
- 5mR Contact resistance
- 5000MR at 500 to 50VDC Insulation resistance
- 500 Operations minimum mechanical endurance
Applications
Aerospace, Defence, Military
Product details
| Contact Material | Copper Alloy |
| Circular Connector Shell Style | Box Mount Receptacle |
| Contact Plating | Gold |
| Insert Arrangement | 14-19 |
| Connector Body Material | Aluminium Alloy Body |
| Service Class | Environmentally Sealed |
| Coupling Style | Bayonet |
| No. of Contacts | 19Contacts |
| Product Range | 62GB Series |
| Equivalent Military Specification | MIL-DTL-26482 Series |
| Connector Body Plating | Olive Drab Zinc |
| Insert Rotation | N |
| Circular Contact Type | Solder Socket |
Other details
| Brand | AMPHENOL |
| Part Number | 62GB-12E14-19SN |
| Quantity | Each |
| Technical Data Sheet EN |  |

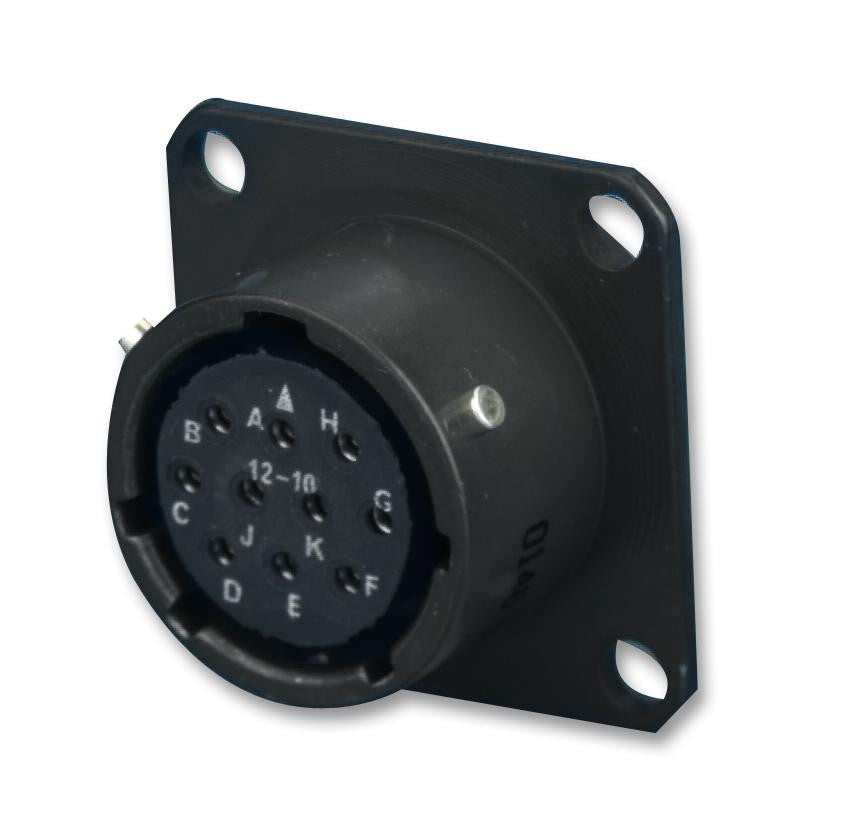

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
