Description

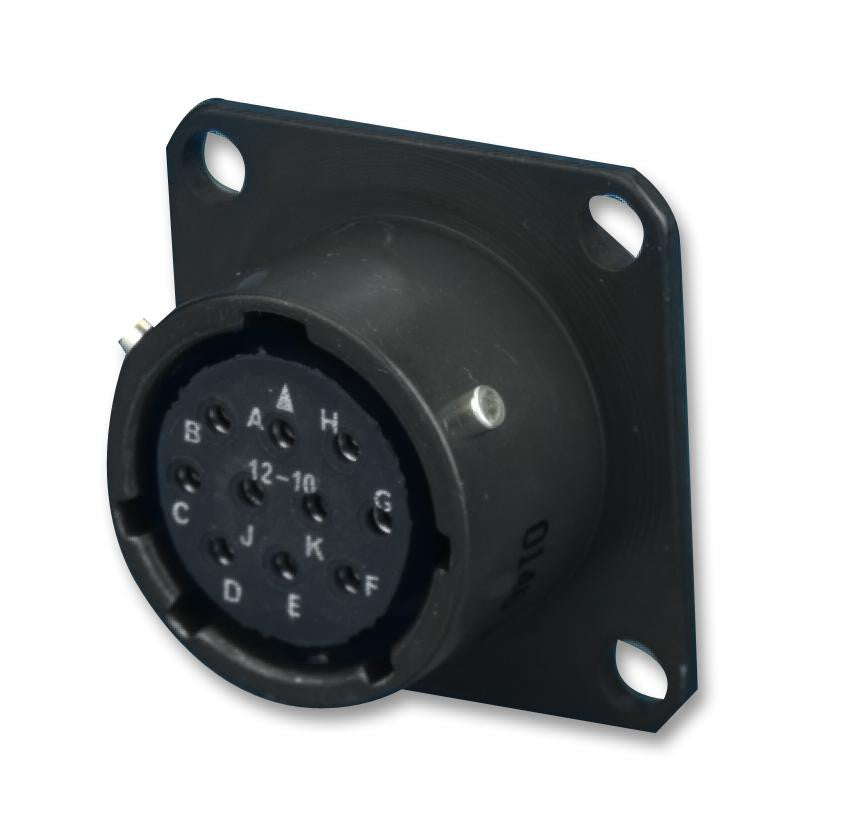

The 62GB-12E12-10SN from Amphenol is 62GB series, MIL-DTL-26482 series equivalent box mount receptacle with 10 contacts. The 62GB series miniature bayonet lock connectors are designed for harsh environments. These connectors have well-proven electrical capability to withstand extreme shock, exposure and vibration. The 62GB series connectors have advantage of key way orientation to reduce mis-mating among multiple connectors. Complete moisture sealing is achieved by combining four seals such as shell, peripheral, interfacial and wire. Wire seal is accomplished by multiple ripple design, exceeding the wire sealing requirements of MIL-DTL-26482.
- Five keyway, three point bayonet coupling with optional rotational polarization
- Protection against cross plugging
- Operating temperature range from -55�C to +125�C
- Maximum contact resistance of 5mohm
- Insulation resistance is 5000Mohm at 25?C
- 500 mating cycles, environmentally sealed
- Wide range of wire gauges and current carrying capability
- Polychlroprene rubber compound insulator
- Aluminium alloy body material with olive drab zinc plating
- Copper alloy solder socket contacts with gold plating
Applications
Industrial, Commercial
Product details
| Contact Material | Copper Alloy |
| Circular Connector Shell Style | Box Mount Receptacle |
| Contact Plating | Gold |
| Insert Arrangement | 12-10 |
| Connector Body Material | Aluminium Alloy Body |
| Service Class | Environmentally Sealed |
| Coupling Style | Bayonet |
| No. of Contacts | 10Contacts |
| Product Range | 62GB Series |
| Equivalent Military Specification | MIL-DTL-26482 Series |
| Connector Body Plating | Olive Drab Zinc |
| Insert Rotation | N |
| Circular Contact Type | Solder Socket |
Other details
| Brand | AMPHENOL |
| Part Number | 62GB-12E12-10SN |
| Quantity | Each |
| Technical Data Sheet EN |  |
