Description

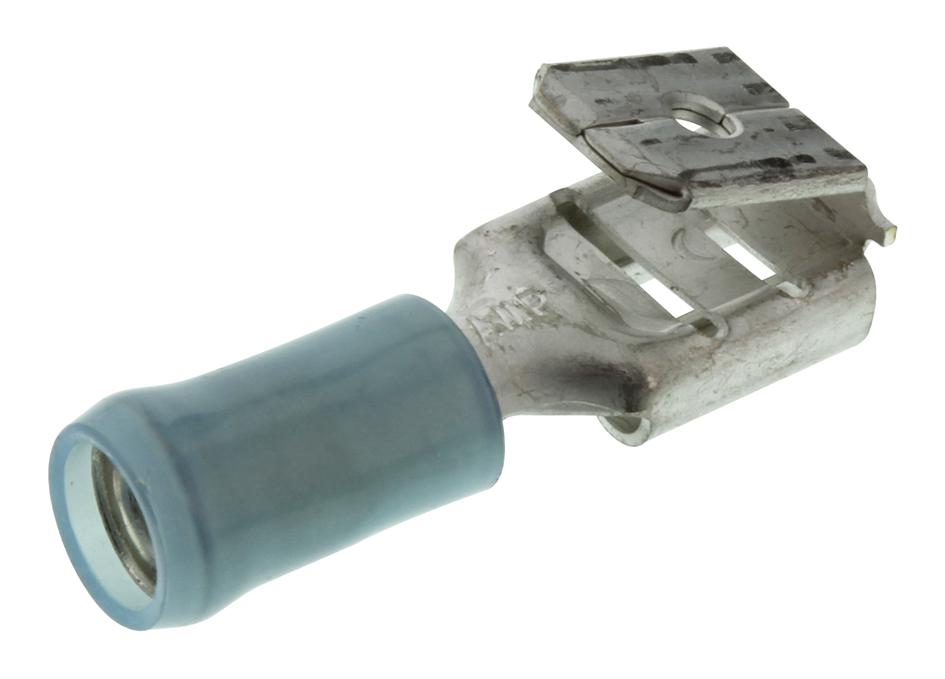

The 9-160463-2 is a female Disconnect Terminal made of brass with tin plated finish. This 90° PIDG Faston series piggyback straight quick disconnect terminal features a blue nylon insulator and crimp termination. This Tab-Lok crimp terminal accepts 17 to 13AWG wire.
- 300V Maximum voltage
Applications
Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: PIDG FASTON 250 |
| Terminal Type: Female Quick Disconnect |
| Tab Size - Metric: 6.35mm x 0.81mm |
| Tab Size - Imperial: 0.25" x 0.032" |
| Wire Size AWG Min: 17AWG |
| Wire Size AWG Max: 13AWG |
| Insulator Colour: Blue |
| Conductor Area CSA: 2.5mm² |
| Insulator Material: Nylon (Polyamide) |
| Terminal Material: Brass |
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 9-160463-2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
