Description

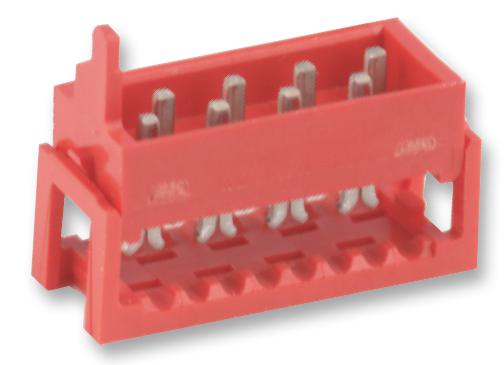

The 8-215083-4 is a 14-way 2-row Male Connector with polyester GF housing and tin-plated phosphor bronze contacts, 1.27mm pitch spacing and IDC/IDT termination. This connector is suitable for use with ribbon cable.
- Red housing
- UL94V-0 Flammability rating
- 100VDC Operating voltage
- 1000MR Insulation resistance
- 1.5A Contact current rating
Industrial
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 8-215083-4 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| 3D Product Image EN | |
| Application Note EN | |
| Drawing EN | |
