Description

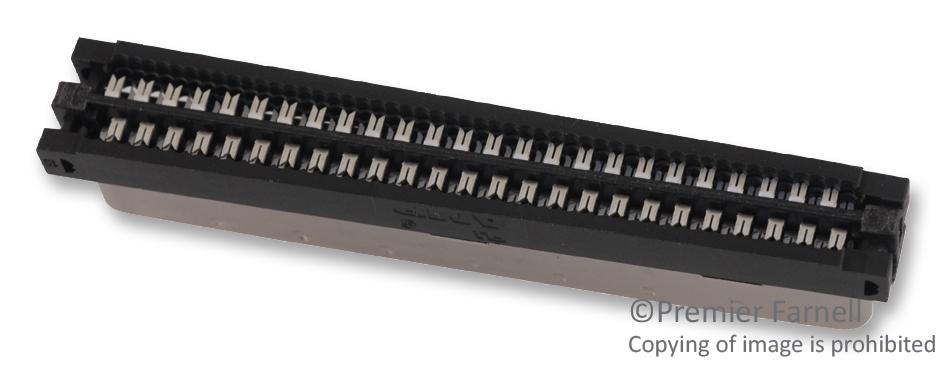

The 5749111-8 is a 100-position 2-row IDC D-sub Connector with gold flash over palladium nickel-plated phosphor bronze contacts and black thermoplastic housing. The shielded Amplimite .050 series headers with action pin contacts offer a high-density D type interface and a solderless board-mount interconnection. When an Amplimite .050 series compliant action pin contact is inserted into a plated through-hole, two spring members are compressed, exerting force against the hole for a gas-tight connection. The diameter of the hole is smaller than the diagonal size of the pin. It is applicable to round jacketed cable.
- With rails
- Preloaded
- UL94V-0 Flammability rating
Industrial
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 5749111-8 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| One Page Summary EN | |
| Drawing EN | |
| Operating Instructions EN | |
| Product Change Notice EN | |
