Description

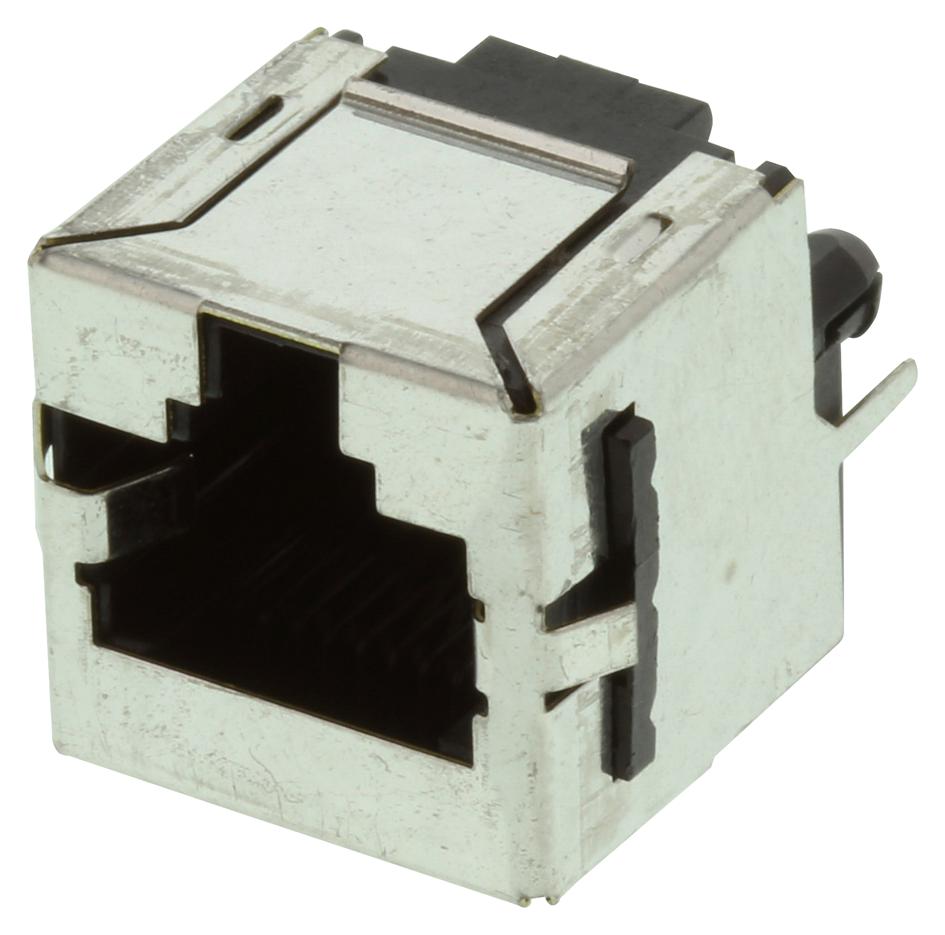

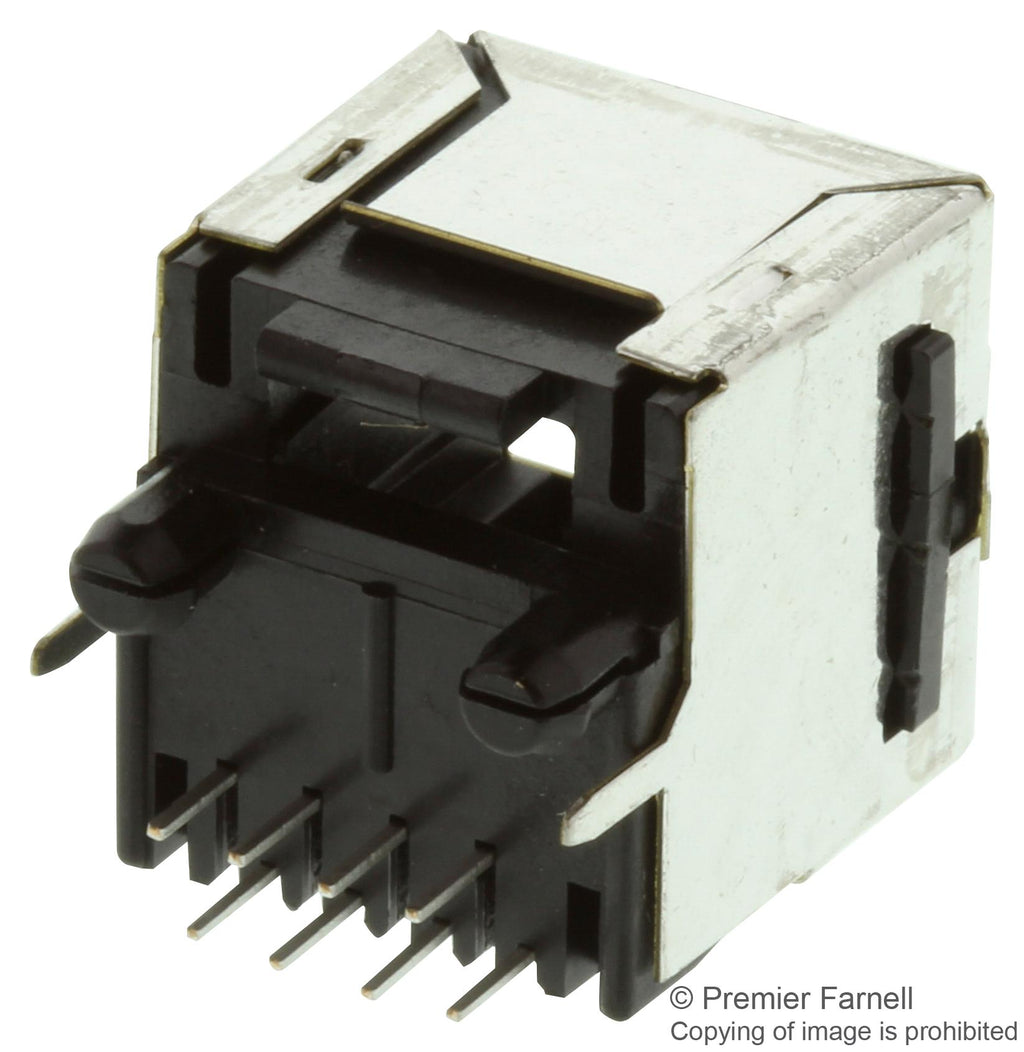

The 5557730-1 is a 8P8C 1-port Cat3 shielded thru-hole RJ45 Modular Jack with panel stops and panel and PCB ground options, top entry. It meets 1000V dielectric requirement contact to contact and designed for direct mounting on pc boards. It has phosphor bronze plated with gold in contact area and tin-lead on solder tails over nickel under-plate contacts, polyester, polyphenylene sulphide or high temperature nylon material and finish housing.
- Designed for ease of soldering and board cleaning
- 20dB shielding effectiveness from 30 to 400MHz
- UL94V-0 Flammability
- 150VAC Voltage rating
- 1.5A Current rating (maximum)
- 750 Mating cycles durability
Computers & Computer Peripherals, Communications & Networking
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 5557730-1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
| Product Change Notice EN | |
| Enhanced Product Overview EN | |
| Manufacturer Catalogue EN | |
| One Page Summary EN | |
