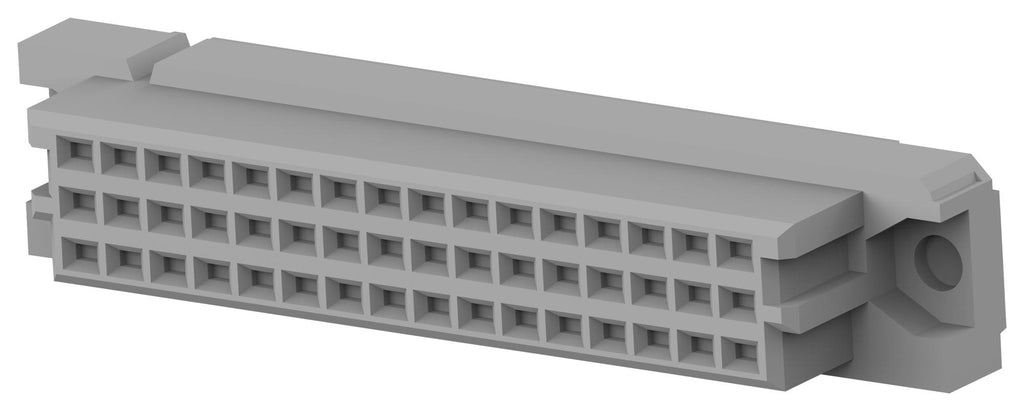

AMP - TE Connectivity 5535070-4 DIN 41612 Connector Eurocard Type 1/2C Series 48 Contacts Receptacle 2.54 mm 3 Row a + b c

This is a DIN 41612 Connector, Eurocard Type 1/2C Series, 48 Contacts, Receptacle, 2.54 mm, 3 Row, a + b + c product from AMP - TE CONNECTIVITY with the model number 5535070-4

Product details

Product Range	Eurocard Type 1/2C Series
No. of Contacts	48Contacts
Gender	Receptacle
Pitch Spacing	2.54mm
No. of Rows	3 Row
Rows Loaded	a + b + c
Contact Plating	Tin Plated Contacts
Contact Material	Copper Alloy
No. of Mating Cycles	-

Other details

Brand	AMP - TE CONNECTIVITY
Part Number	5535070-4
Quantity	Each
Technical Data Sheet EN
3D Product Image EN
Drawing EN
Product Change Notice EN
