Description

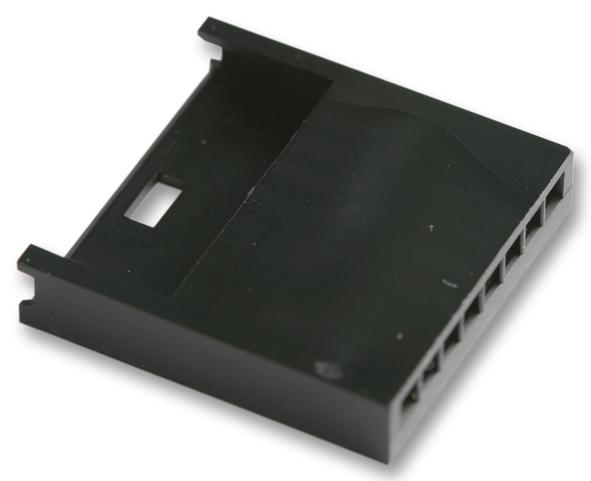

The TE Connectivity AMPMODU Mod II pin housings provide a comprehensive solution for popular connection standard. Cable mount pin housings mate with both PCB and cable mount receptacles.
- Comprehensive single and double row connector system
- Current rating 3A max per contact
- Pitch size is 2.54mm
- Operating temperature range -40°C to 80°C
- Contact resistance of 15mohm
- Insulation resistance of 5000Mohm
- Thermoplastic housings are UL 94V-1 and UL 94V-0 rated
- Tin and gold plated contacts available
- Features 0.63mm posts with mating receptacles
- Rugged
Industrial
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 280631 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Drawing EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 213.82 |
| 3-5 | ₹ 211.63 |
| 5-10 | ₹ 207.27 |
| 10+ | ₹ 202.91 |
Bulk discount will be automatically applied during checkout based on quantity.
