Description

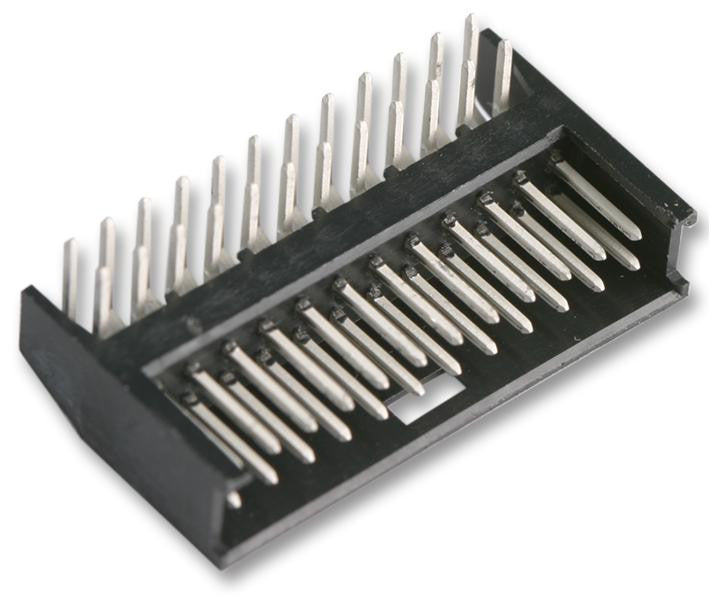

The TE Connectivity AMPMODU Mod II shrouded headers provide a comprehensive solution for popular connection standard. Shrouded headers feature gold or tin plating with straight or right angle orientation. These headers will mate with both PCB and cable mount receptacles.
- Comprehensive single and double row connector system
- Current rating 3A max per contact
- Pitch size is 2.54mm
- Operating temperature range -40�C to 80�C
- Contact resistance of 15mohm
- Insulation resistance of 5000Mohm
- Tin and gold plated contacts available
- Features 0.63mm posts with mating receptacles
Applications
Industrial
Product details
| No. of Contacts | 16Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Header |
| Product Range | AMPMODU MOD II Series |
| Contact Material | Brass |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2Rows |
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 280390-2 |
| Quantity | Each |
| Drawing EN |  |
| 3D Product Image EN | |
| Product Change Notice EN | |
