Description

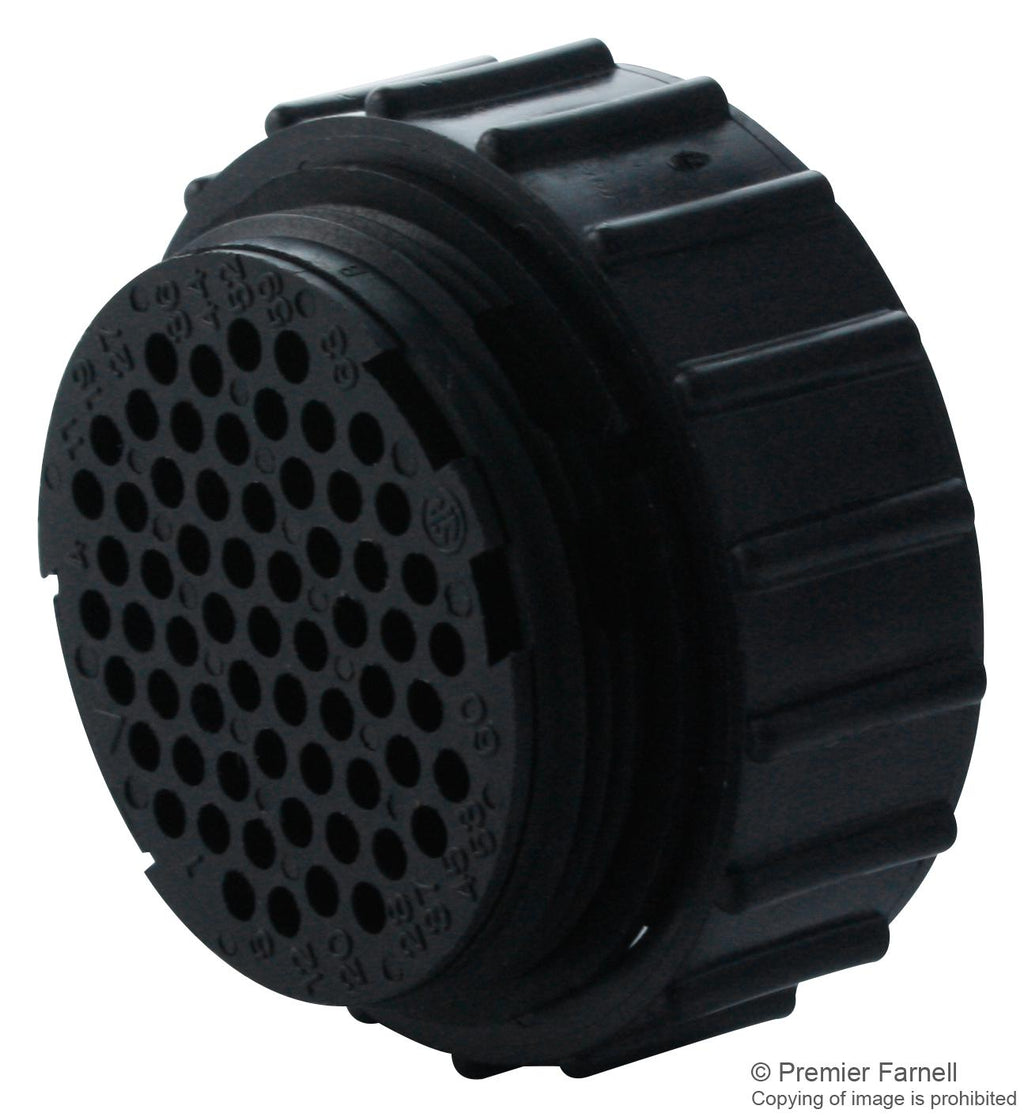

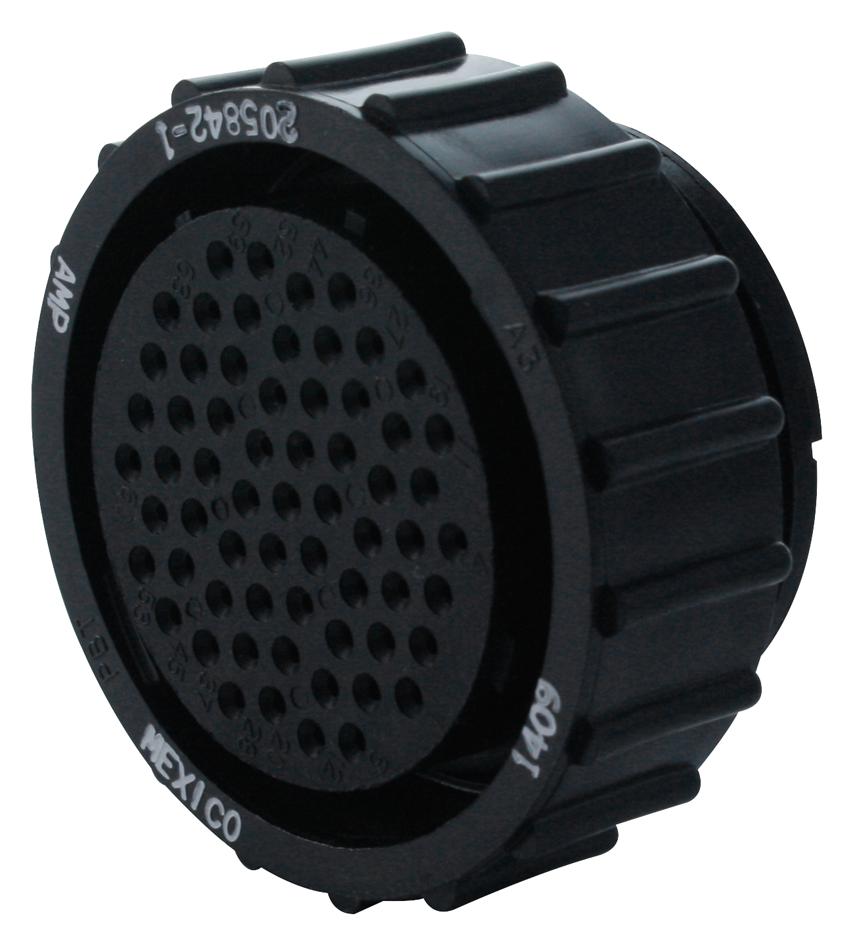

The 205842-1 is a 63-position straight Free Hanging Plug with black thermoplastic housing and 23-63 insert arrangement. The series 2 CPC connector for cable mount. The series 2 connector accepts size 20 DF (precision formed) and size 20 DM (screw-machined) socket contacts. Maximum current carrying capability is 7.5A.
- Lightweight
- Quick connect/disconnect capability with thread assist, positive detent coupling
- Polarized for proper mating of connector halves
- Keyed mating alignment
- Threaded coupling mating retention
- Contact protection
- UL94V-0 Flammability rating
Commercial, Signal Processing, Power Management, Computers & Computer Peripherals
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 205842-1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| 3D Product Image EN | |
| Drawing EN | |
| Manufacturer Catalogue EN | |
| Operating Instructions EN | |
