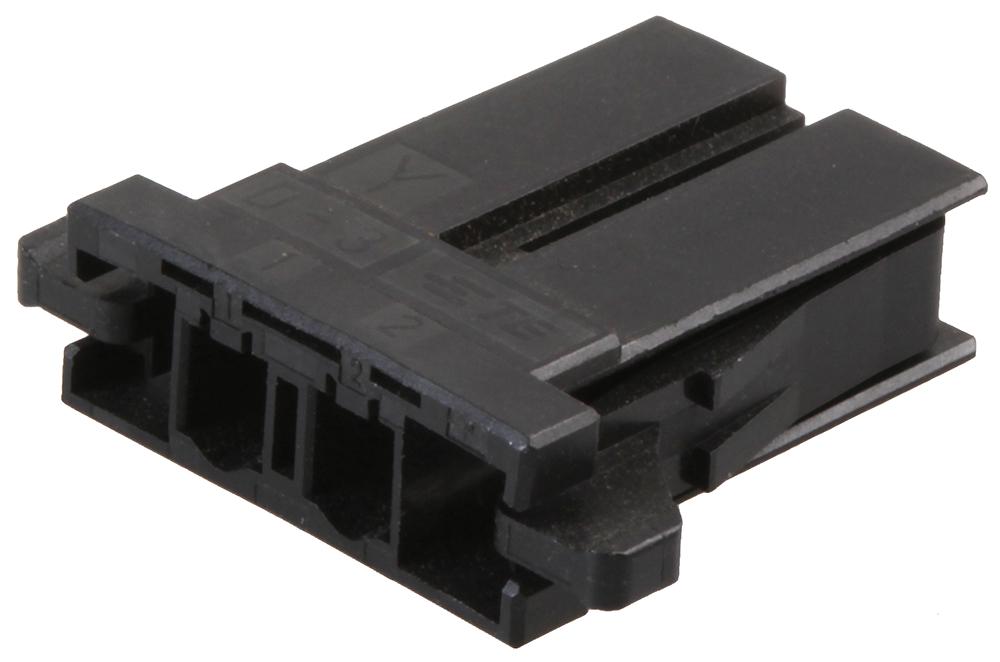

The 2-178128-2 is a 2-way 1-row dynamic black Receptacle Housing made of polyester GF. The housing is ideal for use with D-3000 series plug housing and header. It can also be used in modular configuration with D-3200M tab housing and tab header.
- UL94V-0 Flammability rating
- In-line contact layout
- 9.8N Insertion force 600VAC/VDC Operating voltage
- 600VAC/VDC Operating voltage
- -55 to 105°C Operating temperature range
Other details
Brand |
AMP - TE CONNECTIVITY |
Part Number |
2-178128-2 |
Quantity |
Each |
Drawing EN |
 |
Product Change Notice EN |
 |
3D Product Image EN |
 |
