Description

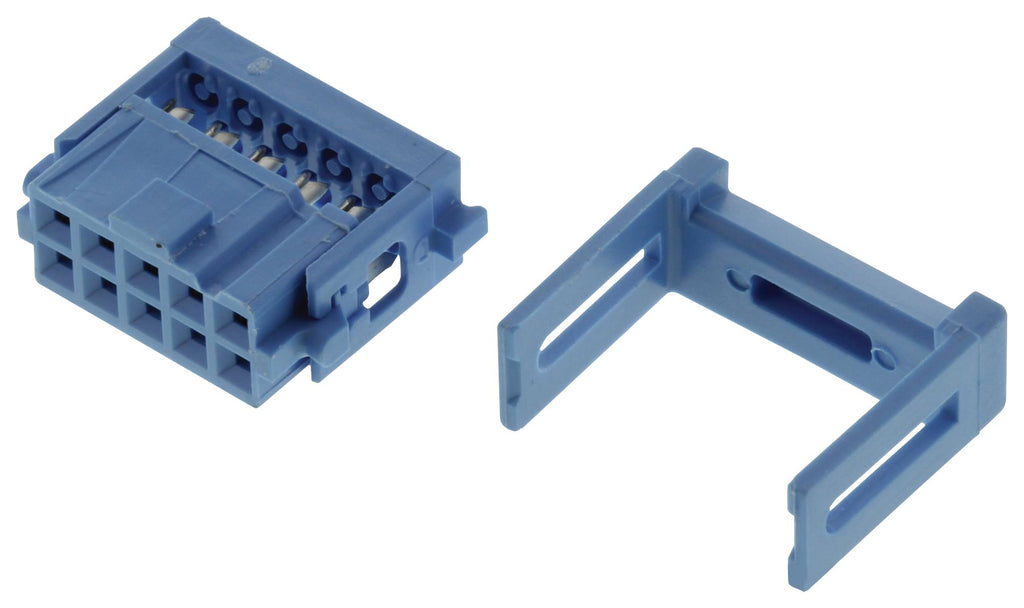

The 1658526-5 is a 10-way 2-row Female Ribbon Cable Socket with gold-plated beryllium copper contacts and IDC/IDT termination. This 609 series connector comes with blue glass-filled thermoplastic housing and accepts 30 to 28AWG solid or stranded, PVC insulated ribbon cable.
- Military and centre polarization
- UL94V-0 Flammability rating
- 1A Current rating
- >1 x 10�R at 500VDC Insulation resistance
- -55 to 125°C Operating temperature range
Industrial
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 1658526-5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| One Page Summary EN | |
| 3D Product Image EN | |
| Drawing EN | |
| Manufacturer Catalogue EN | |
