Description

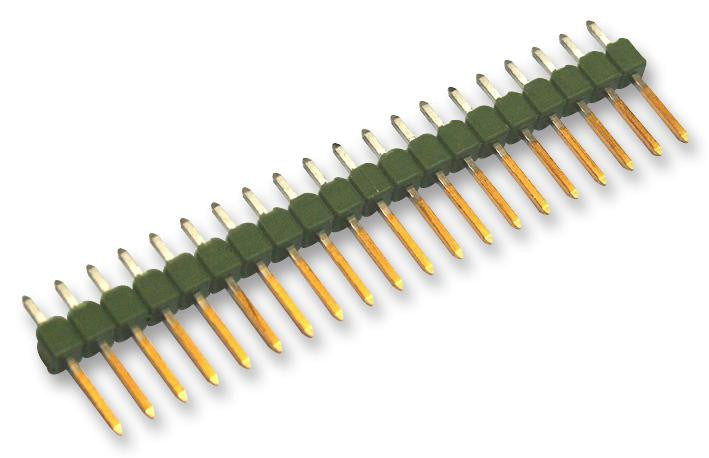

The 1-826629-0 is a 10-way 1-row Header with PBT GV housing and gold-plated phosphor bronze contacts, 2.54mm pitch spacing and through hole termination. This header is suitable for use with printed circuit board.
- Green housing
- UL94V-0 Flammability rating
- 0.8µm Plating thickness of contact mating area
- Operating temperature range -55°C to +105°C
- Contact resistance of 20mohm
- Insulation resistance of 1000Mohm
- Tin and gold plated contacts available
- Features 0.63mm posts with mating receptacles
Applications
Industrial
Product details
| No. of Contacts | 10Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Header |
| Product Range | AMPMODU MOD II Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2.54mm |
| No. of Rows | 1Rows |
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 1-826629-0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
