Description

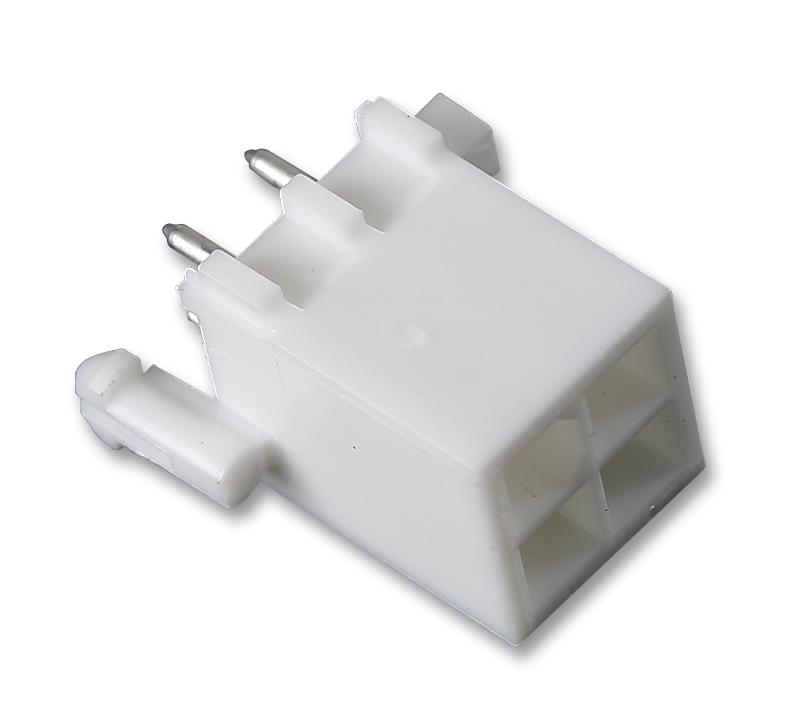

The 1-770174-1 is a 4-way 2-row Mini-Universal MATE-N-LOK Connector with gold-plated brass contacts. The soft shell pin and socket connector comes with white nylon housing and can be used with plug housing. The Mini-Universal MATE-N-LOK connector system offers wire-to-wire and wire-to-board connections with contacts on a 4.14mm centerline and current ratings up to 9.5A maximum per line. It also offers a splash-proof design allowing for use in areas where high humidity, intermittent liquid splashing or foam-in applications require a sealed connector for improved electrical performance. Fully polarized to provide proper plug-to-cap mating incorporating a positive locking mechanism to help prevent accidental disengagement of mated connectors.
- Pins and sockets can be accommodated in the same housing
- Splash-proof design for applications that require sealing
- Compact, durable housings
- Contacts fully protected in the housings
- Low insertion/extraction forces
- Contacts accept 30 to 16AWG wire
- UL94V-0 Flammability rating
- 9.5A Contact current rating
- 600VAC/DC Voltage rating
Consumer Electronics, Lighting, Medical, Security, Industrial, HVAC, Communications & Networking
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 1-770174-1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Operating Instructions EN | |
| 3D Product Image EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
