Description

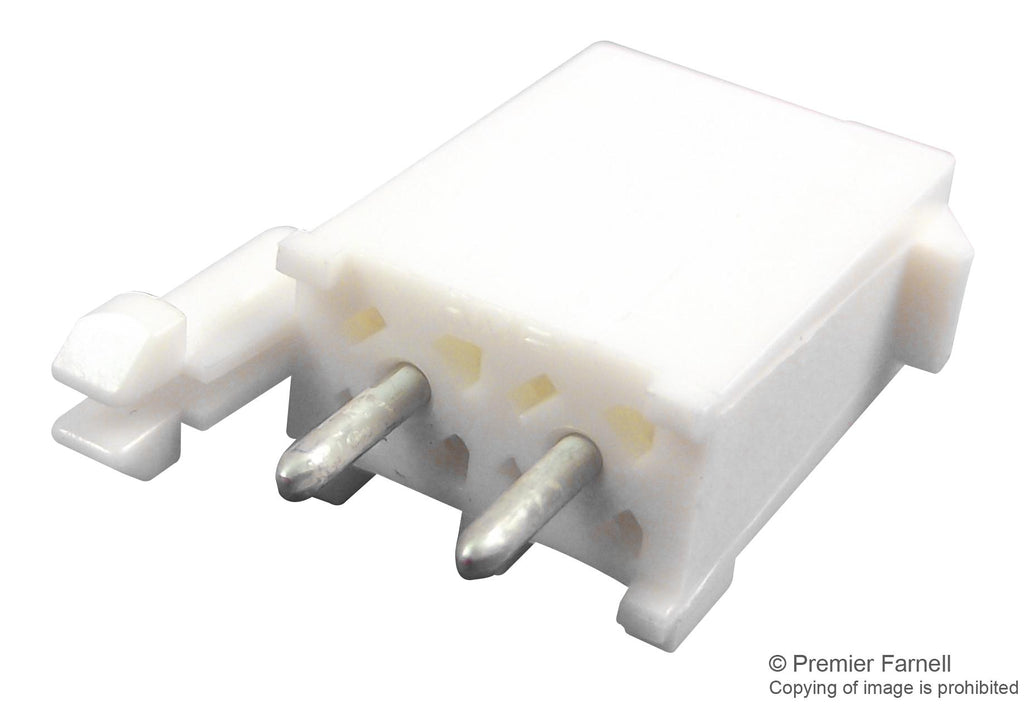

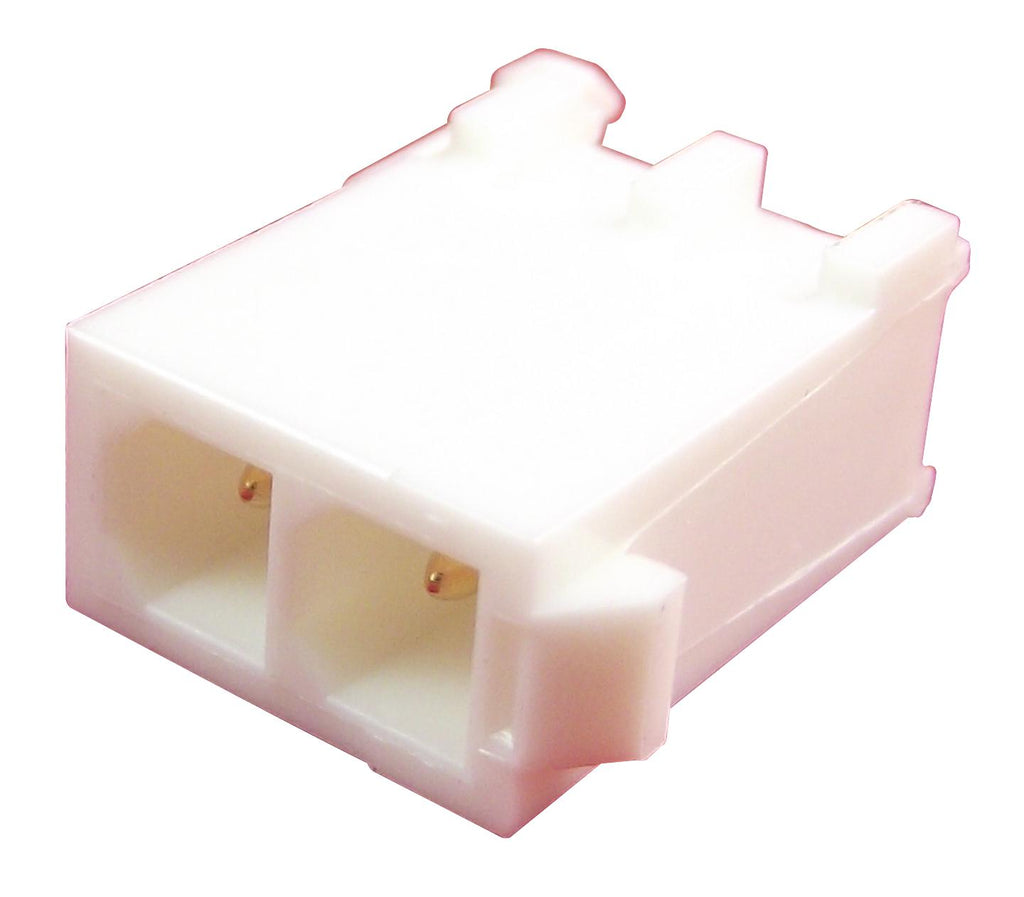

The 1-770166-1 is a 2-position 1-row vertical Wire-to-Board Mini Rectangular Connector with gold-plated brass contacts and white nylon housing. The Universal MATE-N-LOK plug supports through-hole solder termination method to PC board�and chamfered edges mating alignment type. It offers wire-to-board connections with contacts on a 4.14mm centreline and current ratings up to 9.5Amps maximum per line. Plug and receptacle housings allow wire-to-wire and wire-to-panel configurations and header assemblies offer wire-to-board connections in vertical and right angle configurations. The Mini-Universal MATE-N-LOK connector system also offers a splash-proof design allowing for use in areas where high humidity, intermittent liquid splashing or foam-in applications require a sealed connector for improved electrical performance.
- Contacts are on 4.14mm centreline spacing
- Pins and sockets can be accommodated in the same housing
- Splash-proof design for applications that require sealing
Applications
Consumer Electronics, Lighting, Medical, Security, Industrial, HVAC, Communications & Networking
Product details
| Connector Systems: Wire-to-Board |
| Pitch Spacing: 4.14mm |
| No. of Rows: 1Rows |
| No. of Contacts: 2Contacts |
| Contact Termination Type: Through Hole Straight |
| Product Range: Mini Universal MATE-N-LOK |
| Connector Shroud: Shrouded |
| Contact Material: Brass |
| Contact Plating: Gold Plated Contacts |
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 1-770166-1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
