Description

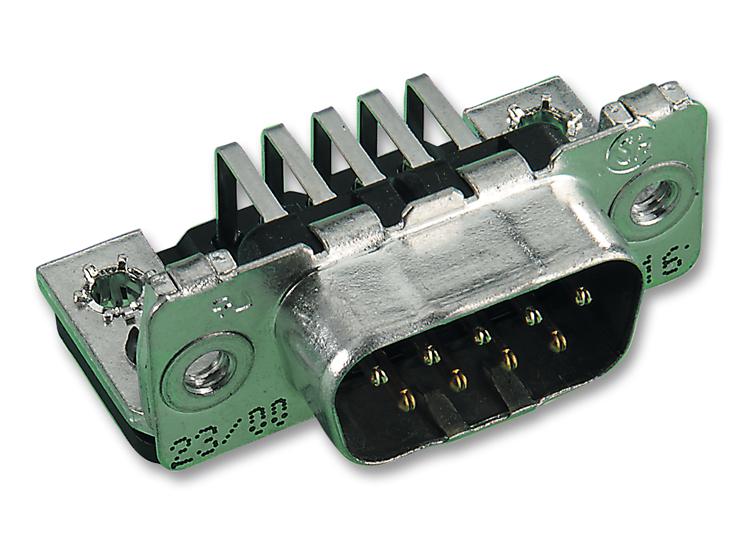

The 1-338168-2 is a 9-way 2-row PCB Standard D-sub Plug with gold over nickel plated phosphor bronze contacts, a tin-plated phosphor bronze boardlock and 4-40UNC threaded inserts. This Amplimite HD20 series connector comes with tin-plated steel shell, black glass filled polyester housing and tin-plated solder tail.
- UL94V-0 Flammability rating
- 6A Current rating
- 5000MR Insulation resistance
- -55 to 105°C Operating temperature range
Industrial
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 1-338168-2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| One Page Summary EN | |
| Drawing EN | |
| Manufacturer Catalogue EN | |
| 3D Product Image EN | |
