| ₹ 217.67 includes GST and import duties. | |
| B2B customers can avail ₹ 33.19 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

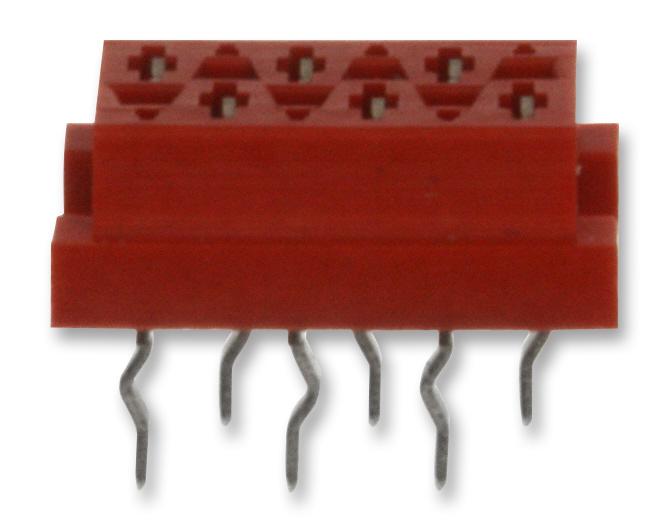

The 1-215079-6 is a 16-position 1.27mm Centreline vertical shrouded Female-on-Board Connector with tin over nickel-plated phosphor bronze dual beam contacts and red GF polyester PBT housing. The Micro-MaTch series wire connector is suitable for mass termination of 28AWG (0.08 to 0.09mm²) ribbon cable. The Micro-MaTch contact helps prevent fretting corrosion, the traditional failure mode in tin-plated connections. Relative movements caused by vibrations/thermal expansion between male and female contacts are absorbed by an additional positioning spring in the female part. By preventing movements on the contact spot, a gas tight connection can make the Micro-MaTch contact spring system fretting corrosion resistant.
- Low profile
- Gas tight connections
- Fretting corrosion resistant
- Full range of application tooling from hand tool to fully automated equipment
Audio, Communications & Networking, Wireless, Imaging, Video & Vision
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 1-215079-6 |
| Quantity | Each (Supplied on Cut Tape) |
| Manufacturer Catalogue EN |  |
| Technical Data Sheet EN | |
| 3D Product Image EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 213.32 |
| 3-5 | ₹ 211.14 |
| 5-10 | ₹ 206.79 |
| 10+ | ₹ 202.43 |
Bulk discount will be automatically applied during checkout based on quantity.
