| ₹ 1289.61 includes GST and import duties. | |
| B2B customers can avail ₹ 196.67 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

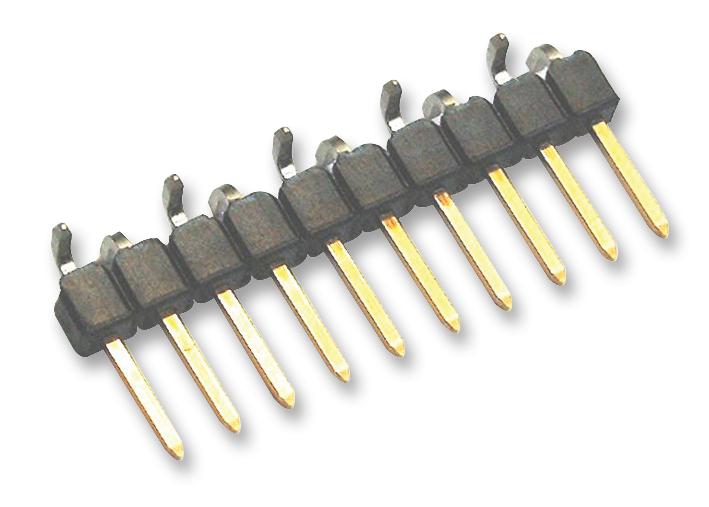

The TE Connectivity AMPMODU Mod II breakaway pin headers provide a comprehensive solution for popular connection standard. These headers can be conveniently broken to any size to ensure maximum versatility and are available in straight and right angle. Mod II breakaway headers are compatible with mating receptacles assured through a range of pin lengths and plating options. Pin headers are offered for surface mount, press fit action pin and standard through hole solder types.
- Comprehensive single and double row connector system
- Current rating 3A max per contact
- Pitch size is 2.54mm
- Operating temperature range -55°C to +105°C
- Contact resistance of 20mohm
- Insulation resistance of 1000Mohm
- Tin and gold plated contacts available
- Features 0.63mm posts with mating receptacles
Industrial
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 1-1241150-0 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| 3D Product Image EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1263.82 |
| 3-5 | ₹ 1250.92 |
| 5-10 | ₹ 1225.13 |
| 10+ | ₹ 1199.34 |
Bulk discount will be automatically applied during checkout based on quantity.
