Description
Amimon CONNEX Nano Overview

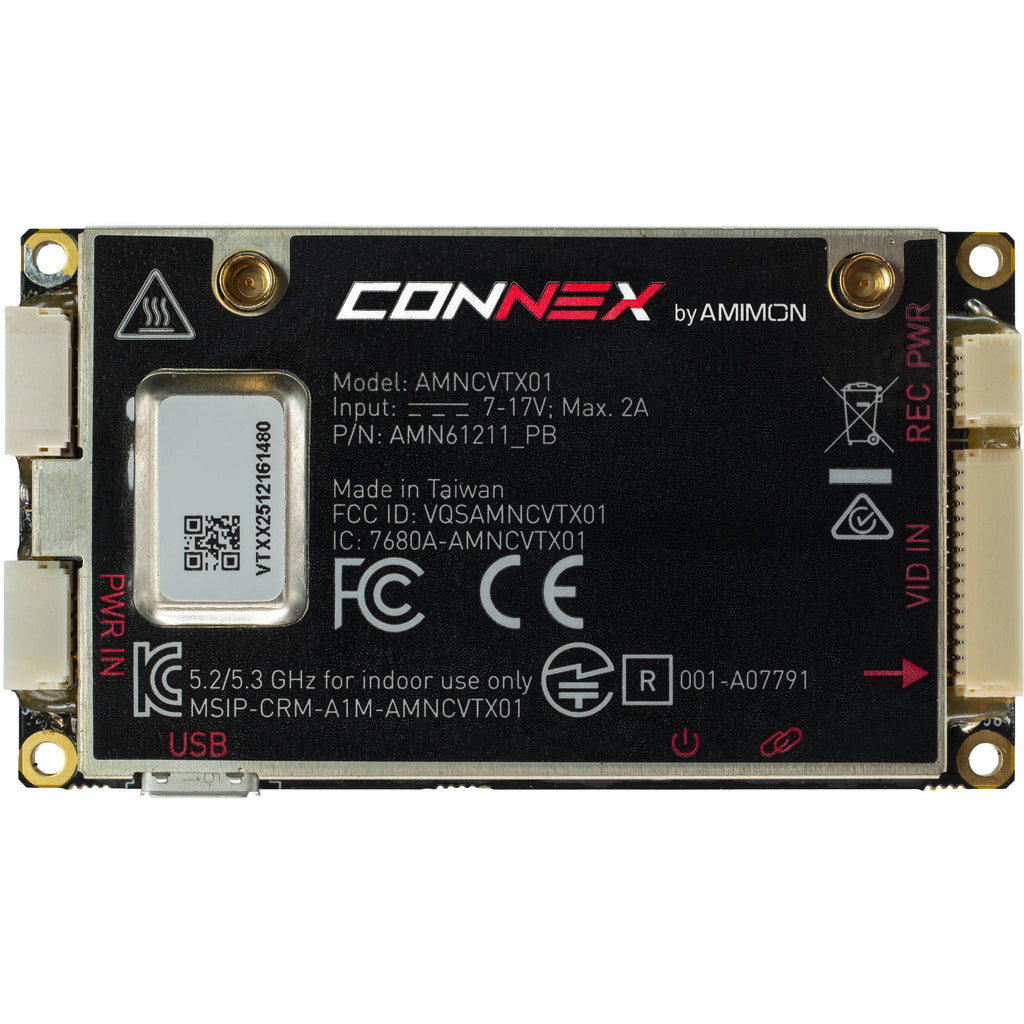

Made for use with the CONNEX Nano camera and receiver (both not included) as part of the CONNEX Nano wireless video system, the Amimon CONNEX Nano TX Transmitter is designed to transmit a 720p/60 video signal from a mounted CONNEX Nano camera to the Nano receiver. The transmitter sends video up to 1000' away via a 5 GHz RF signal using its two 2 dBi antennas. The compact transmitter can conveniently mount on your fixed structure or unmanned vehicle using four built-in edge threaded holes.
Additional Features
- Able to function within environments containing Wi-Fi and 5 GHz cordless phones
- Range can be extended via optional directional antennas if needed
- OSD menu operation via RX
- Manage via the CONNEX Nano Manager app for Windows
Amimon CONNEX Nano Specs
General
| Compatibility | Amimon CONNEX Nano |
Inputs / Outputs
| USB I/O | 1 x Micro-USB Female Output |
Power
| Power Source | Proprietary Interface |
| DC Input Power | 7 to 17 VDC |
| Power Consumption | 4.1 W |
Environmental
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | 14 to 167°F / -10 to 75°C |
Physical
| Mounting | 4 x Edge Threaded Holes |
| Material of Construction | FR4 PCB |
| Cable Length | Not Specified by Manufacturer |
| Dimensions | 2.8 x 1.4 x 0.3" / 70 x 36.5 x 7.2 mm |
| Weight | 1.1 oz / 32 g |
