| ₹ 584813.43 includes GST and import duties. | |
| B2B customers can avail ₹ 89184.05 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

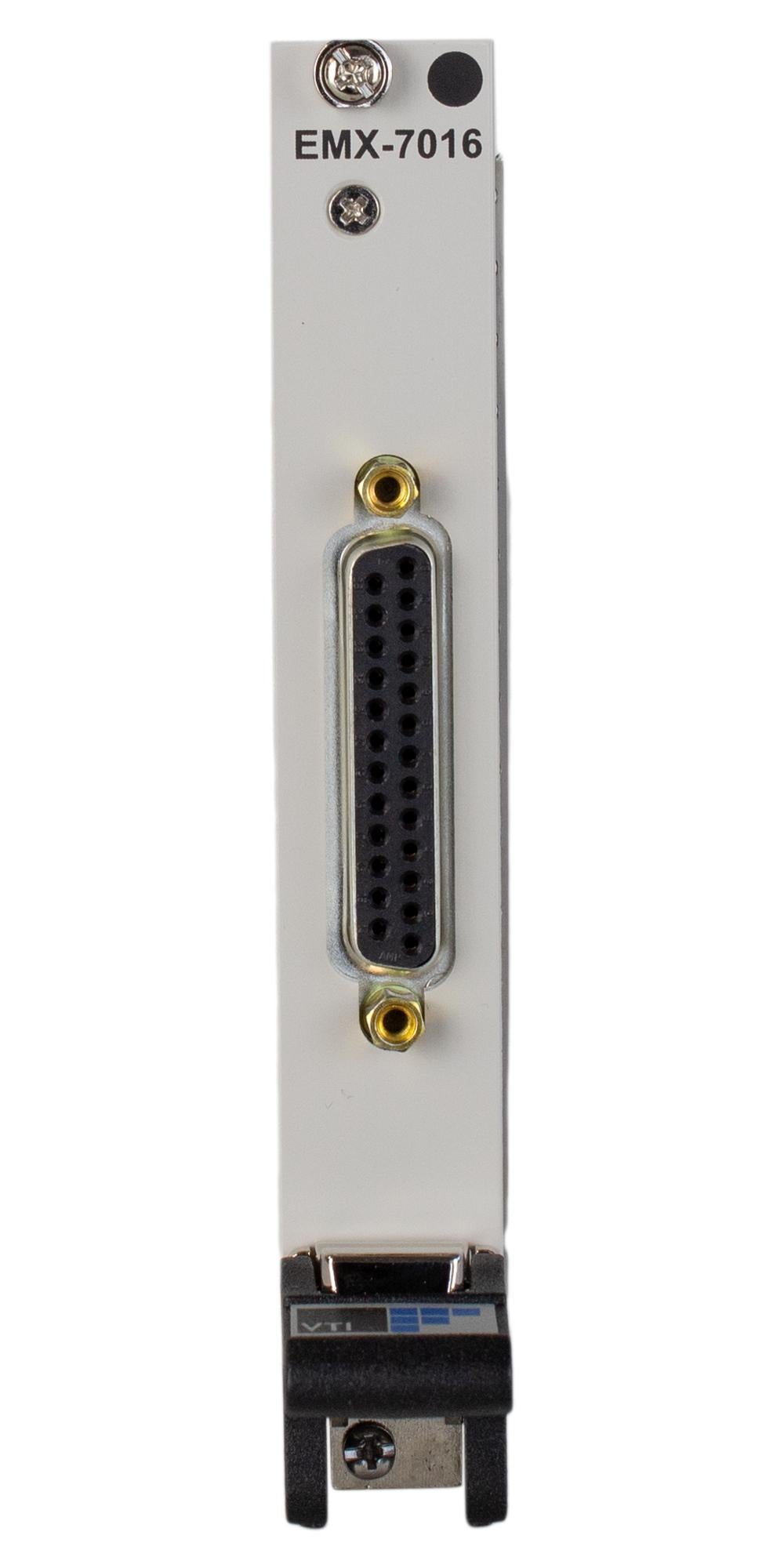

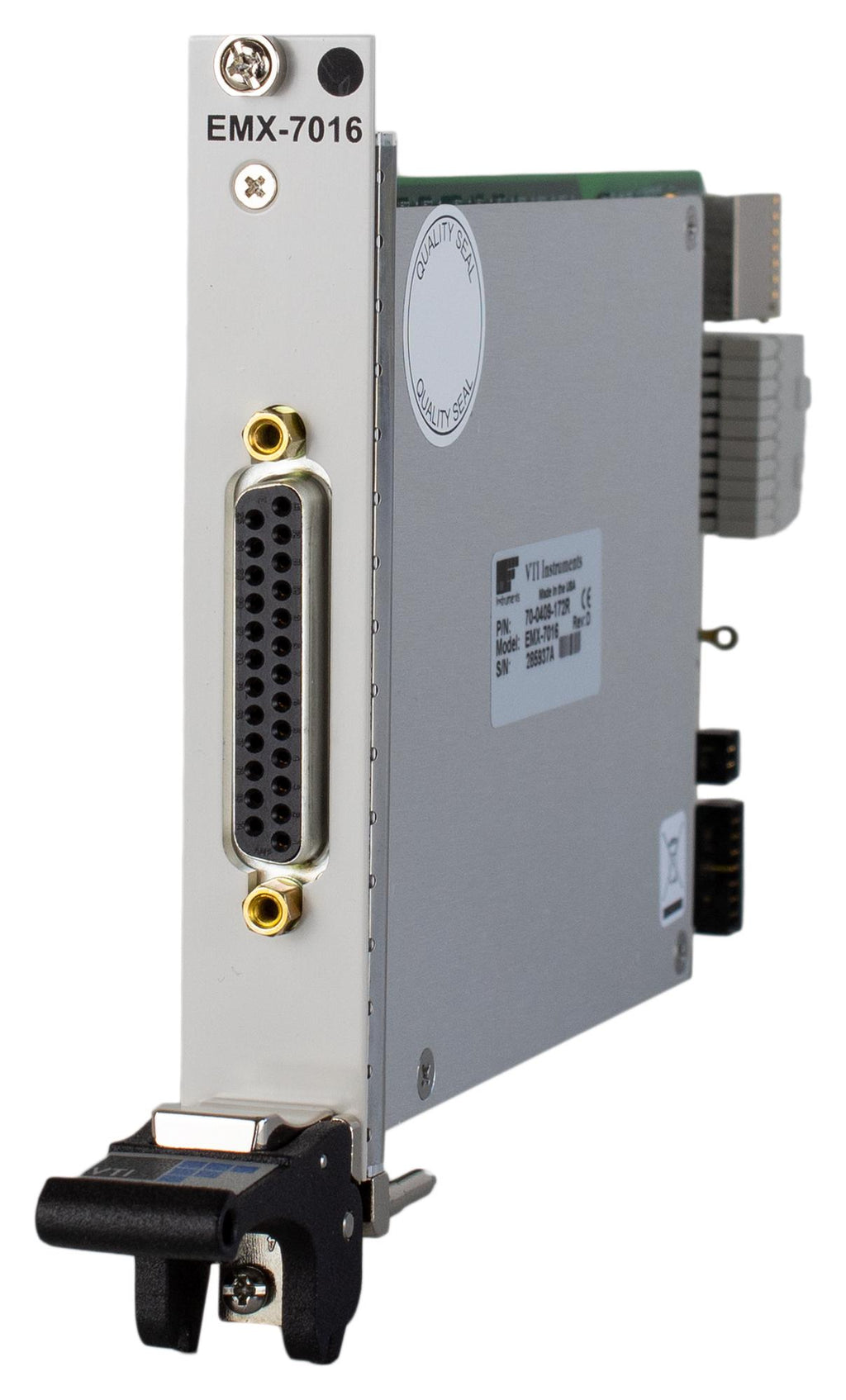

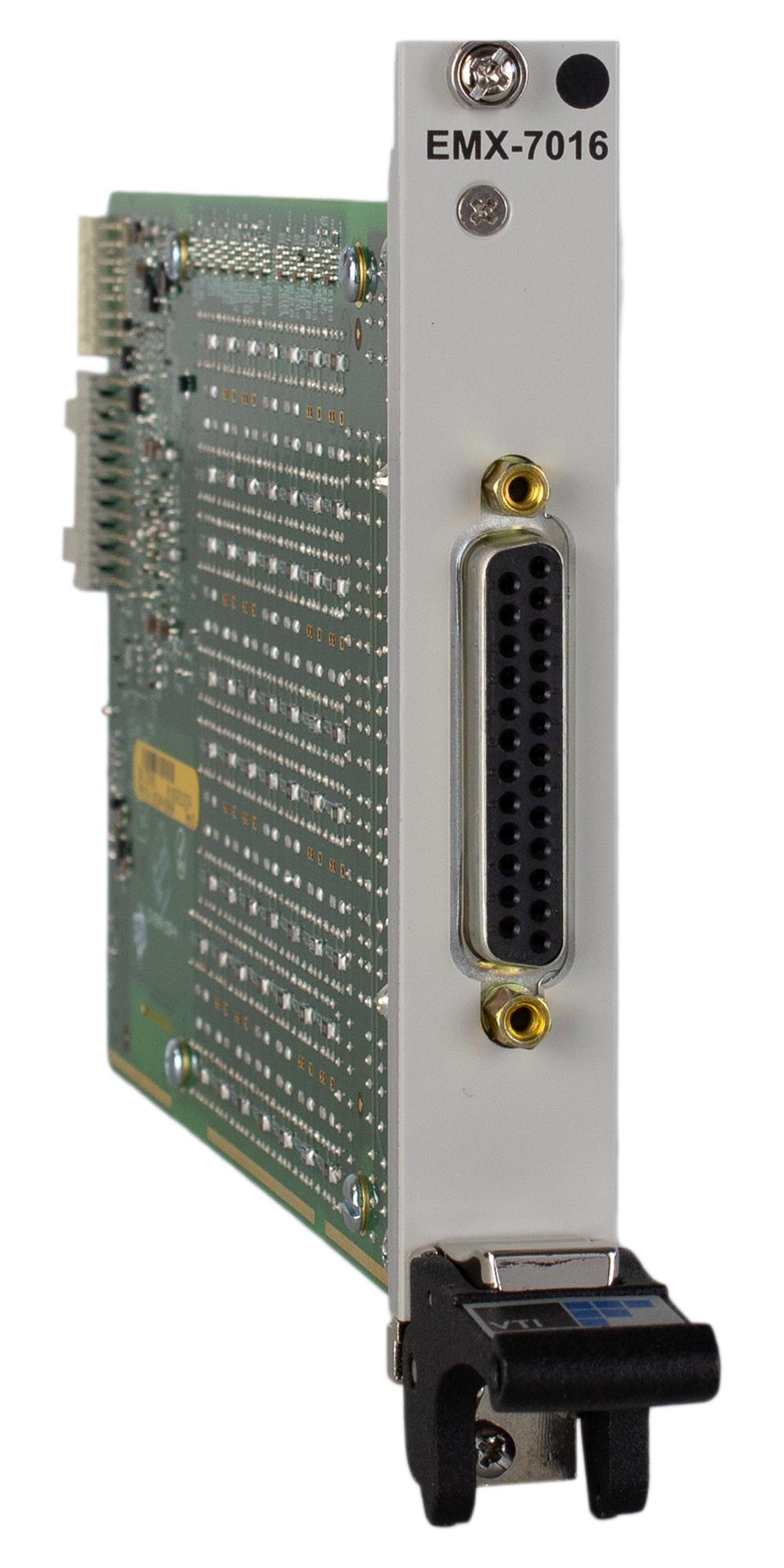

EMX-7016 is a EMX-7000 series PXIe precision programmable resistor ladder module provide four independent channels of programmable resistors, each with four decades per channel. It is designed for applications such as resistance temperature detectors (RTD) or other resistance-based sensor simulation, process control, Automated Test Instruments (ATE) calibration, and controlled loading of device under test (DUT). Ideal for general purpose applications not requiring ultra high accuracies.
- 100 � 1,638,300 ohm precision programmable resistor ladder card
- 100 ohm resistance increments
- 0.25W power
- ? ±25?V thermal offset
- Independent sense feedback
- Parallel and series operation
- Dynamic soft front panel
- IVI-COM, IVI-C, LabVIEW� drivers
- 3-year warranty
Notes
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Product details
Other details
| Brand | AMETEK PROGRAMMABLE POWER |
| Part Number | 70-0409-172R |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 573117.16 |
| 3-5 | ₹ 567269.03 |
| 5-10 | ₹ 555572.76 |
| 10+ | ₹ 543876.49 |
Bulk discount will be automatically applied during checkout based on quantity.
