American DJ VIZI Beam 12RX High-Powered Moving Head Beam

Bright 260W Philips Platinum 12R MSD

Razor Sharp 2°

14 Dichroic Colors + White (Indexable)

Color Wheel, Split Colors (CTO, CTB, UV)

ADJ Vizi Beam 12RX Sneak Peek

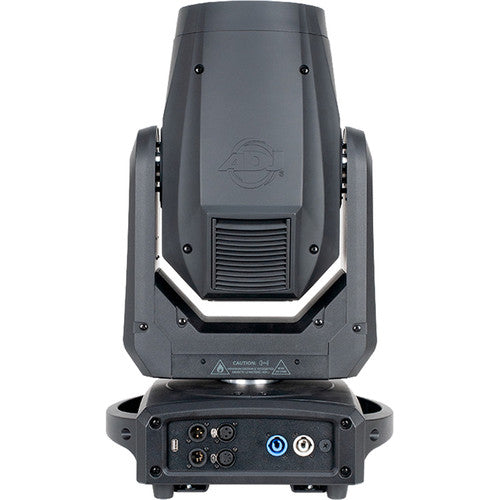

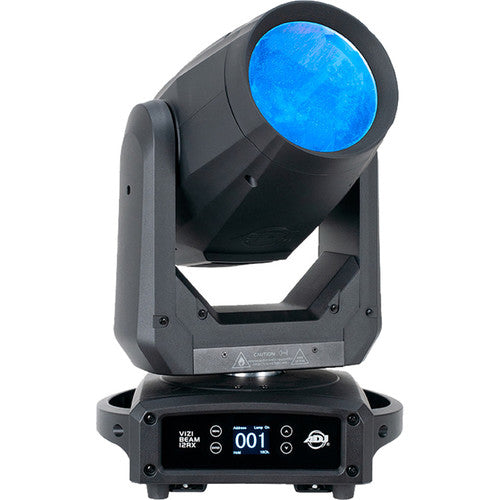

The American DJ Vizi Beam 12RX  is an intelligent, high-powered moving head beam fixture that offers a wide selection of dynamic colors and effects to energize your dance floor or live stage productions. The unit utilizes a 260W Philips Platinum 12R LL MSD discharge lamp and produces a razor-sharp 2° beam of light, making it well suited for a concert tour, a theater production, festival stage applications, or large church installations.

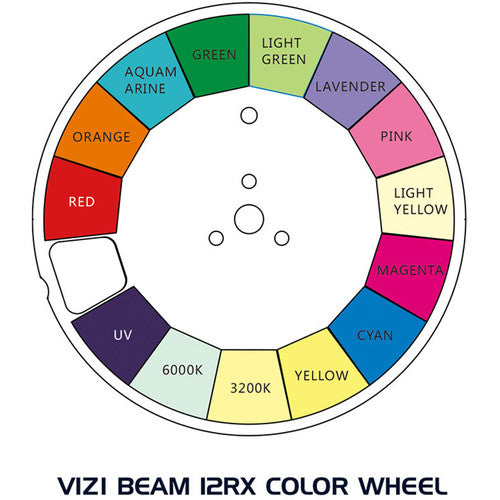

The Vizi Beam 12RX features a color wheel with 14 dichroic colors plus white and includes CTO, CTB, and UV filters for broad selection of colors and tones. Other notable features include 16 gobos + open (with gobo indexing), two rotating prisms (6-facet linear & 24-facet circular), and a frost filter for wash effects. The 12RX offers 2 DMX modes (14 or 16 channels) and RDM control options. It has 3-pin and 5-pin DMX in/out and PowerLock in/out connections to daisy-chain data and power from one fixture to the next. The onboard color display utilizes a 4-button internal menu system. The Vizi Beam 12RX includes an Omega bracket and locking power cord.

• Light Source: 260W Philips Platinum 12R LL MSD
• Color Temperature: 7800K
• Colors: 14 dichroic + white (with CTO, CTB, and UV)
• Beam Angle: 2°

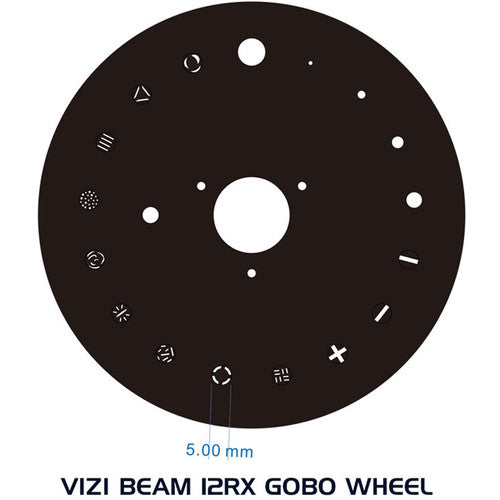

• Gobo Wheel: 16 static gobos + open (4 beam reducer gobos)
• Electronic dimming from 0 to 100%
• Motorized focus (16-bit fine focus)
• Frost filter + wash effect
• Rotating, 6-facet linear and 24-facet circular
• Various strobe speeds
• Pan: 540° (plus 16-bit fine pan)
• Tilt: 270° (plus 16-bit fine tilt)
• Control Modes: DMX512, RDM, or internal programs
• DMX Channel Modes: 14 / 16 channels
• 4-button LCD DMX display
• 3- and 5-pin DMX
• Universal Power: 120/240 VAC
• Includes Omega brackets and locking power cord



Light Source	260 W Philips Platinum 12R LL MSD Discharge Lamp (6000 Hours) Color Temperature: 7800K
Beam Angle	2°
Focus	High-Quality Glass Lens Motorized Focus + 16-Bit Fine Focus
Color	14 Dichroic Colors + White (Includes CTO, CTB, and UV) Indexable Color Wheel for Split Colors
Gobos	16 Static Gobos + Open (4 Gobos Are Beam Reducers) Gobo Shake Effect
Prism	2 x Rotating; 6-Facet Linear and 24-Facet Circular
Effects	Dimming: Electronic 0 to 100% Frost: Frost Filter for Wash Effects Various Strobe Speeds
Control	DMX Channel Modes: 14/16 Channels Color LCD Display with 4-Button Function Menu Control Mode: DMX512, RDM, or Internal Programs 0-100% Smooth Dimming Various Strobe Speeds USB Firmware Update Port With Wired Digital Communication Network
Connectors	DMX Connections: 3-Pin and 5-Pin XLR In/Out (Data Link Max: 32 Fixtures) Power Connections: PowerLock In/Out to Daisy Chain Power
Power	Multi-Voltage Operation: 100 to 240 VAC, 50/60 Hz Max Power Consumption: 384 W (at 120 V), 371 W (at 230 V)
Dimensions (L x W x H)	10.0 x 13.8 x 22.3" / 25.3 x 35 x 56.6 cm
Weight	39.7 lb / 18 kg
