Description

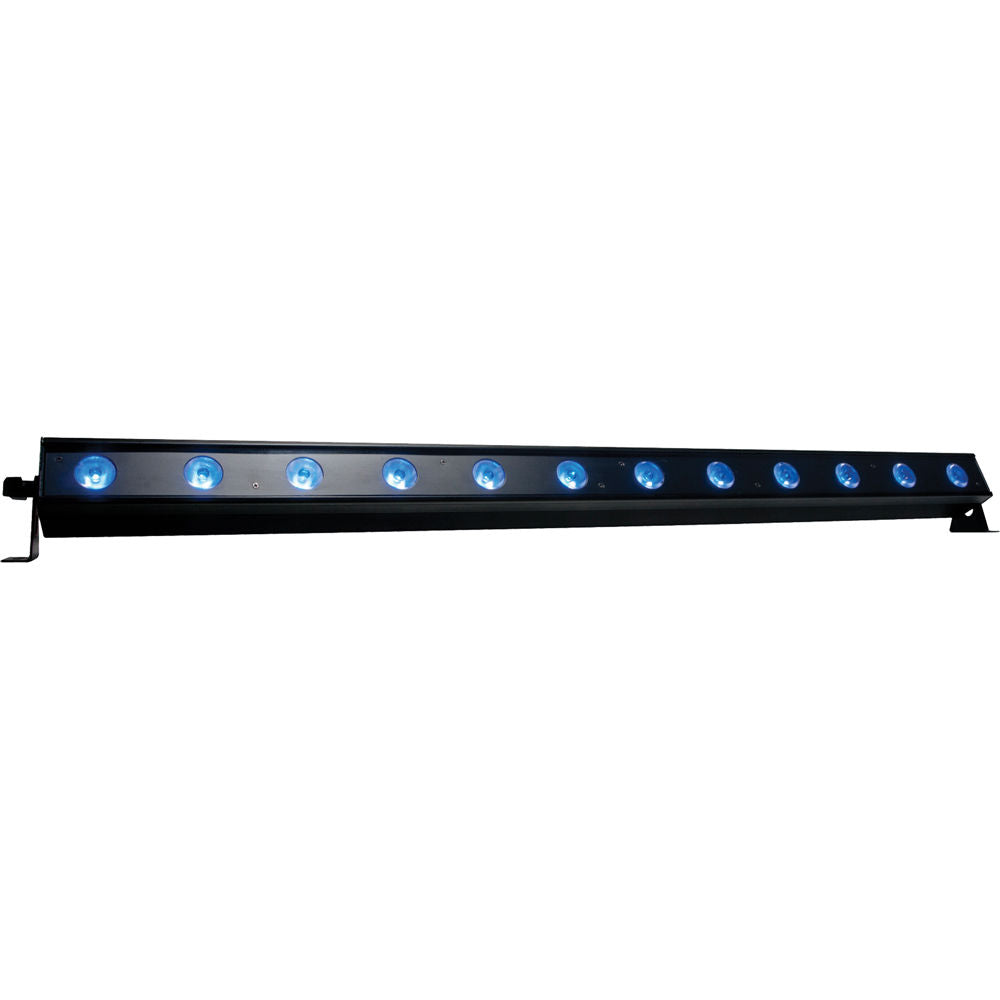

American DJ Ultra Hex Bar 12 Overview
Lighting designers in need of a bright, linear LED light strip should check out the American DJ Ultra HEX Bar 12, a 40" versatile LED linear fixture that has twelve 10W, 6-in-1 HEX LEDs (RGBAW+UV). The 40? beam angle makes it especially useful for wide washes. And its dual mounting brackets also function as floor stands, making it ideal for uplighting applications.
The fixture utilizes American DJ's patent-pending Quick Align system, featuring end-locking magnets and enabling multiple HEX bars to be easily linked end to end for seamless output with no breaks of color. You can daisy-chain up to 7 units together via the fixture's built-in IEC in/out power connectors. The Ultra HEX Bar 12 is compatible with the American DJ RFC, an easy-to-use wireless infrared remote. Alternatively, the fixture may be operated via a DMX controller or the unit's built-in programs. A power cable and two mounting brackets are included.
- Ultra bright, 40" indoor Linear Bar with 12 x 10W Ultra bright HEX (RGBWA + UV: 6-IN-1) LEDs
- Smooth RGBAW+UV color mixing
- Great as an architectural wall wash or for performance stages where traditional stage lighting emits a lot of heat onto performers
- 5 DMX Channel Modes: 6/7/8/12/36 channels
- 6 operational modes: Auto Run, Program, Sound Active, RGBWA + UV Dimmer, Static Color, and DMX512
- Patent-pending Quick Align (Magnetic)
- Beam Angle: 40?
- Flicker-free operation (No flickering on camera)
- Refresh rate: 2.88 kHz
- 64 built-in color macros
- 5 selectable dim curves (Standard, Stage, TV, Architectural, and Theatre)
- LED pulse and strobe effect
- 2x8 character LCD Display
- Electronic dimming: 0 to 100%
- Includes mounting brackets to mount on a wall or set on the ground
- Compatible with the ADJ RFC remote with RF control up to 30' (sold separately)
- Long-life LEDs (rated at approximately 50,000 hours)
- Linkable: DMX via 3-pin XLR cable; power via IEC daisy-chain power link (up to 7 Ultra Hex Bar 12 fixtures)
Items Included

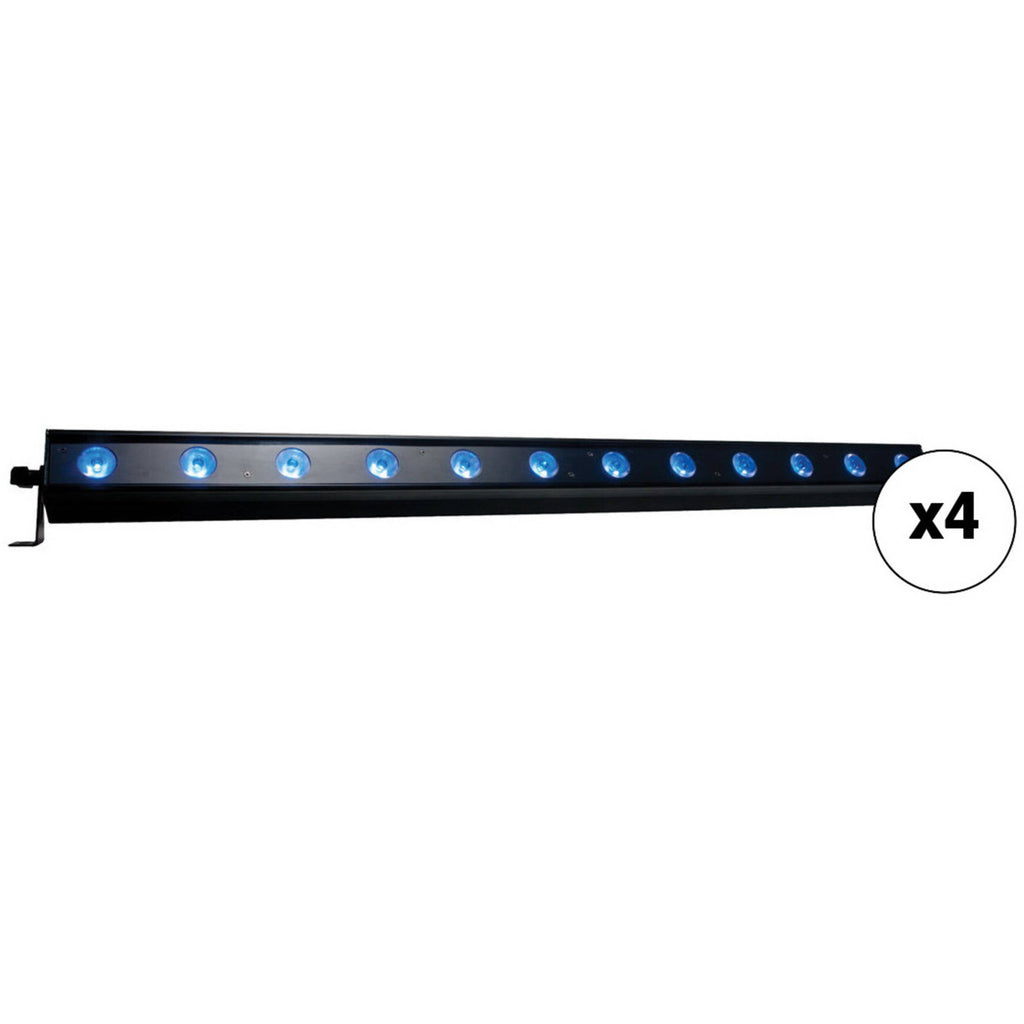

- 4 x American DJ Ultra Hex Bar 12 LED Linear Fixture
- AC Cable
- 2 x Mounting Brackets
- Limited 1-Year Manufacturer Warranty
- Limited 2-Year Manufacturer Warranty (LEDs)
Additional Resources
American DJ Ultra Hex Bar 12 Specs
| Fixture Type |
Linear/Bar Light
|
| Light Source |
12x Color/UV LED - 10 W
|
| Colors |
Blue, Green, Red, Ultraviolet, White
|
| Beam Angle |
40?
|
| Control Protocols |
DMX512, Internal
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
90 W
|
| Mounting |
Mounting Bracket
|
| Fixture Type |
Linear/Bar Light
|
| Light Source |
12x Color/UV LED - 10 W
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Red, Ultraviolet, White
|
| Photometrics |
109 fc / 1172 Lux at 13.1' / 4 m
|
| Beam Angle |
40?
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic, 0 to 100% with 5 Dimmer Modes
|
| Operating Modes |
Automatic, Program, Static Color
|
| Gobos |
No
|
| Refresh Rate |
2.88 kHz
|
| Control Protocols |
DMX512, Internal
|
| DMX Channel Modes |
5 Mode(s):
6 / 7 / 8 / 12 / 18-Channel |
| Display / Controls |
LCD
|
| Remote Control |
RF Remote (with Optional Equipment)
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output |
| Wireless |
2.4 GHz Radio/RF
|
| Wireless Range |
30' / 9.1 m (with Optional Equipment)
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x IEC
Output: 1x IEC Cord Length: 5.9' / 1.8 m |
| Fuse |
No
|
| Power / Current Consumption |
90 W
|
| Power Linking |
12 Units
|
| Environmental Resistance |
No
|
| Mounting |
Mounting Bracket
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan
|
| Dimensions |
40.25 x 4.75 x 2.75" / 1022.35 x 120.65 x 69.85 mm
|
| Weight |
11 lb / 5 kg
|
| Package Weight |
14 lb
|
| Box Dimensions (LxWxH) |
41 x 7.25 x 5.5"
|
