Description
From Manufacturer

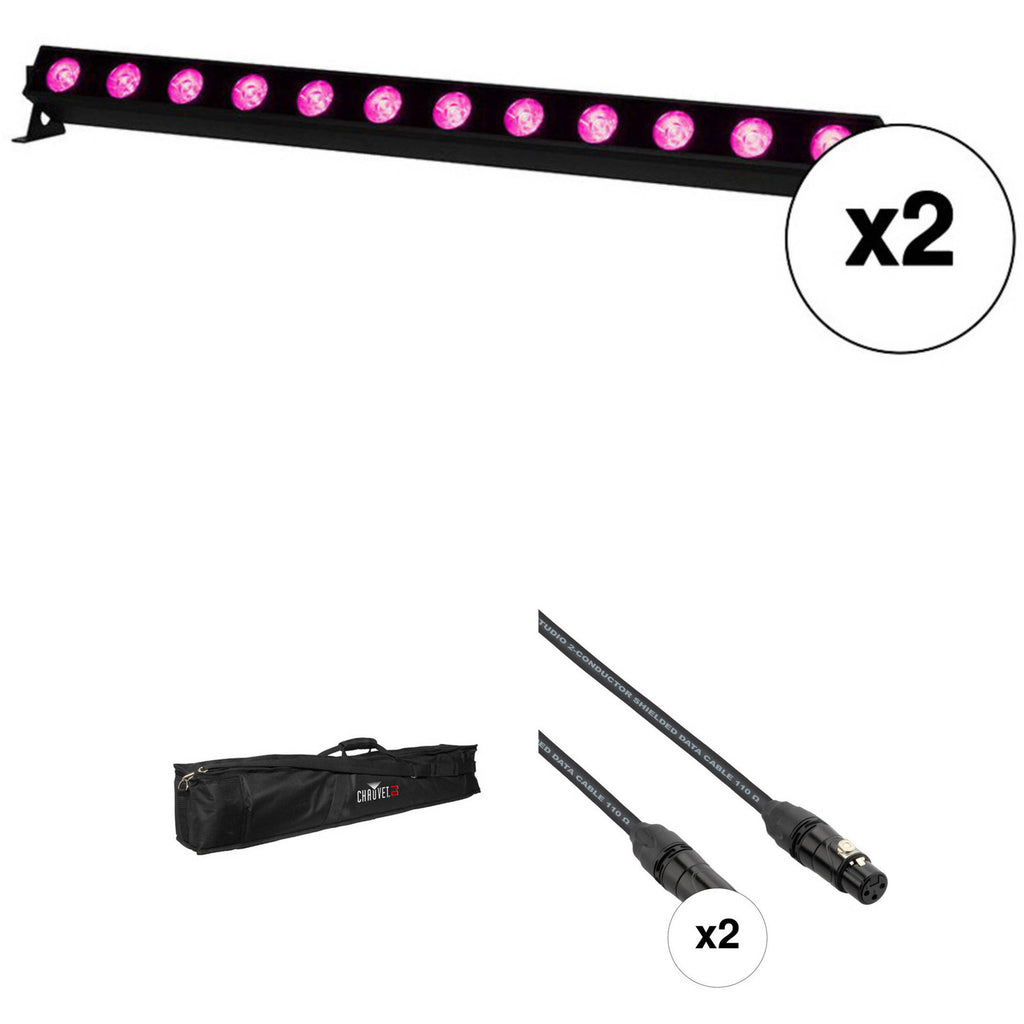

Create striking wash effects with this Kit which combines a pair of American DJ UBL12H RGBAL+UV Linear Light Bars with a dual-light gear bag and two 3-pin DMX cables.

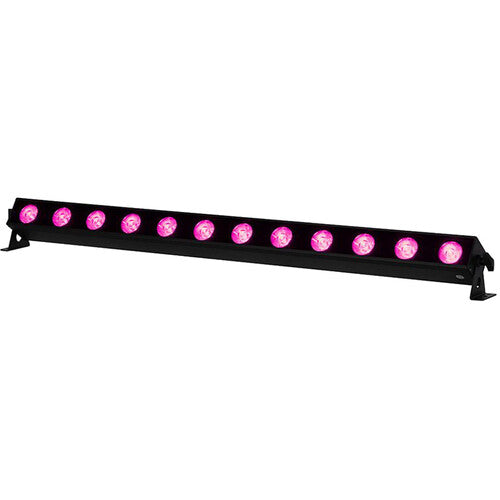

Craft captivating displays on walls, floors, and ceilings with the American DJ UBL12H, a 42" versatile LED linear fixture with twelve 20W, 6-in-1 HEX LEDs (RGBAL+UV) well suited for uplighting, downlighting, stage washing, and dancefloor illumination. The inclusion of the lime LED chip allows for a high CRI of >90, which ensures the fixture?s output will render colors accurately when used to illuminate scenery, d?cor, and people.
The LEDs are arranged in independently controllable pairs or groups of three, allowing for smooth color mixing, while creating of a wide variety of hues and shades. Additionally, the fixtures can also be used to generate white light output with color temperature variable between 2300 and 9900K. For even more versatility, the UV element allows the creation of a "blacklight" effect, causing white and neon colored d?cor and clothing to glow when used alone. The UBL12H comes complete with an indoor locking power cord, UC-IR24 remote, and a 20? diffusion filter.

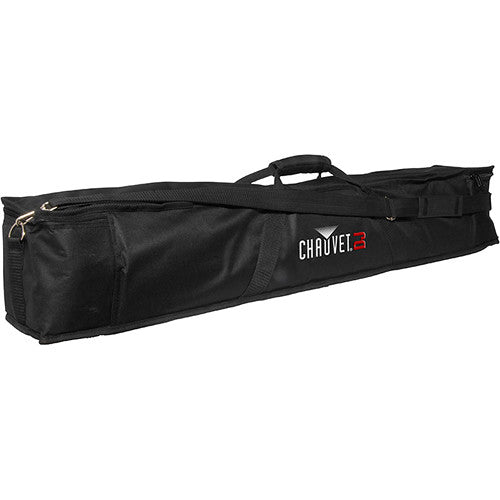

Store, transport, and protect two LED strip light fixtures with the black CHS-60 VIP Gear Bag from Chauvet. The bag is padded on all sides and includes a padded divider for creating two interior compartments ? one for each light. For easy access, the bag opens on three sides with double zipper pulls. Carry the 60 VIP Gear Bag by the connecting top strap handles, or wear with the removable, padded shoulder strap.

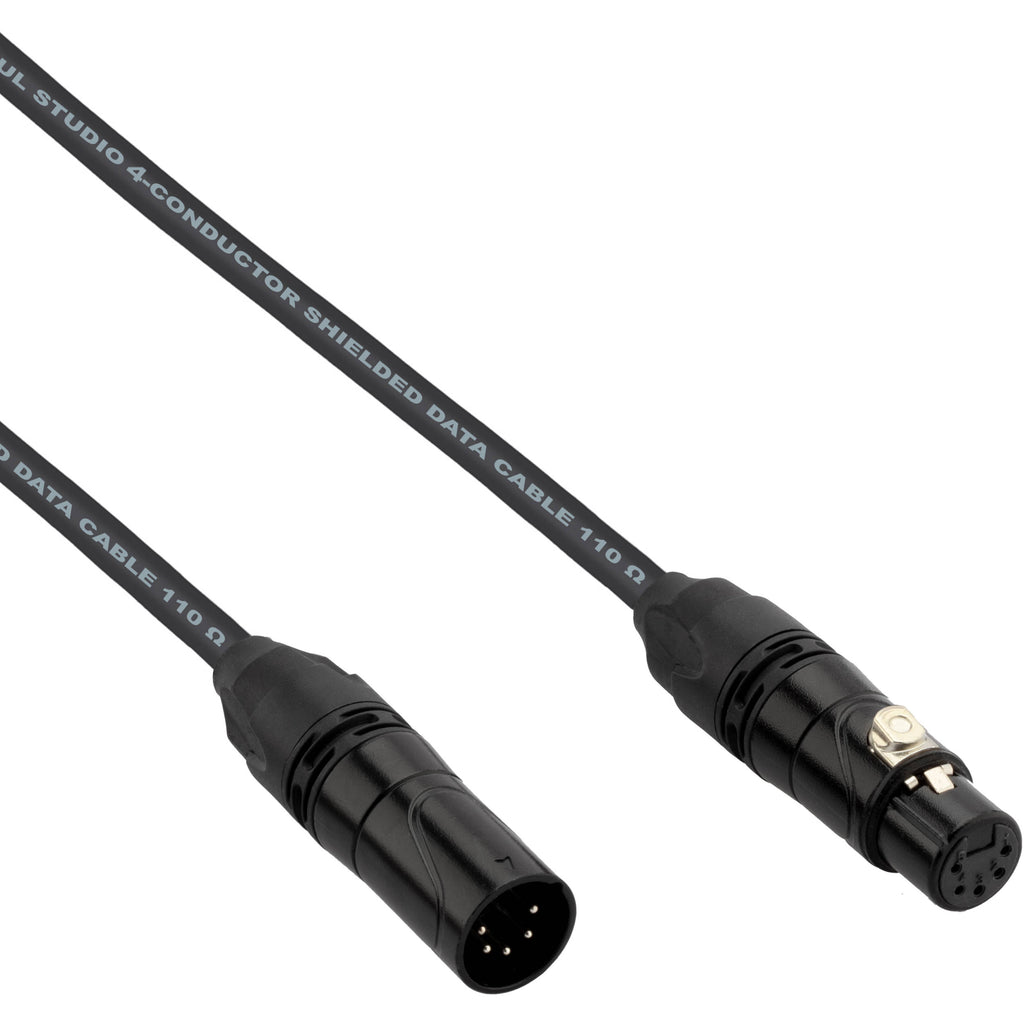

The 25' DMX55P-025-S Studio Series 5-Pin DMX Cable from Kopul is engineered for accurate and trouble-free DMX data transfer for stage, theater, live concerts, or DJ applications. The cable features nickel-plated 5-pin XLR connectors with chuck-style strain relief. The 24 AWG oxygen-free copper, braid and foil shielding, and PE insulation result in a cable with professional conductivity and interference rejection. It assures a pure transfer of DMX and other digital signals. A PVC jacket provides durability while maintaining flexibility.
Items Included
- 2 x American DJ UBL12H RGBAL+UV Linear Light Bar with Diffusion Filter (12 LEDs)
- AC Cable
- UC-IR24 Remote Control
- 2 x Mounting Brackets
- Limited 1-Year Manufacturer Warranty
- Limited 2-Year Manufacturer Warranty (LEDs)
- CHAUVET DJ CHS-60 VIP Gear Bag for Two LED Strip Fixtures (Black)
- Padded Divider
- Padded Shoulder Strap
- Limited 1-Year Manufacturer Warranty
- 2 x Kopul DMX55P-025-S Studio Series 5-Pin DMX Cable (25')
- Limited 2-Year Manufacturer Warranty
Additional Resources
American DJ UBL12H RGBAL+UV Linear Light Bar with Diffusion Filter (12 LEDs)
| Fixture Type |
Linear/Bar Light
|
| Light Source |
12x Color/UV LED - 20 W
|
| Colors |
Blue, Green, Lime, Red, Ultraviolet
|
| Beam Angle |
17?
20? (with Filter) |
| Control Protocols |
DMX512, Internal
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
61 W
|
| Mounting |
Mounting Bracket
|
| Fixture Type |
Linear/Bar Light
|
| Light Source |
12x Color/UV LED - 20 W
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Lime, Red, Ultraviolet
|
| Beam Angle |
17?
20? (with Filter) |
| Shutter / Strobe |
Electronic
|
| Dimming |
Electronic, 0 to 100% with 6 Dimmer Modes
|
| Operating Modes |
Automatic, Program, Sound-Active, Static Color
|
| Gobos |
No
|
| Refresh Rate |
1.9 kHz
|
| Control Protocols |
DMX512, Internal
|
| DMX Channel Modes |
7 Mode(s):
6 / 11 / 13 / 16 / 36 / 43 / 46-Channel |
| Display / Controls |
OLED / 4-Button
|
| Remote Control |
IR Remote (with Included Equipment)
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output |
| Wireless |
No
|
| Wireless Range |
32.8' / 10 m (with Optional Equipment)
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON Plug Type: NEMA 5-15 Cord Length: 5.9' / 1.8 m |
| Power / Current Consumption |
61 W
|
| Power Linking |
17 Units at 120 VAC
32 Units at 230 VAC |
| Environmental Resistance |
No
|
| Mounting |
Mounting Bracket
|
| Included Accessories |
1x Power Cable
1x Filter |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Certifications |
CE, FCC, cETLus
|
| Dimensions |
42.6 x 4.2 x 2.96" / 1082.04 x 106.7 x 75.18 mm
|
| Weight |
7.5 lb / 3.4 kg
|
| Package Weight |
9.68 lb
|
| Box Dimensions (LxWxH) |
