Description

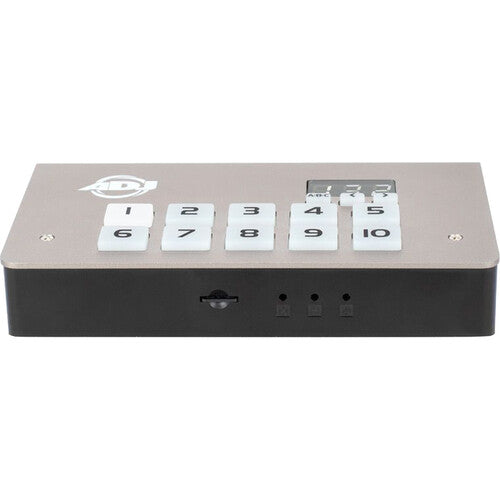

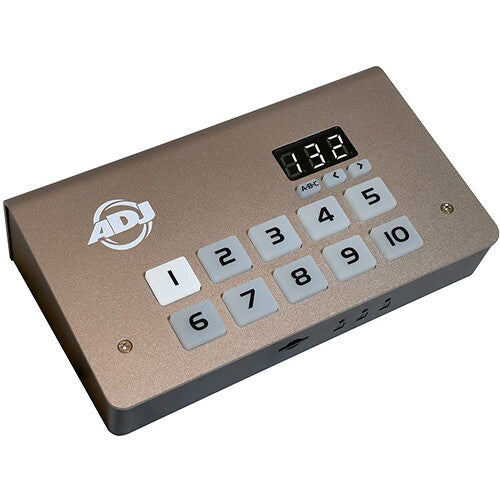

American DJ MYDMX5 Overview

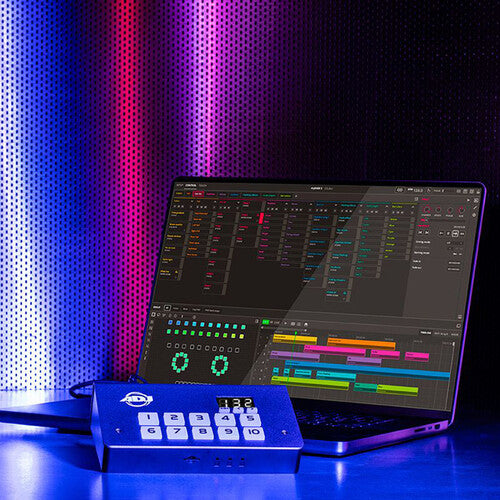

American DJ continues expanding their line of reliable DMX devices with the myDMX 5 Lighting Control Software/Hardware System. Elevate your DMX lighting control with this cutting-edge controller/software that features an extensive library of over 20,000 fixtures, drag-and-drop functionality with an innovative super scene timeline, 3D visualizer, 2D position view, a dynamic live mixer, and seamless control via app using your iPhone, iPad, or Android devices. The myDMX 5 is a great solution for a lighting designer in need of simplicity while being able to create stunning synchronized light shows.
Easy Lighting Control

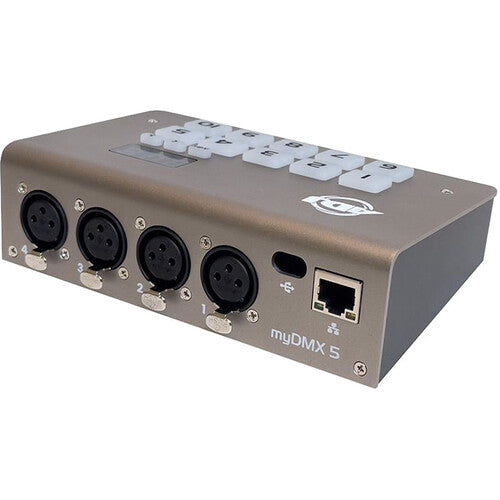

The myDMX 5 is a powerful yet simple-to-use DMX control software/hardware featuring up to two DMX universes, which gives you a total of 1024 DMX channels. Compatible with both Windows and Mac systems, the myDMX 5 has two 3-pin DMX and two 5-pin DMX outputs. Users can upgrade to up to 2048 channels that can be separately purchased if needed.
A Myriad of Enhancements

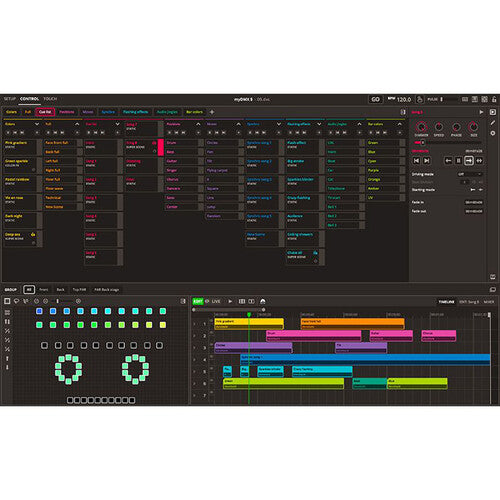

This version 5 offers the ability to combine different scenes into the timelines of a super scene to easily achieve complex and perfectly timed scenes. The live playback lets you control dimmer, speed, phase shift, and size to play your scenes forward, backward, or both ways. The myDMX 5 software also allows you to create impressive effects on any type of channel, and even map them in 2D. Using the live mixer, you can control the dimmers of each group, trigger the strobe or a blinder, or change colors. Other features include music sync to synchronize your show with the music and mapping modes to link any control to your keyboard, MIDI controller, or DMX console. With the myDMX 5, you can even limit or adjust the minimum and maximum dimming of each fixture for the entire show.
App Control
Compatible with iOS or Android, the myDMX 5 Remote app allows you to set up a customized remote controller for your smartphone or tablet, which gives you an easy way to add buttons, faders, color wheels, and more.
Main Features
- Drag-and-drop patch grid

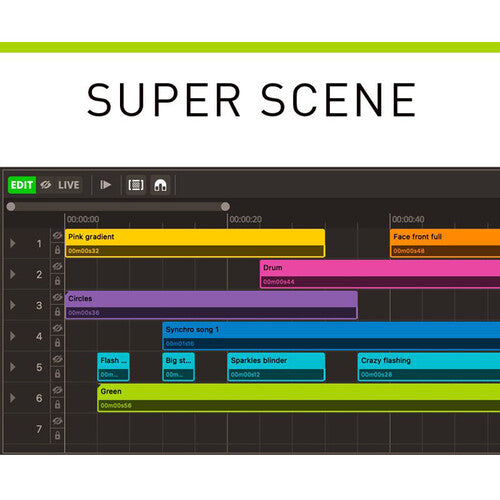

- Drag-and-drop super scene timeline
- 3D visualizer
- 2D position view
- Live mixer for playback
- MIDI control
- 10 buttons for triggering scenes live or standalone
- SD card slot for saving your shows
Additional Information
The myDMX 5's RJ45 port does not output Art-Net.
UPC: 810087372460
In the Box
- American DJ myDMX 5 Lighting Control Software/Hardware System
- DMX Interface
- Limited 2-Year Manufacturer Warranty
Additional Resources
American DJ MYDMX5Specs
Key Specs
| Inputs/Outputs |
2x XLR 3-Pin (DMX) Female Output
2x XLR 5-Pin (DMX) Female Output 1x RJ45 |
| Channels |
1024
|
| Wireless |
Yes
|
| Protocol |
DMX512
|
General
| Inputs/Outputs |
2x XLR 3-Pin (DMX) Female Output
2x XLR 5-Pin (DMX) Female Output 1x RJ45 |
| Channels |
1024
|
| Wireless |
Yes
|
Compatibility
| Protocol |
DMX512
|
| OS Compatibility |
Windows
macOS iPadOS |
| Mobile Operating System Support |
Android
iOS |
Packaging Info
| Package Weight |
0.855 lb
|
| Box Dimensions (LxWxH) |
7 x 6.4 x 2.1"
|
