Description
American DJ LINK Overview
Lighting designers looking for an intuitive and comprehensive lighting control solution for iOS will be impressed with the American DJ Link, a four-universe hardware lighting controller designed for use with the ADJ Airstream LINK iOS app for iPad, well suited for theaters, houses of worship, concerts, clubs, and more. The LINK controller offers several one-to-one controls and provides a feature-rich lighting control platform with an extensive fixture library, making it easy to setup and control different shows and equipment configurations.

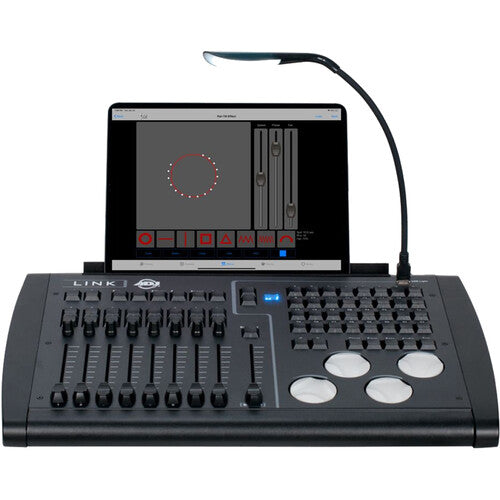

It incorporates powerful tools to allow the easy creation of complex movements and color chase effects, and allows the iPad's memory to be utilized for storing custom scenes and shows that can be quickly re-loaded when required. The software also makes use of the iPad's precise touchscreen interface to facilitate actions such as color mixing and drawing custom movement shapes.
The integrated 2.4 or 5 GHz DSSS Wi-Fi network allows you to undock the iPad and move about the room for true wireless programming. Each of the four 5-pin DIN connectors provides 512 channels of DMX programming for a total of 2048 channels. The LINK's outer casing can be removed, while the included 6 RU rack mount kit allows you to rack the controller in a standard 19" rack mount case. The LINK includes a Gooseneck work light and a power adapter rated for use anywhere in the world.
Controls and Connections
- 6 x General purpose buttons
- 1 x Master control fader (3.9")
- 8 x Control faders (3.9")
- 16 x Page playback buttons above faders
- 8 x Rotary dials with push-in selection above faders
- 1 x Blackout button
- 32 x Instant effect or scene calling buttons
- 8 x Bump / momentary effect buttons
- 4 x Rotary encoder wheels with push-in selection
- 1 x USB 2.0 Type-B port
Additional Benefits
- Wi-Fi and DMX512
- 2.4 and 5 GHz DSSS Wi-Fi Network
- 4 x hardwired, DMX universes
- USB input for gooseneck work light (included)
- Removable outer case for 6 RU rack mounting (rackmount kit included)
- Kensington security device slot
In the Box
- American DJ LINK 4-Universe Wireless DMX Hardware Controller for iPad and Airstream iOS APP
- 4 x Power Adapter Connector (US, Europe, UK, Australia/China)
- Gooseneck LED Light
- USB Cable
- Rackmount Kit
- Limited 2-Year Warranty
Not in the Box
American DJ LINK Specs
| Controls | 6 x General Purpose Buttons 1 x Master Control Fader (3.9" / 100.0 mm) 8 x Control Faders (3.9" / 100.0 mm) 16 x Page Playback Buttons Above Faders 8 x Rotary Dials with Push-In Selection Above Faders 1 x Blackout Button 32 x Instant Effect or Scene Calling Buttons 8 x Bump / Momentary Effect Buttons 4 x Rotary Encoder Wheels with Push-In Selection |
| DMX Channels | 4 x Universes, Hardwired (512 Channels per Universe, 2048 Total Channels) |
| Wi-Fi Compatibility | Built-In 2.4 and 5 GHz DSSS Wi-Fi Network |

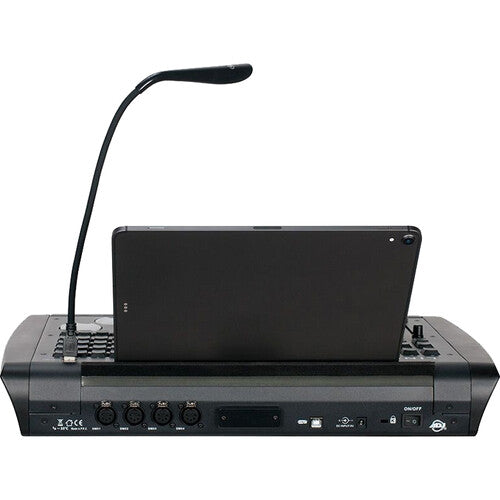

| Connections | 4 x Locking 5-Pin DMX Sockets 1 x USB Type-B 1 x USB Type-A for LED Gooseneck Light 1 x 9 VDC Power Input |
| Rackmount | 6 RU Rack Mount Kit Included |
| Power | Input: 100 to 240 VAC, 50/60 Hz Adapter: 9 VDC |
| Dimensions | 20.2 x 12.9 x 3.6" / 513.1 x 327.7 x 91.4 mm |
| Weight | 15.0 lb / 6.8 kg |
| Package Weight | 21 lb |
| Box Dimensions (LxWxH) | 31.5 x 16.5 x 7.5" |
