Description

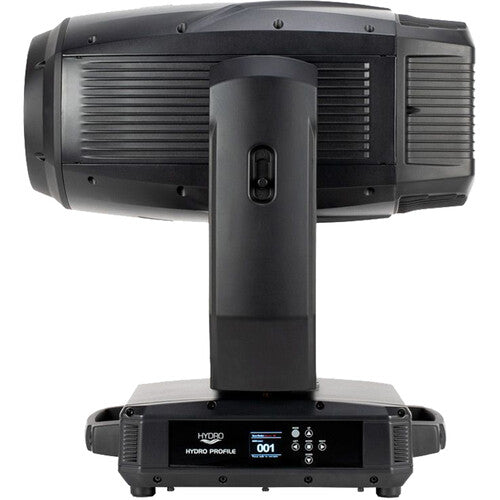

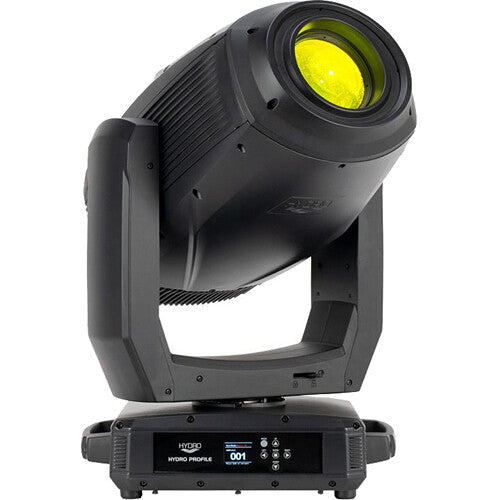

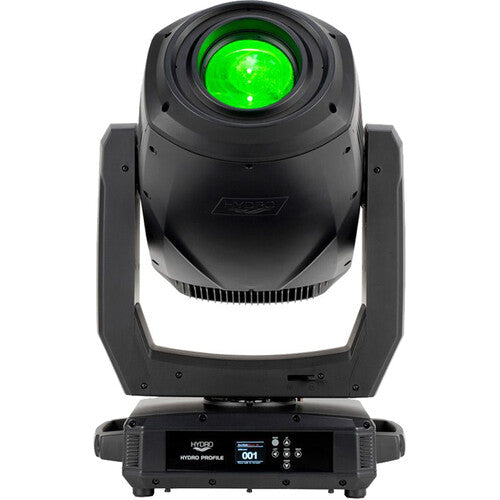

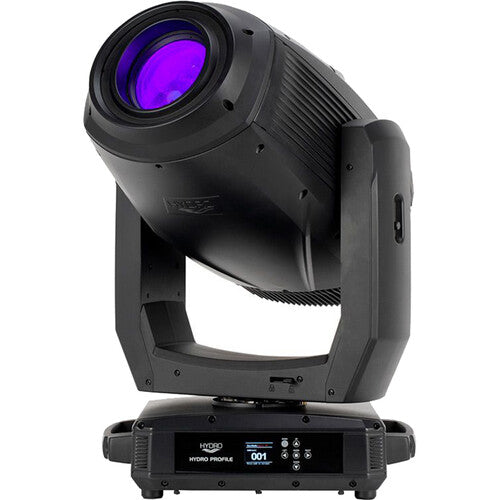

American DJ Hydro Profile Overview
Lighting designers in search of an outdoor-rated, professional-caliber automated luminaire will be impressed with the American DJ Hydro Profile, a bright feature-rich moving head that's well suited for theatrical, concert touring and event production applications. The IP65-rated Profile features a 660W cool-white LED engine, 540° pan and 270° tilt, motorized focus, and a motorized zoom from 6 to 45°.
Other notable features include four rotating framing shutters plus shape rotation, two gobo wheels (7 interchangeable rotating-indexing gobos and 8 static-stamped gobos), a 7-color dichroic color wheel with variable CTO and full CMY color mixing, and two rotating/indexable prisms (one 6-facet linear and one 4-facet circular). It also has two frost effects (heavy frost and light frost) to create soft-edge wash looks. This fixture features six selectable dimming curves as well as numerous built-in effects. For controls, the unit features three DMX channel modes (36, 50, 57) with 5-pin XLR DMX input and output connectors. Multiple units can be daisy-chained to create complex lighting installations. The Hydro Profile includes a power cord and an Omega bracket.
- 660W cool-white LED engine
- 25,000+ lumens
- Colors wheel with 7 dichroic colors and CTB and CRI filters
- Variable CTO
- Full CMY color mixing
- 4 rotating framing shutters plus shape rotation
- 4-facet circular and 6-facet linear rotating prisms
- Includes heavy and medium frost filters
- Animation wheel
- Motorized zoom (6 to 45°)
- Motorized focus
- Motorized iris
- Electronic dimming and strobe
- 7 interchangeable rotating and indexing gobos
- 8 static-stamped gobos
- 3 DMX Channel Modes (36/50/57)
- 6-button full-color 180° reversible LCD menu display
- 3-pin XLR DMX in/out
- Locking in/out power connections
- With Wired Digital Communication Network
- RDM (Remote Device Management)
In the Box
- American DJ Hydro Profile IP65-Rated LED Moving Head
- Power Cord
- 2 x Omega Bracket
American DJ Hydro Profile Specs
| Fixture Type | Moving Head |
| Light Source | 1 x White LED - 660 W |
| Light Source Life Expectancy | 50,000 Hours |
| Colors | Red Green Blue Amber Orange |
| Lumen Output | > 25,000 Lumens |
| Beam Angle | 6 to 45° |
| Shutter / Strobe | Electronic |
| Iris | Yes, Electronic |
| Focus | Motorized |
| Zoom Adjustment | Motorized, 6 to 45° |
| Dimming | Electronic, 0 to 100% with 6 Dimmer Modes |
| Prism | 6-Facet Linear (Rotating) 4-Facet Circular (Rotating) |
| Operating Modes | Automatic, DMX |
| Macros / Programs | 7 x Auto-Program |
| Effects | Frost Filter Strobe (Variable Speed) Gobo Shake |
| Gobos | 7 x Removable Metal Gobo 8 x Fixed Gobo |
| Gobo Size | Outer Diameter: 0.9" / 23 mm Max Image Size: 0.7" / 19 mm Max Thickness: 0.1" / 3.3 mm |
| Refresh Rate | 900 Hz to 25 kHz |
| Tilt Ranges | 270° |
| Pan Ranges | 540° |
| Control Protocols | DMX512, Art-Net |
| DMX Channel Modes | 3 Mode(s): 36 / 50 / 57-Channel |
| Display / Controls | LCD / 6-Button |
| Remote Control | None |
| Mobile App Compatible | No |

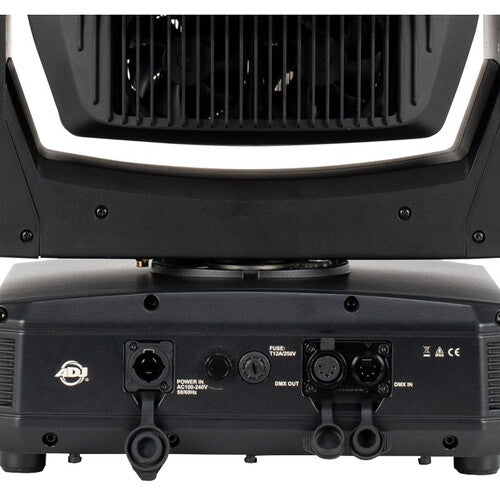

| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x Proprietary Output: None |
| Fuse | None |
| Power / Current Consumption | 1088 W (Max) |
| IP Rating | IP65 |
| Mounting | Omega Bracket |
| Included Accessories | 1 x Power Cable |
| Duty Cycle | None |
| Exterior Color | Black |
| Dimensions | 28.3 x 17 x 12.5" / 71.9 x 43.2 x 31.8 cm |
| Weight | 84.9 lb / 38.5 kg |
American DJ Hydro Profile Reviews
