Description
American DJ Focus Spot 4Z Overview

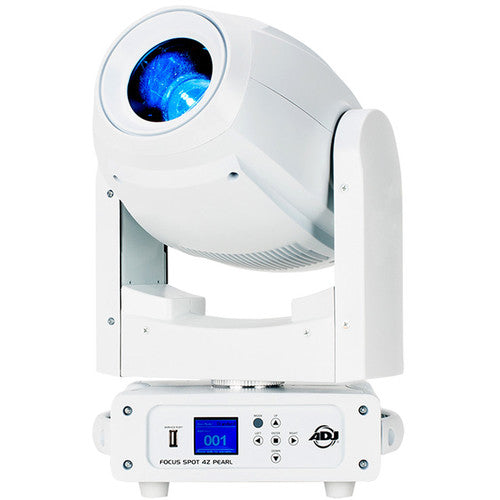

The pearl American DJ Focus Spot 4Z is a 200W moving head spot fixture with motorized focus and zoom, well suited for lighting installations and live performance applications in clubs, theaters, and concert productions. The 4Z features a 200W cool-white LED engine (rated at 50,000 hours), 16-bit fine tilt and pan movement, 16-bit fine dimming resolution, motorized focus, and a motorized zoom from 11 to 22°.

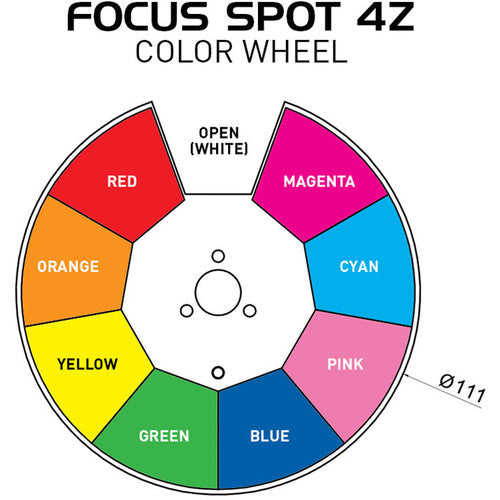

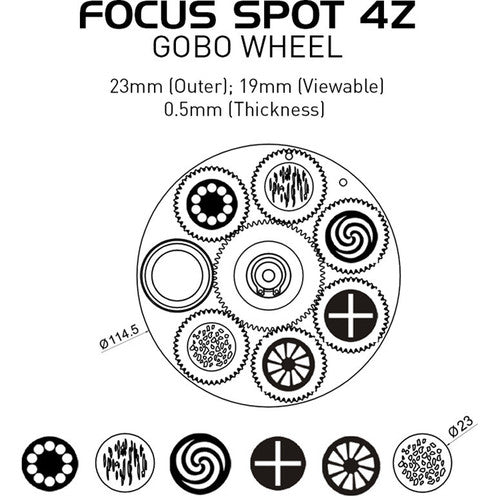

The color wheel has eight colors plus white and six replaceable rotating GOBOs plus open. Additional features include two prism effects including rotating 5-facet linear and rotating 6-facet circular. This fixture features six selectable dimming curves as well as numerous built-in effects.

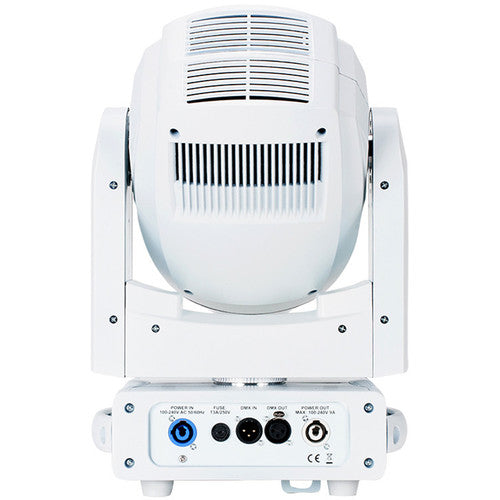

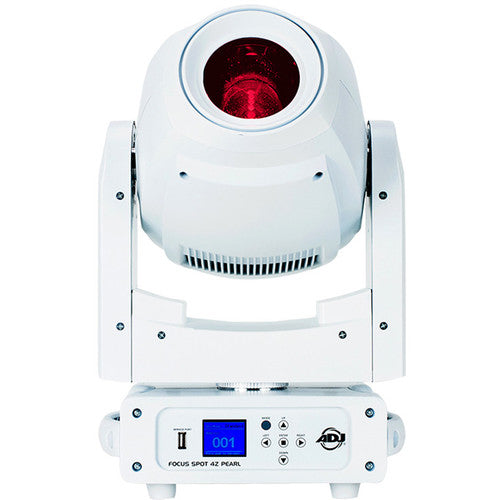

For controls, the unit features several DMX channel modes with 3-pin XLR DMX input and output connectors. Multiple units can be daisy-chained to create complex lighting installations. The color display on the front panel shows DMX addressing and function settings, controllable via the four-button interface. A dedicated USB port is available for firmware updates.
- 200W cool-white LED engine (50,000 hours)
- 8 colors + white
- 6 rotating, replaceable GOBOs + open

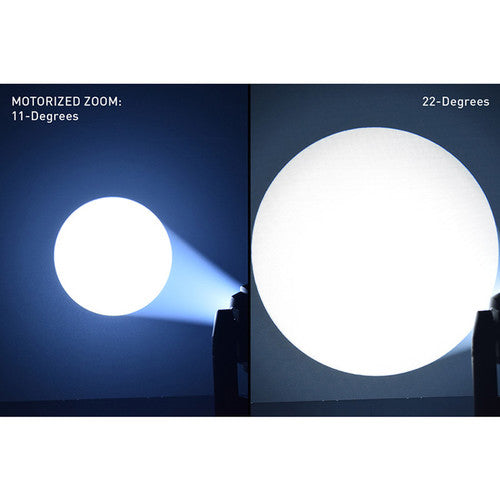

- Zoom range: 11 to 22°
- Focus: motorized

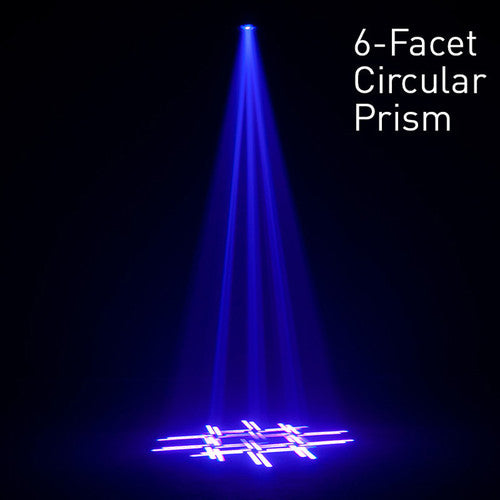

- 2 prism FX: rotating 5-facet linear and rotating 6-facet circular
- powerCON in/out to daisy-chain power
- 3-pin DMX in/out
- USB firmware update port
- Multiple DMX control channels mode
- Fine pan & tilt: 16-bit
- Dimming & fine dimming (16-bit): 0-100% electronic
- 6 dimming modes: Standard, Stage, TV, Architectural, Theatre, and Stage 2
In the Box
- American DJ Focus Spot 4Z 200W LED Moving Head with Motorized Focus & Zoom (Pearl)

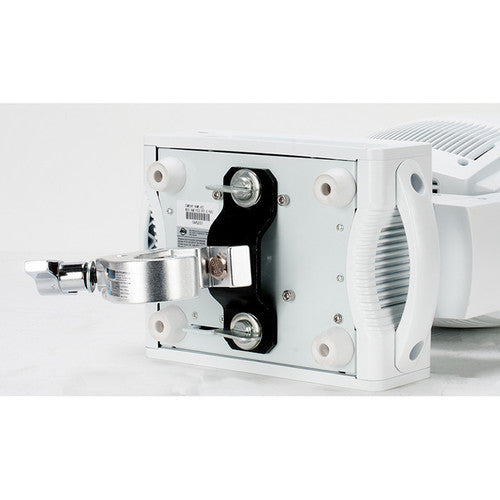

- Omega Bracket
- powerCON Power Cord
- Safety Cable
- Limited 2-Year Warranty
American DJ Focus Spot 4Z Specs
| Light Source | 200 W Cool-White LED |
| Life Expectancy | Approximately 50,000 Hours |
| Beam Angle | 11 to 22° |
| Zoom | Motorized |
| Pan & Tilt | Standard and Fine Control |
| Movement Resolution | 8-Bit / 16-Bit |
| Color Wheel | 8 Colors + Cool White |
| Gobos | 6 Rotating and Replaceable GOBOs + Open |
| Focus | Motorized |
| Prism | Prism 1: 5-Facet Linear, Rotating Prism 2: 6-Facet Circular, Rotating |
| Dimming | Type: Electronic Standard and Fine (16-Bit) Range: 0-100% |
| Dimmer Curves | 6 Curves |
| Protocols | DMX |
| DMX Connectors | Input 1 x XLR 3-Pin Output: 1 x XLR 3-Pin |
| DMX Channel Modes | Multiple Channel Modes |
| Power Connector | Input/Ouput: powerCON |
| Input Voltage | 100 to 230 VAC, 50/60 Hz |
| Dimensions | 17.7 x 11 x 6.9" / 448.8 x 279.4 x 174 mm |
| Weight | 18.3 lb / 8.3 kg |
