Description
American DJ Focus Profile Overview
Lighting designers in search of a professional-caliber automated luminaire will be impressed with the American DJ Focus Profile, a bright feature-rich moving head that's well suited for theatrical, concert touring and event production applications.
The Profile features a 400W LED engine (rated at 20,000 hours), 540° pan and 270° tilt with 16-bit fine control, motorized focus, and a motorized zoom from 7 to 45°. Other notable features include four rotating framing shutters plus shape rotation, two gobo wheels (7 interchangeable rotating-indexing gobos and 8 static-stamped gobos), a 6 dichroic color wheel with variable CTO and full CMY color mixing, and two rotating/indexable prisms (one 6-facet linear and one 3-facet circular). It also has two frost effects (heavy frost and light frost) to create soft edge wash looks. This fixture features six selectable dimming curves as well as numerous built-in effects.
For controls, the unit features three DMX channel modes (36, 40, 51) with 3-pin and 5-pin XLR DMX input and output connectors, as well as an RJ45 connector for ArtNet protocols. Multiple units can be daisy-chained to create complex lighting installations. The color display on the front panel shows DMX addressing and function settings, controllable via the six-button interface.
- 400W LED engine
- Colors wheel with 6 dichroic color CTB and CRI filters
- Variable CTO
- Full CMY color mixing
- 4 rotating framing shutters plus shape rotation
- 3-facet circular and 6-facet linear rotating prisms
- Replaceable medium frost filter
- Animation Wheel
- Motorized zoom (7 to 45°)
- Motorized focus
- Motorized iris
- Electronic dimming and strobe (1 to 20 Hz)
- 7 interchangeable rotating and indexing gobos
- 8 static-stamped gobos
- 3 DMX Channel Modes (36/40/51)
- RDM (Remote Device Management)
- 6-button touch control panel
- Full-color 180° reversible LCD menu display
- 8-/16-bit resolution adjustable movement
- 3- and 5-pin XLR DMX in/out
- RJ45 Ethernet in/out (Art-NET)
- Locking in/out power connections
- With wired digital communication network
In the Box

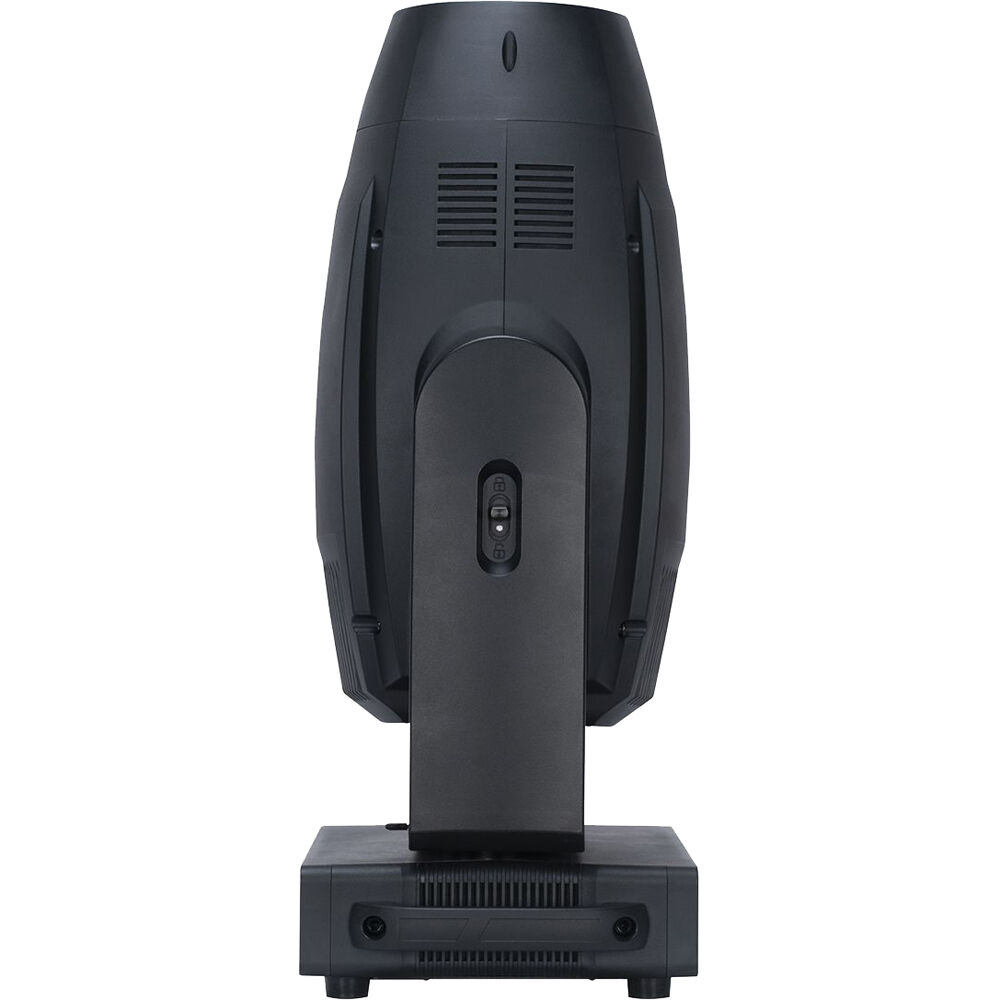

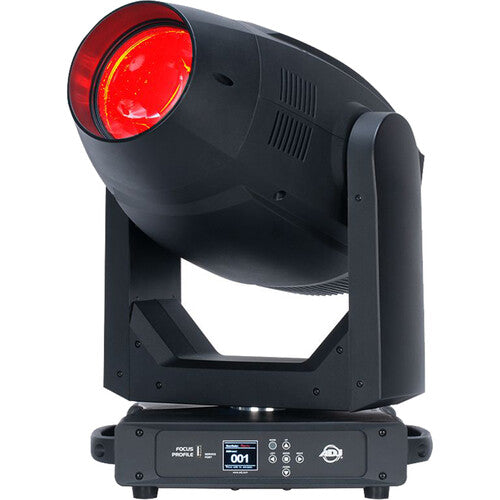

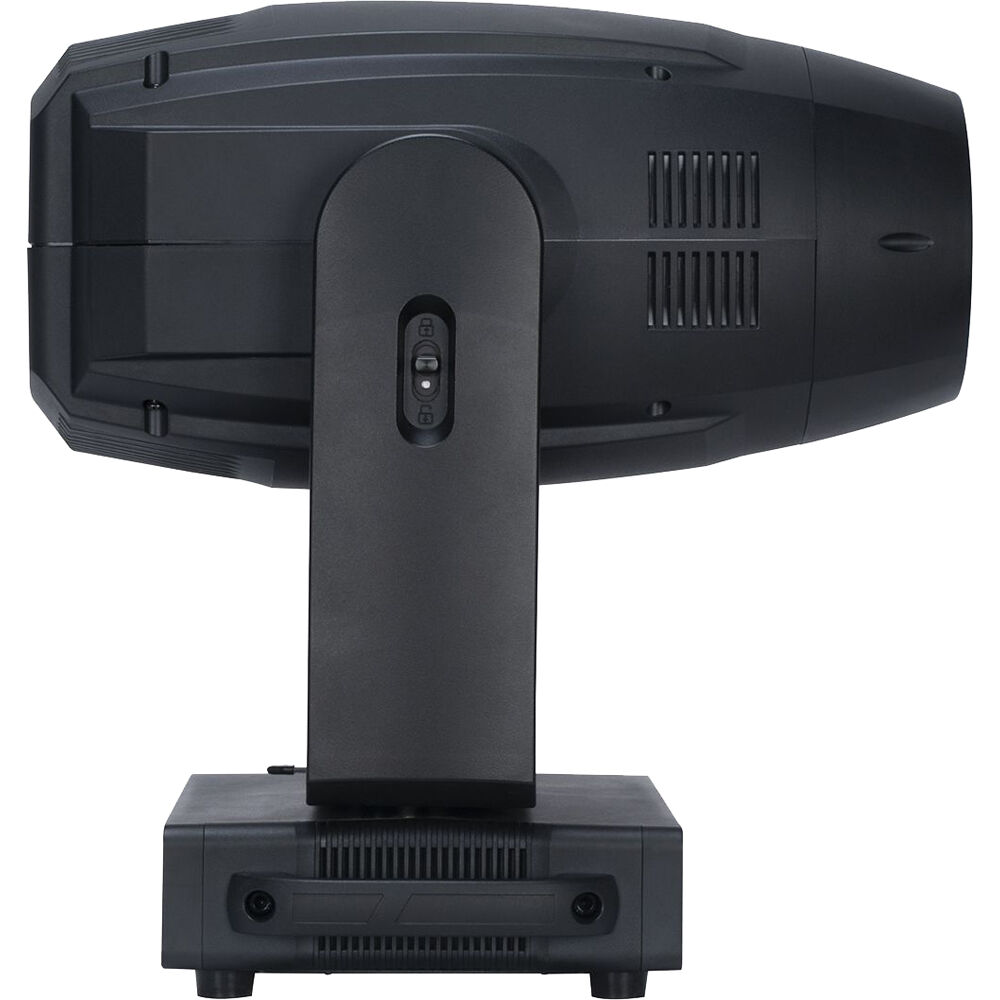

- American DJ Focus Profile 400W LED Moving Head
- Power Cord
- 2 x Omega Bracket
American DJ Focus Profile Specs
| Fixture Type | Moving Head |
| Light Source | 1 x White LED - 400 W |
| Light Source Life Expectancy | 20,000 Hours |
| Colors | Red Green Blue Yellow CTB (Color Temperature Blue) |
| Photometrics | 7°: 4118.3 fc / 44,330 Lux at 16.4' / 5 m 45°: 164.2 fc / 1767 Lux at 16.4' / 5 m |
| Color Temperature | 6200 to 6700K |
| Lumen Output | 20,000 Lumens |
| Beam Angle | 7 to 45° |
| Shutter / Strobe | Electronic |
| Iris | Yes, Electronic |
| Focus | Motorized |
| Zoom Adjustment | Motorized, 7 to 45° |
| Dimming | Electronic, 0 to 100% with 6 Dimmer Modes |
| Prism | 6-Facet Linear (Rotating) 3-Facet Circular (Rotating) |
| Operating Modes | Automatic, DMX |
| Macros / Programs | 7 x Auto-Program |
| Effects | Frost Filter Strobe (Variable Speed) Gobo Shake |
| Strobe Rate | 1 to 20 Hz |
| Gobos | 7 x Removable Metal Gobo 8 x Fixed Gobo |
| Color Accuracy Index | CRI: > 70 |
| Tilt Ranges | 270° |
| Pan Ranges | 540° |
| Movement Resolution | 16-Bit |
| Control Protocols | DMX512, Art-Net |
| DMX Channel Modes | 3 Mode(s): 36 / 40 / 51-Channel |
| Display / Controls | LCD / 6-Button |
| Remote Control | None |

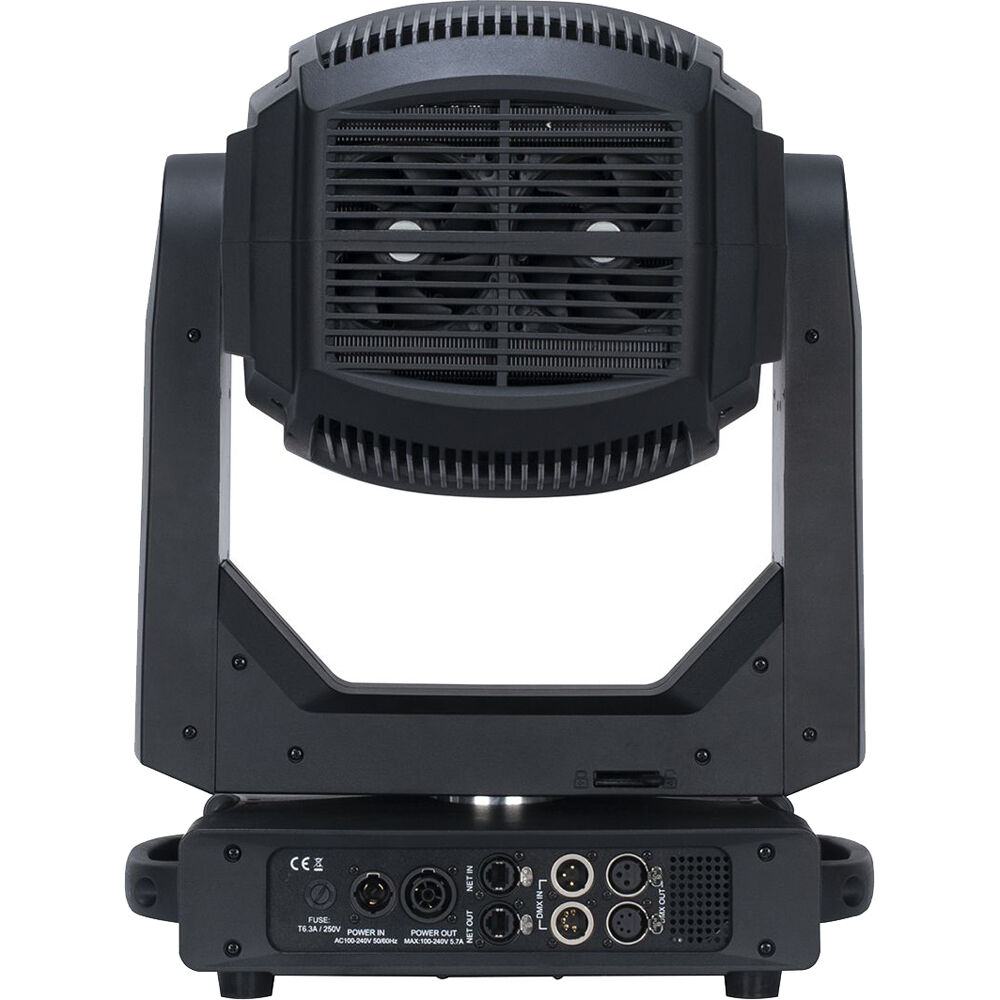

| Inputs/Outputs | 1 x etherCON/RJ45 Network Input 1 x etherCON/RJ45 Network Output 1 x USB Type-A Service Input 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x powerCON TRUE1 Output: 1 x powerCON TRUE1 |
| Fuse | None |
| Power / Current Consumption | 560 W (Max) |
| IP Rating | IP20 |
| Mounting | Omega Bracket |
| Duty Cycle | None |
| Exterior Color | Black |
| Max Housing Temperature | 136°F / 57°C |
| Dimensions | 25.6 x 15.7 x 10.2" / 65 x 39.9 x 25.9 cm |
| Weight | 61.2 lb / 27.8 kg |
