Description
American DJ Focus Flex L19 Overview
- 1Description
- 2Benefits
- 3Colors
- 4Control

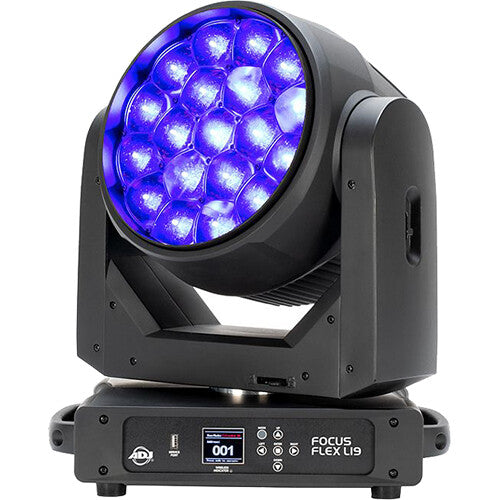

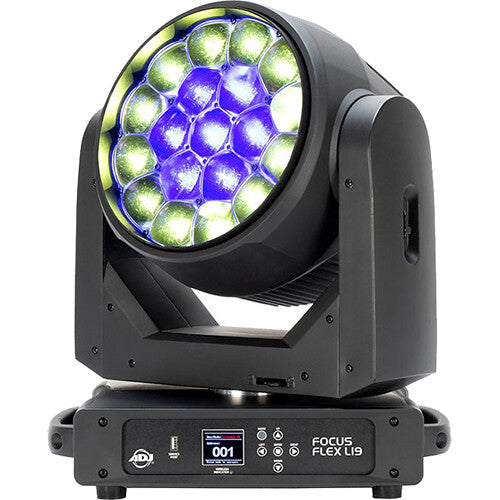

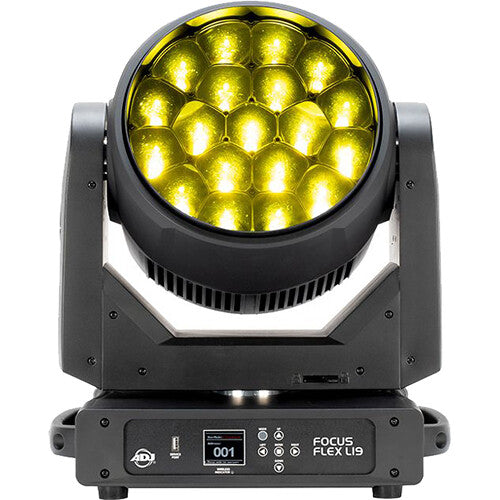

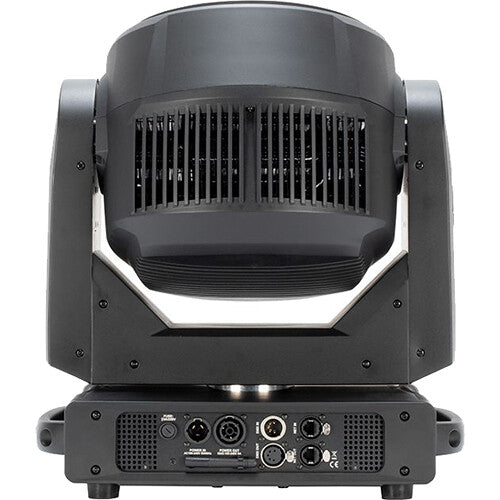

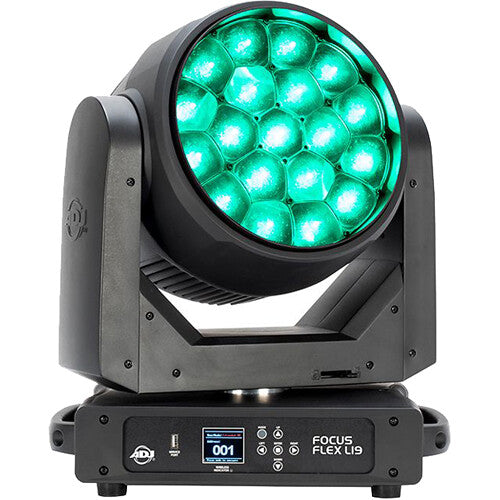

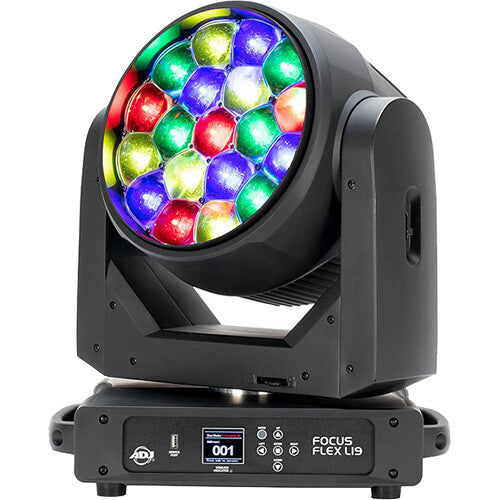

Lighting designers in search of a fixture with creative flexibility for generating vibrant washes, punchy beams, and eye-catching pixel effects should look no further than the American DJ Focus Flex L19, a versatile moving head luminaire well suited for event production and rental houses as well as permanent installations in concert halls, theatres, nightclubs, and churches.
The Focus Flex L19 is powered by 19 x 40W 4-in-1 (red, green, blue, lime) color-mixing LEDs, each of which can be controlled independently. It offers a motorized zoom with a variable field angle of 5 to 50°. With various DMX mode options appropriate for different applications, the Focus Flex L19 offers virtual background and foreground color-wheel control and virtual CMY color mixing as well as a choice of six DMX modes. The Focus Flex includes a locking power cord, two Omega brackets, a safety cable, and a WiFLY antenna.
Benefits
- Moving light pixel wash
- Individual pixel control
- Built-in pixel effect programs
- Electronic strobe / dimmer
- Pan/Tilt: 540/630 x 260
- Beam Angle: 4.3° to 29°
- Field Angle: 5° to 50°
- Color calibrated pixels, so units match from batch to batch
- Virtual CMY DMX control modes
- Virtual foreground and background color wheel control
- Selectable LED refresh rates (900 Hz to 25 kHz)
- Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2, and user settable Dim Speed (0.1 to 10s)
- 4 Dim Curves: Square, Linear, Inv. Square, and S. Curve
- 0-100% smooth dimming
- Fan cooled
- Antenna for WiFLY EXR Wireless DMX
Colors
- 19 x RGBL LED�s (red, green, blue, and lime)
- Virtual CMY DMX control modes
- Virtual foreground and background color wheel control
- Built-in color macros
- 2700 to 10,000K linear white color temperature control
- Color Temperature Presets: 2700, 3000, 3200, 4000, 4500, 5000, 5600, 6500, 8000, and 10,000K
Control
- 6 DMX Modes (22, 31, 40, 104, standard CMY 31, extended CMY 34)
- Color LCD display with 6-button function menu
- Control: DMX512, ArtNet, sACN, and KlingNet compatible and WiFLY EXR wireless DMX
- Built-in effect pixel programs with speed and fade control
- RDM (Remote Device Management) compliant with wired digital communication network
UPC: 810087371500
In the Box
- American DJ Focus Flex L19 RGBL LED Moving Head with Pixel Effects
- Omega Bracket
- Power Cord (6')
- WiFly Antenna
- Limited 2-Year Manufacturer Warranty
Guides & Manuals
Table of Contents
- Description
- Benefits
- Colors
- Control
American DJ Focus Flex L19 Specs
Key Specs
| Fixture Type |
Moving Head
|
| Light Source |
19x Color LED - 40 W
|
| Colors |
Blue, Green, Lime, Red
|
| Pixel Configuration |
19x Zone
|
| Beam Angle |
4.3 to 29°
|
| Control Protocols |
DMX512, W-DMX, RDM, WiFly
|
| AC Input Power |
90 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC: 918 W
|
| Mounting |
Omega Bracket
|
Light
| Fixture Type |
Moving Head
|
| Light Source |
19x Color LED - 40 W
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Lime, Red
|
| Pixel Configuration |
19x Zone
|
| Photometrics |
4.3°:
3714 fc / 39,975 Lux at 16.4' / 5 m 28.3°: 132 fc / 1422 Lux at 16.4' / 5 m |
| Color Temperature |
2700 to 10,000K
|
| Lumen Output |
7814 Lumens (Peak)
|
| Beam Angle |
4.3 to 29°
|
| Field Angle |
5 to 50°
|
| Shutter / Strobe |
Electronic
|
| Zoom Adjustment |
Motorized, 5 to 50°
|
| Dimming |
Electronic, 0 to 100% with 6 Dimmer Modes
|
Performance
| Operating Modes |
DMX, Program
|
| Macros / Programs |
64x Color Macro
|
| Effects |
Shapes (Variable Speed)
Pulse (Individual Pixel Control) |
| Gobos |
No
|
| Color Accuracy Index |
CRI: 83.4
|
| Refresh Rate |
900 Hz to 25,000 Hz (Adjustable)
|
Movement
| Tilt Ranges |
260°
|
| Pan Ranges |
630° / 540°
|
| Pan/Tilt Inversion |
Yes
|
| Movement Resolution |
16-Bit
|
Control
| Control Protocols |
DMX512, W-DMX, RDM, WiFly
|
| DMX Channel Modes |
6 Mode(s):
22 / 31 / 40 / 104 / 31 / 34-Channel |
| Display / Controls |
LCD / 6-Button
|
| Remote Control |
WiFly (with Optional Equipment)
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output |
| Wireless Range |
WiFly:
2296.6' / 700 m (with Optional Equipment) |
Power
| AC Input Power |
90 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON |
| Power / Current Consumption |
120 VAC: 918 W
|
Environmental
| Environmental Protection |
Dust-Resistant (IP20)
|
Physical
| Mounting |
Omega Bracket
|
| Included Accessories |
1x Power Cable
1x Safety Cable |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan (Variable Speed)
|
| Certifications |
CE, ETL
|
| Dimensions |
18.51 x 15.04 x 10.16" / 47.02 x 38.2 x 25.81 cm
|
| Weight |
42 lb / 19.1 kg
|
