Description

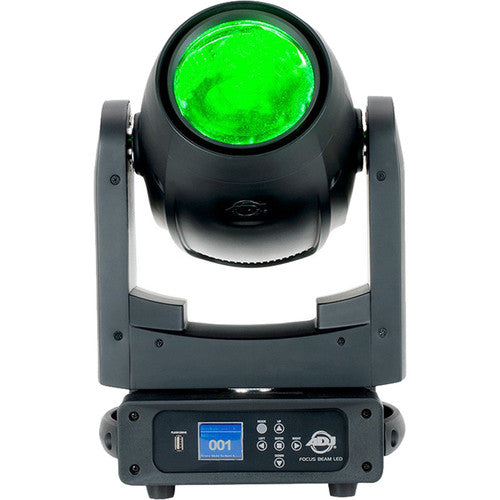

American DJ FOCUS BEAM LED Overview

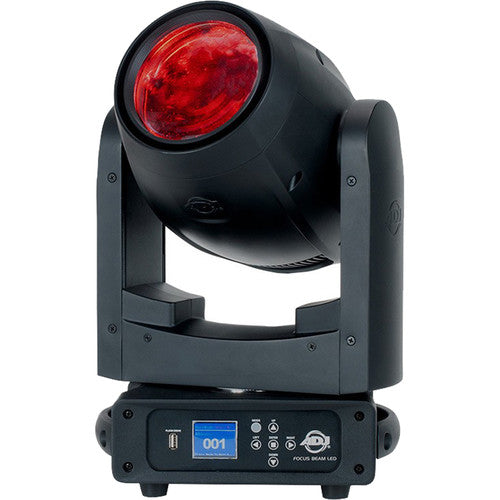

The American DJ Focus Beam LED is a professional-caliber moving head LED beam fixture designed for lighting installations and live performance applications in clubs, theaters, and concert productions. It features an 80W LED light source (rated at 50,000 hours), 630° pan, 270° tilt, 16-bit movement resolution, and motorized focus.
The color wheel has 13 dichroic colors and white, and the metal gobo wheel features 15 static gobos plus open and shake effects. Two prism wheels include rotatable 8-facet circular and 6-facet linear prisms with indexing and overlay features. Also included are six selectable dimming curves (standard, stage, TV, architectural, theater, and stage 2). Additional features include adjustable gamma settings, an adjustable LED refresh rate, and a linear frost filter for wash effects.
For controls, the unit works with RDM and DMX protocols with two DMX channel modes (16 and 18 channels). The 3-pin XLR DMX input and output connectors and Seetronic locking power input and output connectors allow for daisy chaining multiple units to create complex lighting installations. The onboard function display with 5 touch buttons makes it easy to dial in custom settings. The American DJ Focus Beam LED ships with two Omega brackets and a Seetronic locking power cord.
- Control Protocols: DMX and RDM
- DMX Modes: 2 (16 and 18)
- Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre, and Stage 2)
- Dim Speed Control (0.1 to 10 seconds)
- Dimming: 0 to 100%
- Strobe and Pulse Control
- Motorized Focus
- Linear Frost 0-100% (Wash effect)
- Two Prisms: 6- and 8-Facet, Indexable and Rotatable
- USB Firmware Update Port
- Adjustable LED Refresh Rates (900 to 25 kHz)
- Adjustable Gamma Settings (1.0-2.8)
- With Wired Digital Communication Network
- Display: Touch Display with 5-Button Touch Menu

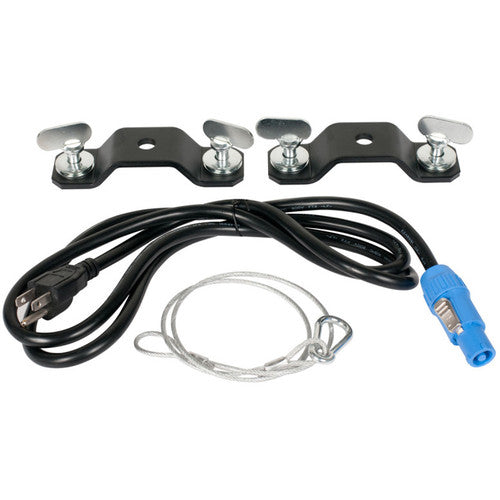

In the Box
- American DJ Focus Beam LED 80W Moving Head
- 2 x Omega Bracket
- Seetronic Power Locking Power Cable
- Limited 2-Year Warranty
American DJ FOCUS BEAM LED Specs
| Light Source | 1 x 80 W Cool-White LED |
| Life Expectancy | Approximately 50,000 hours |
| Color Temperature | 7400K |
| Beam Angle | 5° |
| Focus | Motorized |
| Pan | Pan & Pan Fine: 630° |
| Tilt | Tilt & Tilt Fine: 270° |
| Movement Resolution | 16-Bit Pan, Tilt, and Dimmer Control |
| Color Wheel | 13 Dichroic Colors + White |
| Gobos | Metal Wheel with 15 Fixed GOBOs + Open GOBO Shake Effect |
| Prism | Prism Wheel 1: Rotatable 8-Facet Circular Prism Wheel 2: Rotatable 6-Facet Linear Prism Indexing with Overlay Feature |
| Dimming | Type: Electronic Range: 0-100% |
| Dimming | Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theater & Stage 2) Dim Speed Control (0.1 to 10 Seconds) Dimming: 0 to 100% |
| Shutter/Strobe | Strobe and Pulse Control |
| Control | Control Modes: DMX512, RDM, and Standalone Internal Programs Channel Modes: 16 & 18 Channels; 16-Bit Pan, Tilt, and Dimmer Control |
| DMX Connectors | Input: 1 x XLR 3-Pin Output: 1 x XLR 3-Pin |
| Power Connector | Seetronic Locking Power In & Out |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
| Power Linking | 120 VAC: Up to 15 Units 230 VAC: Up to 30 Units |
| Power Consumption | 136 W at 120 V |

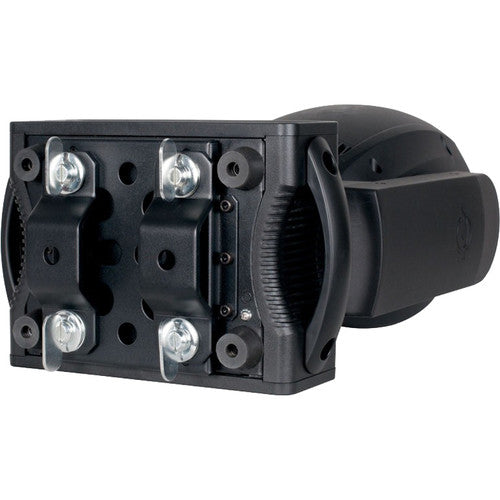

| Mounting | Omega Bracket |
| Dimensions | 11 x 6.9 x 17.6" / 27.8 x 17.4 x 44.7 cm |
| Weight | 27 lb / 12.3 kg |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
