Description
American DJ MDF2PSUX117 Overview

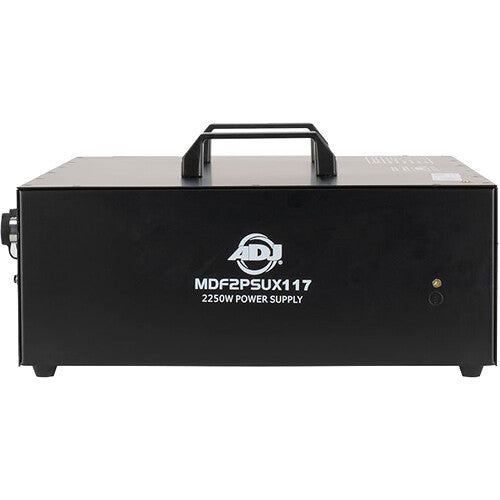

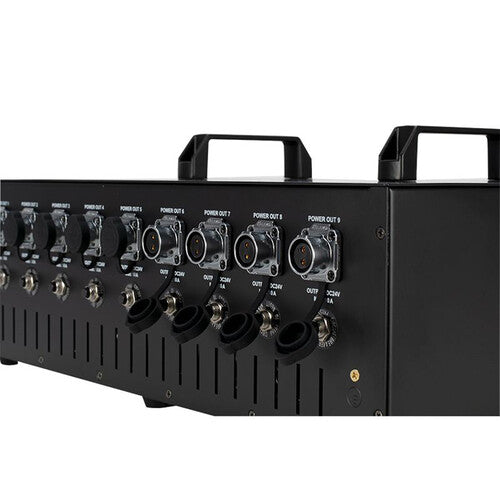

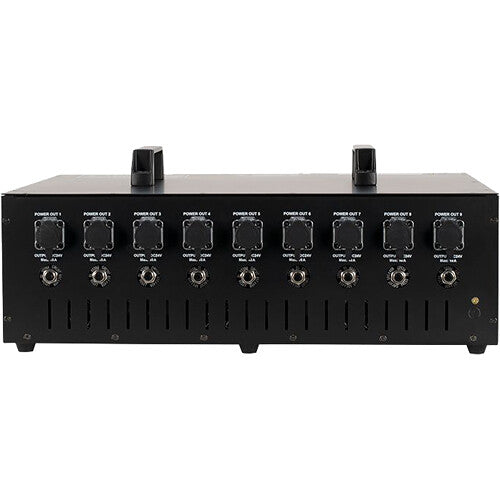

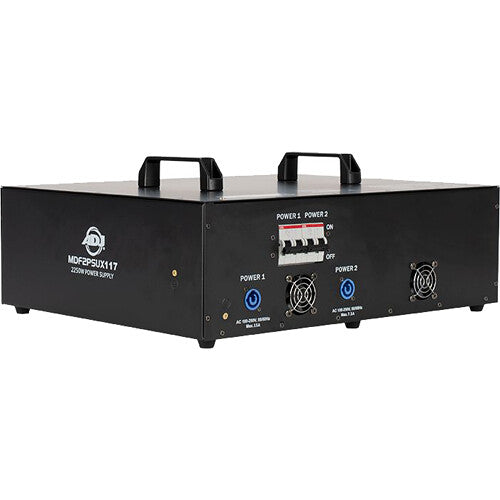

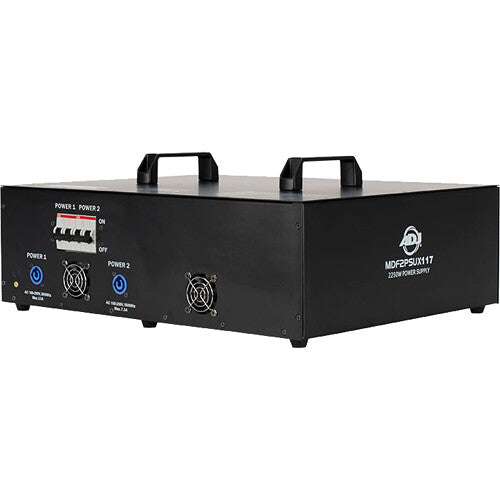

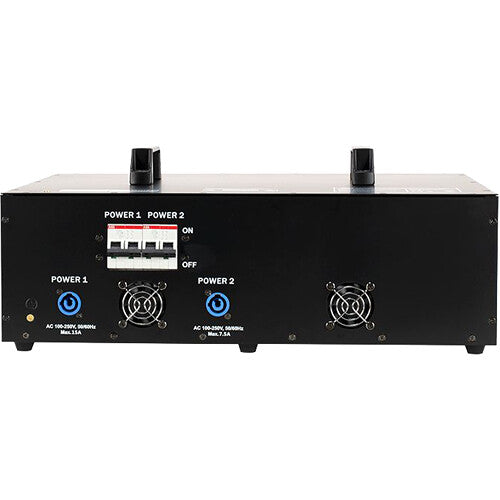

The External Power Supply from American DJ is a 2250W external power supply for up to 117 ADJ MDF2 dance floor panels. It has two power locking inputs and two power breakers that each control six outputs. There are nine power outputs with rubber protectors and nine resettable breakers. There are two carrying hands on the top of the power supply, with rubber feet on the bottom. The MDF2PSUX117 has two fans to keep the unit cool. There are two locking input power cables and nine 2-pin power output cables included in the box.
The unit is a 2250W external power supply for up to 117 ADJ MDF2 dance floor panels.
There are two locking input power cables and nine 2-pin power output cables included in the box.
The MDF2PSUX117 has two fans to keep the unit cool.
Rubber feet on the bottom of the power supply prevent the item from sliding.
Two carrying handles help with the carrying of the box.
It includes two separate power switches.
There are nine resettable breakers.
Current Overload Protector Trip Time
10A of max load: No trip
10-15A over max load: Trip within 1 hour
15-20A over max load: Trips in 5.2 to 30 second
20-30A over max load: Trips in 1.5 to 5.5 seconds
10-15A over max load: Trip within 1 hour
15-20A over max load: Trips in 5.2 to 30 second
20-30A over max load: Trips in 1.5 to 5.5 seconds
UPC: 818651029970
In the Box
- American DJ External Power Supply for MDF2 Dance Floor Panels
- 2 x Locking Power Cable (3')
- 9 x 2-Pin Power Output Cable (15")
- Limited 1-Year Manufacturer Warranty
American DJ MDF2PSUX117 Specs
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Current |
90 A
|
| Maximum Wattage |
2250 W
|
| Output Voltage |
24 VDC
|
General
| Output |
Proprietary
|
| IP Rating |
IP20
|
| Environmental Protection |
Advertised as Dust Resistant
*Manufacturer Testing: IP20 |
| Operating Temperature |
-4 to 158°F / -20 to 70°C
|
Physical
| Dimensions |
19.7 x 17 x 8.1" / 500.4 x 431.8 x 205.7 mm
|
| Weight |
30 lb / 13.6 kg
|
