American DJ Encore Profile Pro Color RGBWAL LED Ellipsoidal

250W RGBWAL Ellipsoidal

Manual Focus & Manual Zoom

DMX Channel Modes: 6, 9, 12

0 to 100% Electronic Dimming & Strobing

ADJ Encore Profile Pro Color "First Look"

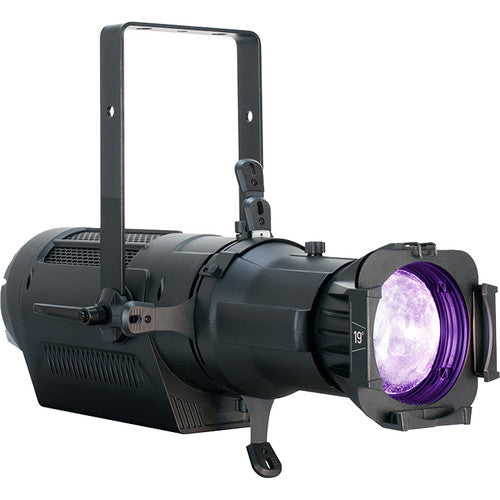

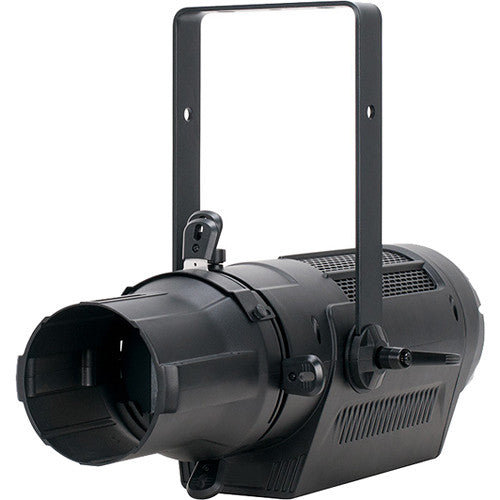

The American DJ Encore Profile Pro Color is an RGBWAL LED ellipsoidal with manual zoom and focus that is well suited for stage, studio, broadcasting, museums, and more. Capable of rich saturated colors, the fixture utilizes a bright 250W LED engine that generates red, green, blue, white, amber, and lime colors for a wide pallet of color mixing capabilities. Notable features include a 4-blade manual framing shutter, manual focus, and DMX-controlled electronic strobe, dimming, dimming curves, and dimming modes. Additionally, the Encore Profile Pro Color provides flicker-free operation for TV and film with an adjustable refresh rate frequency.

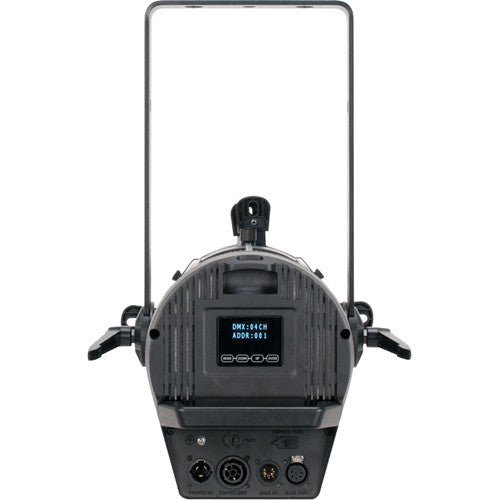

The fixture supports B-sized metal HT transparency gobos, and it works with separately sold interchangeable lens options (5, 10, 14, 19, 26, 36, and 50°). The rear panel includes locking 5-pin DMX XLR in/out connectors and power input, as well as a 4-button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal autoswitching power supply (100 to 240V). Up to three fixtures can be power-linked (120V). The Encore Profile Pro Color ships with a locking power cable.

Note: EP Lenses sold separately Features

• 250W RGBWAL (red, green, blue, white, amber, lime) LED engine
• 4-blade manual framing shutter
• Manual focus
• Supports B-sized metal HT transparency gobos
• DMX control modes: 6, 9, 12
• Electronic strobe
• Dimming, dimming curves, and dimming modes
• Flicker-free operation for TV and film
• Adjustable refresh rate frequency
• Locking 5-pin XLR in/out connectors and locking power input
• 4-button LCD control display panel
• Integrated rigging yoke
• Quiet fan cooling
• Multi-voltage universal autoswitching power supply (100 to 240 VAC)

Optional Accessories

• EP lens 5 (5° lens)
• EP lens 10 (10° lens)
• EP lens 14 (14° lens)
• EP lens 19 (19° lens)
• EP lens 26 (26° lens)
• EP lens 36 (36° lens)
• EP lens 50 (50° lens)
• EP lens 15-30 (adjustable 15 to 30° lens assembly)
• EP lens 25-50 (adjustable 25 to 50° lens assembly)

Source	250 W RGBWAL (Red/Green/Blue/White/Amber/Lime) LED Engine 50,000-Hour Average LED Life
Photometric Data	>90 CRI 6000 Total Lumens (With 26° Lens)
Effects	Electronic Strobe and Dimming Variable Dimming Curves and Dimming Modes
Gobos	Supports B-Sized Metal, HT Transparency Gobos (Gobos and Holder Not Included)
Controls	3 x DMX Channel Modes (6, 9, 12) Adjustable Refresh Rate (900 to 1500, 25,000 Hz) 4-Button Control Panel LED Menu Display Locking 5-Pin XLR Connector In/Out Locking Power Connector In/Out Wired Digital Communication Network
Cooling	Quiet Fan Cooling
Temperature	14 to 113°F / -10 to 45°C
Power	Power Input: 100 to 240 VAC, 47/63 Hz Power Consumption: 250 W Max Power Linking: 3 Units Max at 120 V / 8 Units Max at 240 V
Approvals and Ratings	CE, cETLus(Pending), IP30
Dimensions (L x W x H)	27.1 x 11.3 x 17.7" / 68.8 x 28.7 x 45.0 cm
Weight	20.0 lb / 9.1 kg
