Description

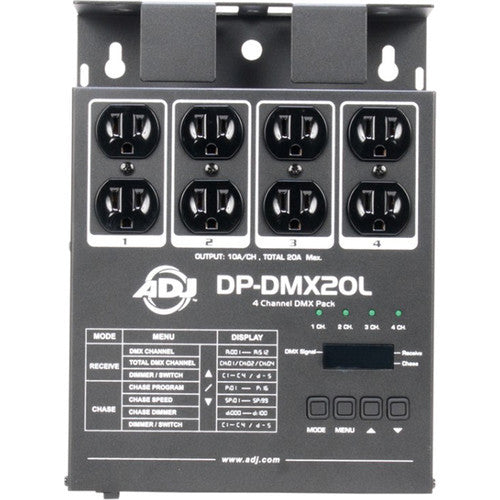

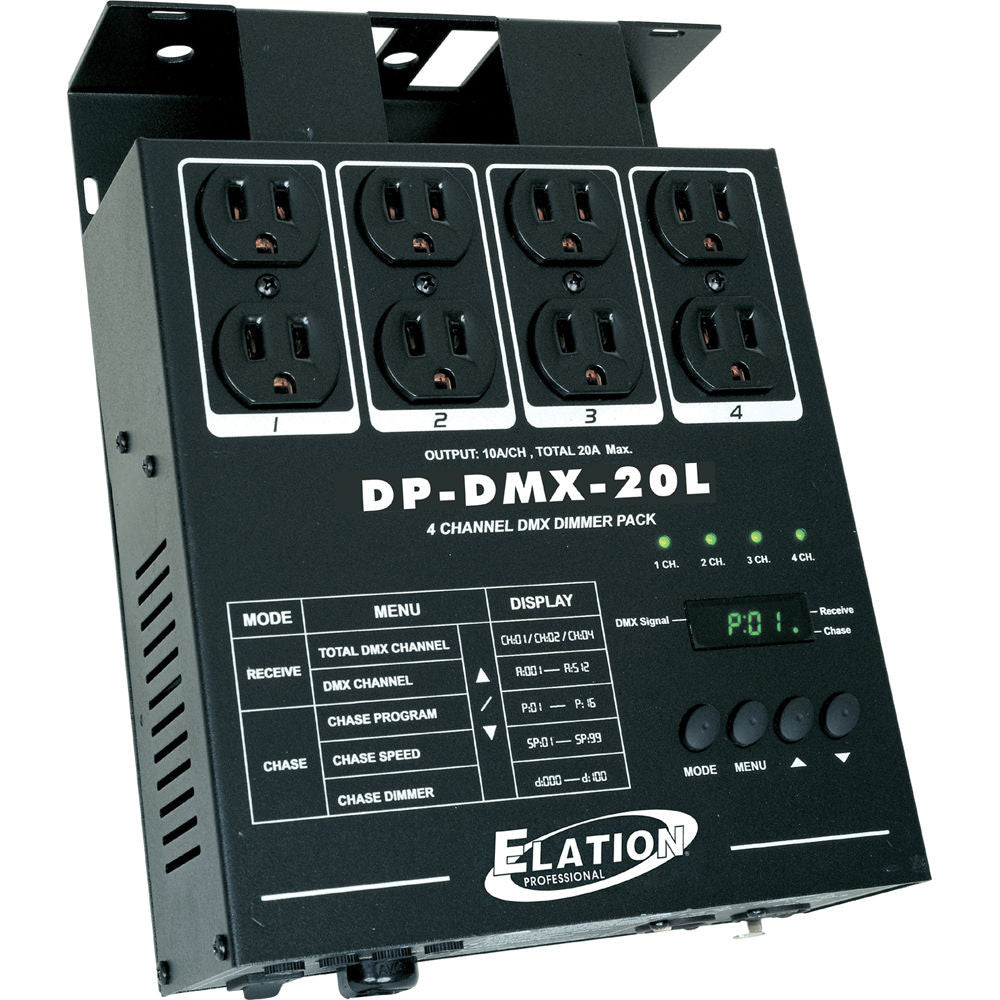

- 4-Channel Edison Socket Dimmer Pack
- Channels Independently Assignable
- Dimmer & Switch Modes
- 16 Built-In Chases
- Speed & Intensity Settings Per Chase
- Power Failure Memory
The American DJ DP-DMX20L 4-Channel DMX Dimmer Pack features independently assignable dimming or switching channels and is easily mounted on a truss lighting rig. The DJ DP-DMX20L features 8 Edison sockets (2 per channel) and includes 16 built-in chases with speed and intensity settings as an added bonus. The DP-DMX20L is at home as a stand-alone unit connected to 8 par can or effects lights, or may be used in conjunction with a DMX controller.
- 4 channel DMX dimmer pack
- Digital display - used to set starting DMX address channels and set all other menu options
- Selectable 1, 2, or 4 channel operation
- Adjustable master dim level
- Two three prong Edison sockets per channel

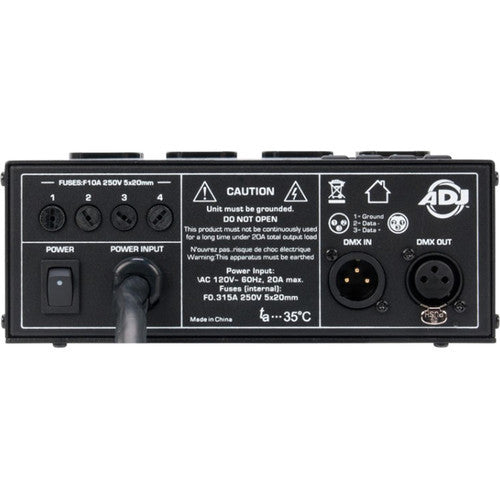

- 3-pin XLR DMX input & output
- Four LED's display channel activity
- External channel fuses for quick and easy replacement
- Sleek reversible mounting panel on the rear
- Zero crossing circuitry for protection of transformer loads when switching
- 16 built in chases when in chase mode with adjustable speed setting
- Use in conjunction with Elation; DMX Operator Pro, Stage Setter-8, Scene
- Reversible mounting brackets
- Setter, Scene Setter-48, Stage Desk-16 or any universal DMX controller
UPC: 819730012166
| Power Input | 120 VAC 50/60 Hz |
| Output | Channel output: 5 A per channel, total 15 A max. |
| DMX Interface | In: 3-pin XLR Out: 3-pin XLR |
| Fuse | External load: F10 A 250 V 5x20 mm Internal main: F0.315 A 250 V 5x20 mm |
| Dimensions (LxWxH) | 8.35 x 7.4 x 2.8" (212 x 188 x 71 mm) |
| Weight | 5.29 lb (2.4 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 7.25 lb |
| Box Dimensions (LxWxH) | 13.543 x 10.315 x 5.118" |
In the Box
American DJ DP-DMX20L 4-Channel DMX Dimmer Pack
- 1 Year Warranty
