Description

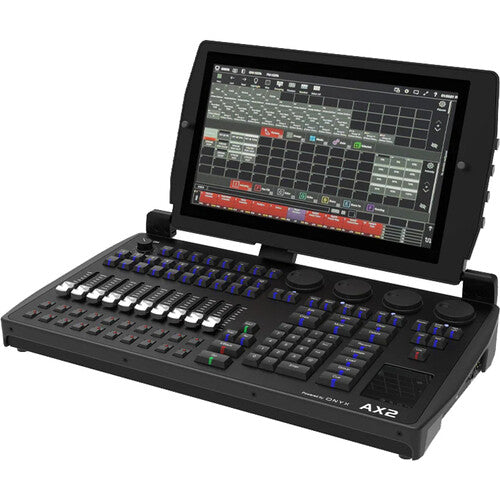

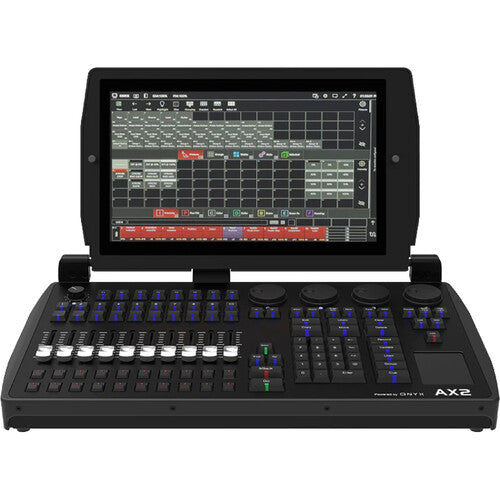

American DJ AX2 Overview
Derived from the innovative ONYX platform, the American DJ AX2 is the ultimate compact yet powerful fully integrated lighting controller that includes a bright, full-HD, multi-touch screen, eight assignable parameter encoders, an assistive mini touchscreen, full keypad and command section, a dedicated grand master, and ten full playbacks, along with four freely assignable buttons. The AX2 utilizes the latest in industrial components and contains a powerful Intel Hexa-Core processor, high-speed NVMe SSD drive, and 16GB of DDR4 RAM. With its unprecedented power in a compact form factor, the AX2 boasts fast boot times, instant operation, and the ability to process 32 Universes right inside the console, without the need for costly external processing networks.
It's ergonomic with its compact footprint, full ONYX command and keypad section, and the bright adjustable HD touchscreen. Ready to run large shows and events at a moments notice, the AX2 includes four DMX ports, Timecode, MIDI, and dual Gigabit ports, for up to 32 Universes of Art-Net and sACN, plus ONYX X-Net protocol. All the connectivity and power to meet the demands of ever-increasing shows sizes. Additionally, the AX2 can support two external 4K touch monitors, for direct access at any time. The AX2 includes a 13" RGB LED desk lamp with angular XLR connector, a dust cover, a USB cable, an external 12V power supply, a standard IEC power cord, and a USB recovery flash drive.
- Adjustable 15.6? Full HD multi-touch screen
- Support for two external 4K touch displays
- 32 Universe integrated processing
- 10 playbacks
- 8 encoders
- Keypad and internal 3.5? touchscreen

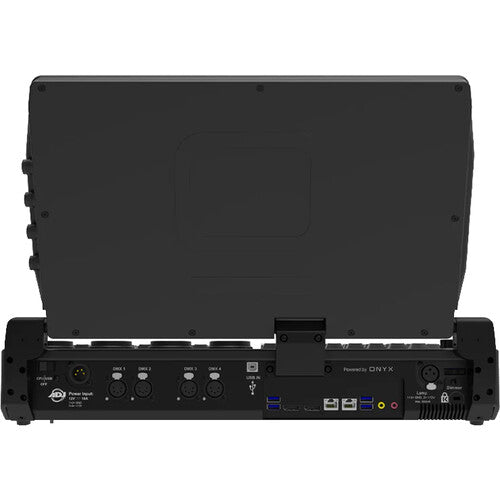

- Network, DMX, timecode, and MIDI connectivity
- Powered by ONYX from Obsidian Control Systems
- DYLOS Media Engine with five zones of pixel control
- 10 x 60mm playback faders, each with 4 function-assignable buttons
- 8 x customizable multifunction keys
- Playback Select button
- Master Go section with Go, Pause, Snap, and Release
- 4 x digital rotary encoders with push function and status LED for fixture parameter control
- 4 x screen-mounted digital rotary push encoders
- 3.5? RGB touchscreen for parameter groups, effect parameters, fanning, and global timings
- Grandmaster rotary fader and Blind/HighLight/Last/Next buttons
- Full numerical keypad and command keys
- American DJ AX2 Compact Fully Integrated Lighting Controller
- 13" RGB LED Desk Lamp with XLR Connector
- Dust Cover
- USB Cable
- IEC Power Cord
- External PSU
- USB Recovery Flash Drive
- Limited 2-Year Manufacturer Warranty
American DJ AX2 Specs
| Compatibility |
Not Specified by Manufacturer
|
| Hardware |
500 GB NVMe M.2 storage drive
Industrial motherboard with Intel i5 Hexa-Core CPU Quiet Thermal Design Using Advanced Copper Heat Pipe Coolers 16 GB DDR4 RAM Integrated Graphics Processor Windows 11 IoT Embedded Operating System OS Installation by USB 3.0 Storage Device Supports Windows USB Touchscreens Compatible with Obsidian Control Systems NXP Motorized Fader Wing (Sold Through Obsidian Control Systems Dealers) |
| Panel Type |
TFT LCD
|
| Size |
15.6"
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| USB I/O |
4 x USB-A 3.0 / 3.1/3.2 Gen 1 Female Input
1 x USB-A 2.0 Female Input 1 x USB-B 2.0 Female Input |
| Video I/O |
2x DisplayPort Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Line Output
1x 1/8" / 3.5 mm TRS Mic Input |
| Input and Output Connectors |
MIDI in/out/thru (MIDI Showcontrol, MIDI notes, MIDI Timecode): 5-Pin DIN
SMPTE Timecode In/Out: 3-Pin XLR 12 VDC Power Supply Input: 4-Pin XLR Desk Lamp: XLR 12 V |
| Power Source |
AC Adapter with Power Brick (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC at 11 A
|
| Power Consumption |
132 W
|
| Operating Current |
3 A
|
| Color |
Black
|
| Dimensions |
21.3 x 11.9 x 4.8" / 54.1 x 30.2 x 12.2 cm
|
| Weight |
19.8 lb / 9 kg
|
