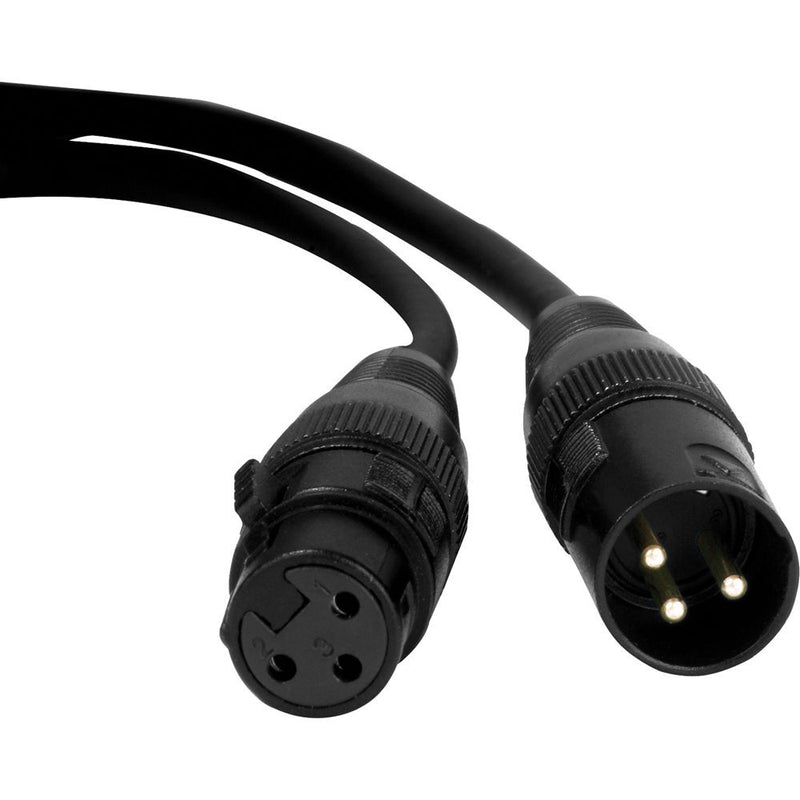

American DJ Accu-cable 3-pin DMX Cable (10')

₹ 1,285.00

Price is inclusive of GST and Import duty charges

Buy on EMI starting at 62/month

Buy Now, Pay Later. 0% interest, choose LazyPay during checkout(for selected customers only).

SKU: 8135649872

Brand: American

MPN: AC3PDMX10

UPC: 640282090605

Estimated Delivery Date

Ask a question about product

100% Original Products

Tanotis imports genuine branded products from worldwide

100% Secure Payment

Tanotis partners with Payumoney for secure payments

Priority Shipping

Priority Delivery within India across 80000+ pincodes

GST Invoice on all purchases

All products are shipped with GST bills, you will be eligible to take input credit.

Bulk Discounts

Quantity Price
2 Rs.1259.3
3-5 Rs.1246.45
5-10 Rs.1220.75
10+ Rs.1195.05

Bulk discount will be automatically applied during checkout based on quantity.

  • For Connecting DMX Lights and Effects
  • 22 AWG
  • Stranded Tinned Copper Conductors
  • PVC Jacket

The 10' American DJ Accu-cable 3-pin DMX Cable is designed for connecting DMX controllers, DMX lights, and other 3-pin DMX512 devices into a stage lighting or effect system for live performance applications. The cables are constructed of 22 AWG stranded tinned copper conductors insulated by polyethylene within a PVC jacket.

UPC: 640282090605
Construction
Tinned copper conductors
Polyethylene twisted pair insulation
Polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage)
PVC jacket
Pairs 1
Conductor 2
AWG 22
Stranding 0.15 x 19
Diameter Conductor: 0.0354" (0.0899 cm)
Inner jacket: 0.055" (
Overall: 0.229" (
Conductor TC-tinned copper
Insulation PE polyethylene
Lay Length 2.5" (6.4 cm) left hand lay with 4.8 twists per foot
Jacket Material Inner: PE-polyethylene
Outer: PVC-polyvinyl chloride
Outer Shield Trade name: Duofoil
Type: Tape/Braid
Outer Shield Material Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
Mechanical
Operating Temperature Range -22 to 167°F (-30 to 75° C)
Minimum Bend Radius 3.2" (8.1 cm)
Pulling Tension Maximum 72 lb (33 kg)
Length 10' (3.0 m)
Electrical
Impedance 110 ?
Capacitance Conductor to conductor at 1 kHz: 12.8 pF/ft
Conductor to conductor and shield: 23 pF/ft
Velocity of Propagation 66%
Delay 1.6 Nanoseconds per foot
DC Resistance Conductor at 20°C: 24 ?/1000 ft
Outer shield at 20°C: 3.4 ?/1000 ft
Attenuation At 1 MHz: 0.6 dB/100 ft
Current 2.1 A mps per conductor at 25°C
General
Length 10' (3.0 m)
Weight Bulk wire: 0.31 lb (0.14 kg)
Packaging Info
Package Weight 0.4 lb
Box Dimensions (LxWxH) 11.3 x 3.6 x 0.4"
