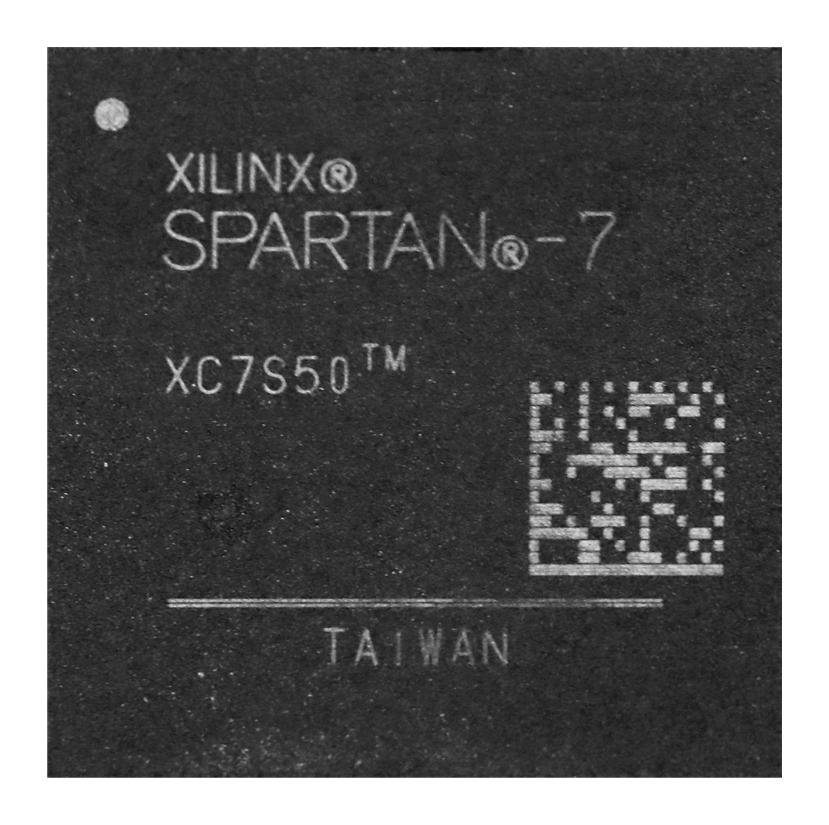

AMD Xilinx XC7S50-1CSGA324I XC7S50-1CSGA324I Fpga Spartan-7 Mmcm PLL 210 I/O's 464 MHz 52160 Cells 950 mV to 1.05 V CSBGA-324

"Spartan®-7 Family: Optimized for low cost, lowest power, and high I/O performance. Available in low-cost, very small form-factor packaging for smallest PCB footprint. Built on a state-of-the-art, high-performance, low-power (HPL), 28 nm, high-k metal gate (HKMG) process technology, 7 series FPGAs enable an unparalleled increase in system performance with 2.9 Tb/s of I/O bandwidth, 2 million logic cell capacity, and 5.3 TMAC/s DSP, while consuming 50% less power than previous generation devices to offer a fully programmable alternative to ASSPs and ASICs. "

• Advanced high-performance FPGA logic based on real 6-input lookup table (LUT) technology configurable as distributed memory.
• 36 Kb dual-port block RAM with built-in FIFO logic for on-chip data buffering.
• High-performance SelectIOâ�¢ technology with support for DDR3 interfaces up to 1,866 Mb/s
• High-speed serial connectivity with built-in multi-gigabit transceivers from 600 Mb/s to maximum rates of 6.6 Gb/s up to 28.05 Gb/s.
• A user configurable analog interface (XADC), incorporating dual 12-bit 1MSPS analog-to-digital converters with on-chip thermal and supply sensors.
• DSP slices with 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering, including optimized symmetric coefficient filtering.
• Powerful clock management tiles (CMT), combining phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks for high precision and low jitter.
• Integrated block for PCI Express® (PCIe), for up to x8 Gen3 Endpoint and Root Port designs.
• 256-bit AES encryption with HMAC/SHA-256 authentication, and built-in SEU detection and correction.

Applications

Medical

Footnotes Please note this product is Non-Cancellable and Non-Returnable (NCNR). Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. Warnings Warranty Information: Xilinx semiconductor products have a warranty of twelve (12) months from date of purchase.

Other details

Brand	AMD XILINX
Part Number	XC7S50-1CSGA324I
Quantity	Each
Technical Data Sheet EN
