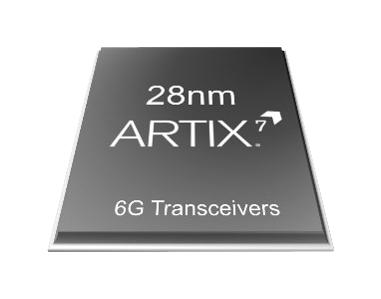

AMD Xilinx XC7A15T-2CSG325I Fpga Artix-7 Mmcm PLL 150 I/O's 628 MHz 16640 Cells 950 mV to 1.05 V CSBGA-325

The Xilinx Artix®-7 FPGA family provide highest performance-per-watt fabric, transceiver line rates, DSP processing and AMS integration in a cost optimized FPGA. Featuring MicroBlaze� soft processor and 1,066Mb/s DDR3 support, the family is best value for variety of cost and power sensitive applications including software defined radio, machine vision cameras and low end wireless backhaul. It is optimized for low power applications requiring serial transceivers, high DSP and logic throughput. It features up to 215K logic cells, 13Mb BRAM, 740 DSP slices, 929 GMAC/s, 16 transceivers, 6.6Gb/s transceiver speed, 211Gb/s serial bandwidth, x4 Gen2 PCIe interface and 500 I/O pins. Artix®-7 FPGA supports wide variety of configuration options including support for commodity memories, 256bit AES encryption with HMAC/SHA-256 authentication and built-in SEU detection and correction. It meets needs of size, weight, power and cost (SWaP-C) sensitive markets like avionics and communications.

• -3, -2, -1, -1L, -2L speed grade options with 0 to 85°C/0°C to 100°C/-40°C to 100°C temperatures
• Artix®-7 features programmable system integration, increased system performance, BOM cost reduction
• Total power reduction (65% lower static and 50% lower power than 45nm generation devices)
• Accelerated design productivity, scalable optimized architecture, comprehensive tools and IP
• State-of-the-art, high performance, low power (HPL), 28nm, high-k metal gate (HKMG) technology
• Powerful clock management tiles (CMT) combining phase-locked loop and mixed mode clock manager
• AXI IP, analogue mixed signal integration and Low cost, wire bond, lidless flip-chip package options
• 1.2V to 3.3V I/O voltage, high speed serial connectivity with built-in multi gigabit transceivers
• Artix®-7 FPGA has user configurable analogue interface and real 6-input lookup table technology
• High performance SelectIOâ�¢ technology with support for DDR3 interfaces up to 1866Mb/s

Applications

Medical

Footnotes Please note this product is Non-Cancellable and Non-Returnable (NCNR) Warnings Warranty Information: Xilinx semiconductor products have a warranty of twelve (12) months from date of purchase. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	AMD XILINX
Part Number	XC7A15T-2CSG325I
Quantity	Each
Technical Data Sheet EN
