AMD - Xilinx EK-VMK180-G EK-VMK180-G Evaluation Kit VMK180 Networking Communication New

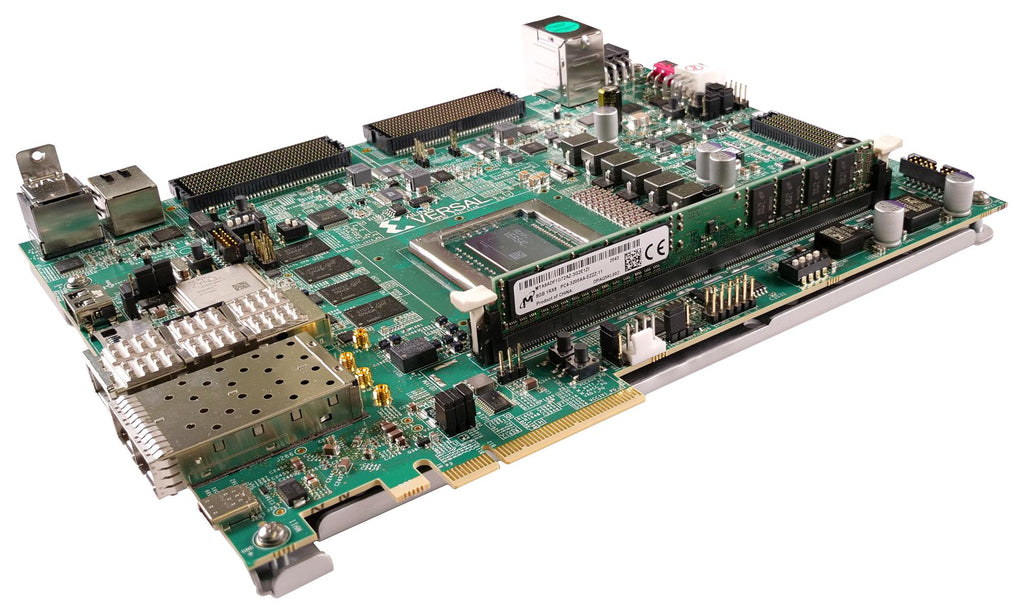

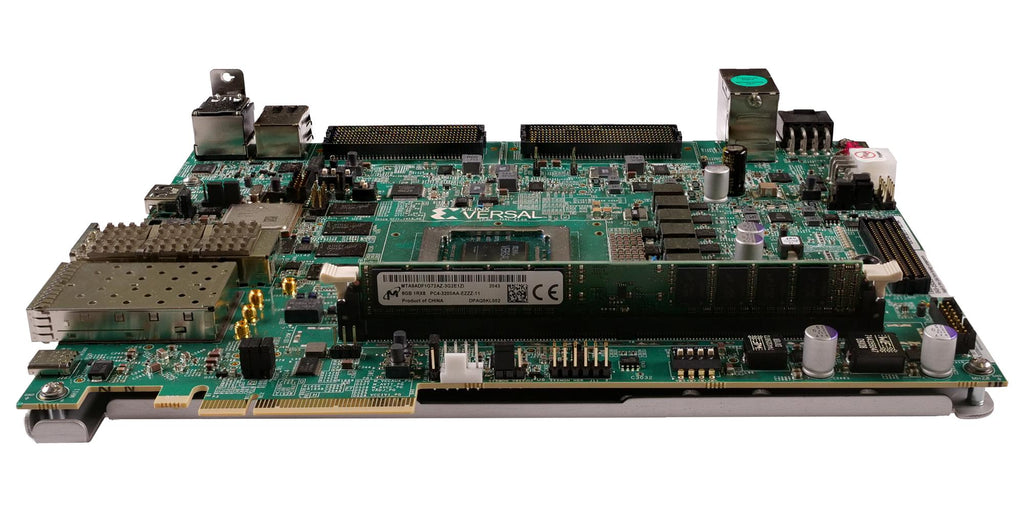

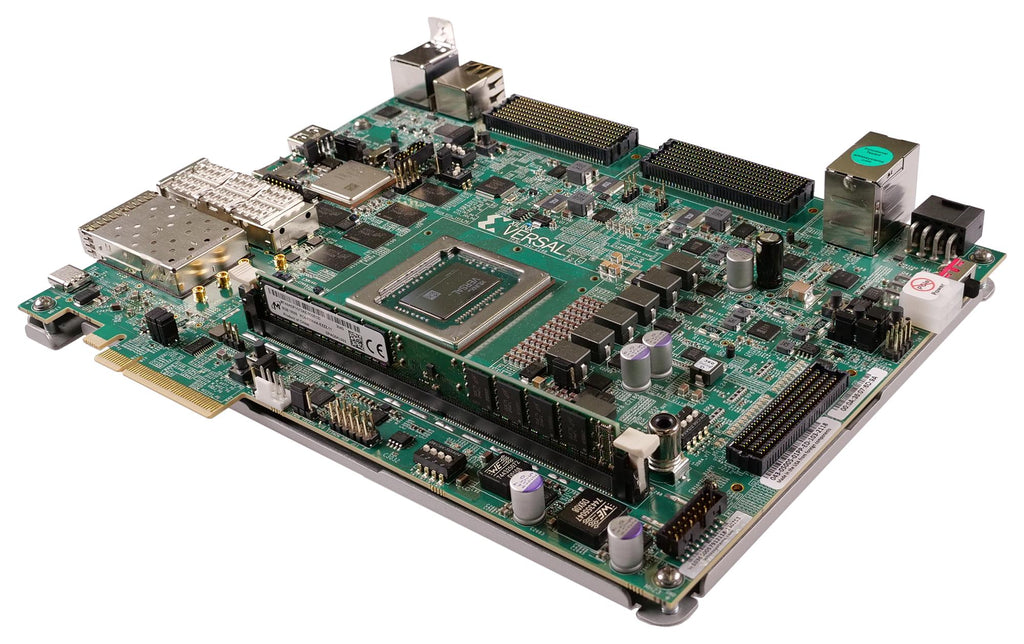

EK-VMK180-G is a Versal Prime Series VMK180 Evaluation Kit. The VMK180 Evaluation Kit is your fastest path to application bring-up using the world's first adaptive compute acceleration platform (ACAP). The board features the VM1802 Versal® Prime series device, which combines a software programmable silicon infrastructure with world-class compute engines and connectivity to accelerate diverse workloads in a wide range of markets.

• Equipped with Versal ACAP VM1802 production silicon
• PCIe® Gen4 interface for high compute performance markets
• HDMI for video processing applications
• SFP28 and QSFP28 optical interfaces and RJ-45 Ethernet port for networking
• DDR4 and LPDDR4 memory interfaces
• FMC expansion connectors supporting a variety of optional plug-in cards including camera sensors
• Vivado® ML Editions, Vitisâ�¢ unified software platform
• SmartLynq+ module for high-speed debug, performance analysis and event trace

Contents

VMK180 evaluation board, QSPI boot module, Pmod module, 2 Ethernet cables, USB type-C cable, 2 micro SD Cards, 180W (12V) power supply, PCIe® bracket, Vivado® ML enterprise edition voucher.

Other details

Brand	AMD - XILINX
Part Number	EK-VMK180-G
Quantity	Each
Technical Data Sheet EN
