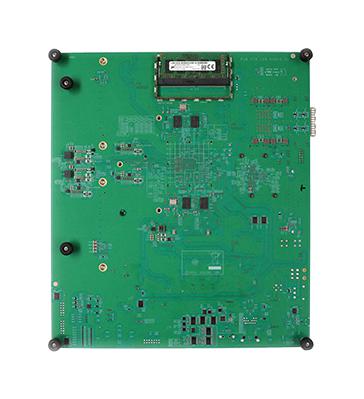

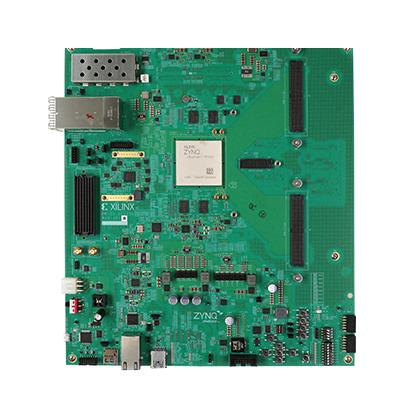

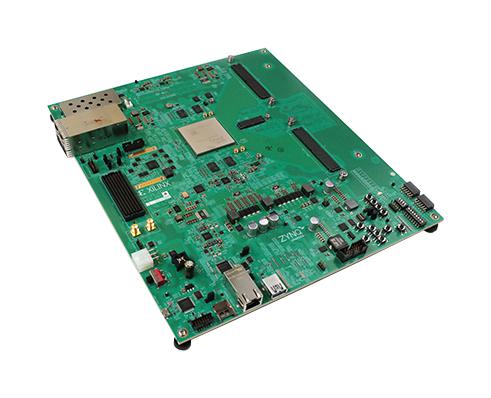

EK-U1-ZCU216-V1-G is a Zynq UltraScale+ RFSoC ZCU216 evaluation kit. Equipped with the industryâ��s only single-chip adaptable radio device, the Zynq®UltraScale+â�¢ RFSoC ZCU216 evaluation kit is the ideal platform for both rapid prototyping and high-performance RF application development. Reference add-on cards and connectivity options make the ZCU216 kit suitable for developing, testing, and debug of next-gen products while reducing development complexity and improving time to market. Co-optimized with Xilinxâ��s comprehensive Vivado® Design Suite, the ZCU216 kit comes with design files, development tools, and IPs. Target application includes 5G wireless in sub-6Ghz, millimetre wave intermediate frequency (IF) applications and unlicensed bands, digital phased array radar, fixed wireless access, terrestrial satellite communications, test and measurement.
- Zynq UltraScale+ RFSoC Gen 3 ZU49DR on the ZCU216 board
- Full sub-6GHz with extended mmWave and multi-band support
- Integrated direct RF-sampling enabling RF design in the digital domain
- 16 x 14-bit resolution 2.5GSPS ADCs, 16 x 14-bit resolution 10GSPS DACs
- 5G sub-6GHz massive-MIMO radio
- 5G mmWave intermediate frequency (IF) transceiver
- Fixed wireless access, digital phased array radar
- Terrestrial satellite communications, spectrum analysers
- High-speed RF testers
- FPGA Mezzanine Card (FMC+) interface for I/O expansion
Contents
ZCU216 evaluation board, XM655 16T16R breakout add-on card, XM650 16T16R N79 loopback add-on card, CLK104 RF clock add-on card, 6 filters, 2 low pass DC-2500MHz, 2 mid band pass 3000-4300MHz, 2 high band pass 4900-6200MHz, 2 carlisle SMA 8 cable assemblies, 2 SMA cables, 4 SSMP to SSMP cables, 4 Joy signal jumper cables, Ethernet cable, 2 micro USB cables, MicroSD card, power cords and adapters, Vivado® design suite system edition voucher, hand tools.
Footnotes
Please note this product is Non-Cancellable and Non-Returnable (NCNR). Warranty Information: Xilinx semiconductor products have a warranty of twelve (12) months from date of purchase.
Product details
Silicon Manufacturer:
Xilinx
|
No. of Bits:
-
|
Silicon Family Name:
Zynq UltraScale+
|
Core Architecture:
RFSoC
|
Core Sub-Architecture:
-
|
Silicon Core Number:
ZU49DR
|
Kit Contents:
Evaluation Board ZU49DR, XM655 16T16R/XM650 16T16R N79 Add-On Cards, Ethernet/USB Cable, MicroSDCard
|
Product Range:
-
|
Other details
Brand |
AMD XILINX |
Part Number |
EK-U1-ZCU216-V1-G |
Quantity |
Each |
Technical Data Sheet EN |
 |
