Zynq® UltraScale+� RFSoC ZCU208 evaluation kit is the ideal RF test platform for both out-of-box evaluation and cutting-edge application development. This kit features a Zynq UltraScale+ RFSoC ZU48DR, which integrates eight 14-bit 5GSPS ADCs, eight 14-bit 10GSPS DACs, and eight soft-decision forward error correction (SD-FEC) cores designed to jumpstart RF class applications. The combination of Arm® Cortex®-A53 and Cortex-R5 subsystems, UltraScale+ programmable logic, and the highest signal processing bandwidth in a Zynq UltraScale+ device, makes the ZCU208 evaluation kit the most comprehensive RF Analog-to-Digital signal chain prototyping platform.

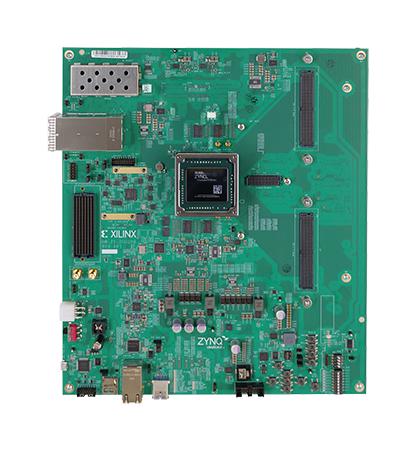

- Zynq UltraScale+ RFSoC XCZU48DR-2FSVG1517E silicon featured on the ZCU208 evaluation board
- Integrated 8x 5GSPS ADC, 8x 10GSPS DAC, 8x SD-FEC design example
- Lidless package for improved thermal dissipation
- DDR4 Component, DDR4 SODIMM
- FPGA Mezzanine card interface for I/O expansion including 12x33Gb/s GTY transceivers, 34 I/O signals
- Quad zSFP/zSFP+ cage assembly
- 8 user-I/O, single-color LEDs
- Includes reference design mezzanine cards to reduce development time
Contents
ZCU208 evaluation board, XM655 16T16R breakout add-on card, XM650 16T16R N79 band loopback add-on card, CLK104 RF clock add-on board, 6 filters, 2 carlisle SMA 8 cable assemblies, 2 SMA cables, 4 SSMP to SSMP cables, 4 joy signal jumper cables, Ethernet cable, 2 micro USB cables, MicroSD card, Power cords and adapters, Vivado Design Suite: system editor voucher, Handtools.
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Silicon Manufacturer |
Xilinx |
No. of Bits |
64bit |
Silicon Family Name |
Zynq UltraScale+ |
Core Architecture |
ARM |
Core Sub-Architecture |
Cortex-A53, Cortex-R5 |
Silicon Core Number |
XCZU48DR-2FSVG1517E |
Kit Contents |
ZCU208 Eval Board, Ethernet Cable, USB3 Adapter, Vivado Design Suite, Targus USB-3, USB Micro Cable |
Product Range |
- |
Other details
Brand |
AMD XILINX |
Part Number |
EK-U1-ZCU208-V1-G |
Quantity |
Each |
Technical Data Sheet EN |
 |
User Manual EN |
 |
