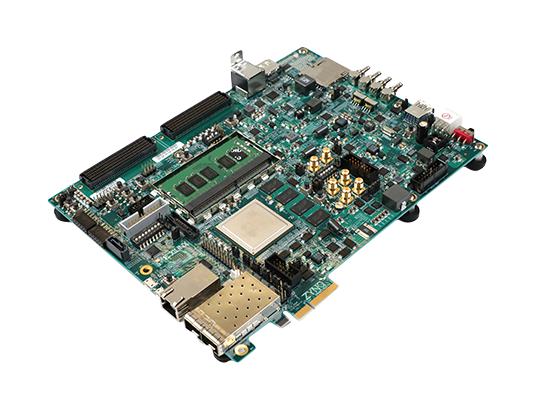

ZCU106 evaluation kit enables designers to jumpstart designs for video conferencing, surveillance, Advanced Driver Assisted Systems (ADAS) and streaming and encoding applications. This kit features a Zynq® UltraScale+� MPSoC EV device and supports all major peripherals and interfaces, enabling development for a wide range of applications. The included ZU7EV device is equipped with a quad-core Arm® Cortex®-A53 applications processor, dual-core Cortex-R5 real-time processor, Mali�-400 MP2 graphics processing unit, 4KP60 capable H.264/H.265 video codec, and 16nm FinFET+ programmable logic.
- Optimized for quick application prototyping with Zynq UltraScale+ MPSoC
- Integrated video codec unit supports H.264/H.265
- HDMI video input and output
- PCIe® Endpoint Gen3x4, USB3, DisplayPort & SATA
- DDR4 SODIMM - 72-bit attached to processor subsystem
- DDR4 Component - 64-bit attached to programmable logic
- 2x SFP+ cages
- 2x FPGA mezzanine card (FMC) interfaces for I/O expansion
Contents
ZCU106 evaluation board, Ethernet cable, 4-Port USB 3.0 hub, Access to a full seat of Vivado® design suite: design edition, Power cord and adapter, USB micro cable, ATX power supply adapter cable.
Product details
| Silicon Manufacturer |
Xilinx |
| No. of Bits |
64bit |
| Silicon Family Name |
Zynq UltraScale+ MPSoC |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-A53, Cortex-R5 |
| Silicon Core Number |
XCZU7EV-2FFVC1156 |
| Kit Contents |
Eval Board ZCU106, 4-Port USB 3.0 hub, Vivado Design suite, Power cord/adapter, ENET/USB micro cable |
| Product Range |
- |
Other details
| Brand |
AMD - XILINX |
| Part Number |
EK-U1-ZCU106-G-ED |
| Quantity |
Each |
| User Manual EN |
 |
