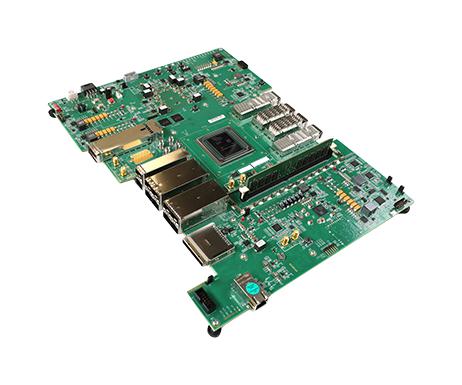

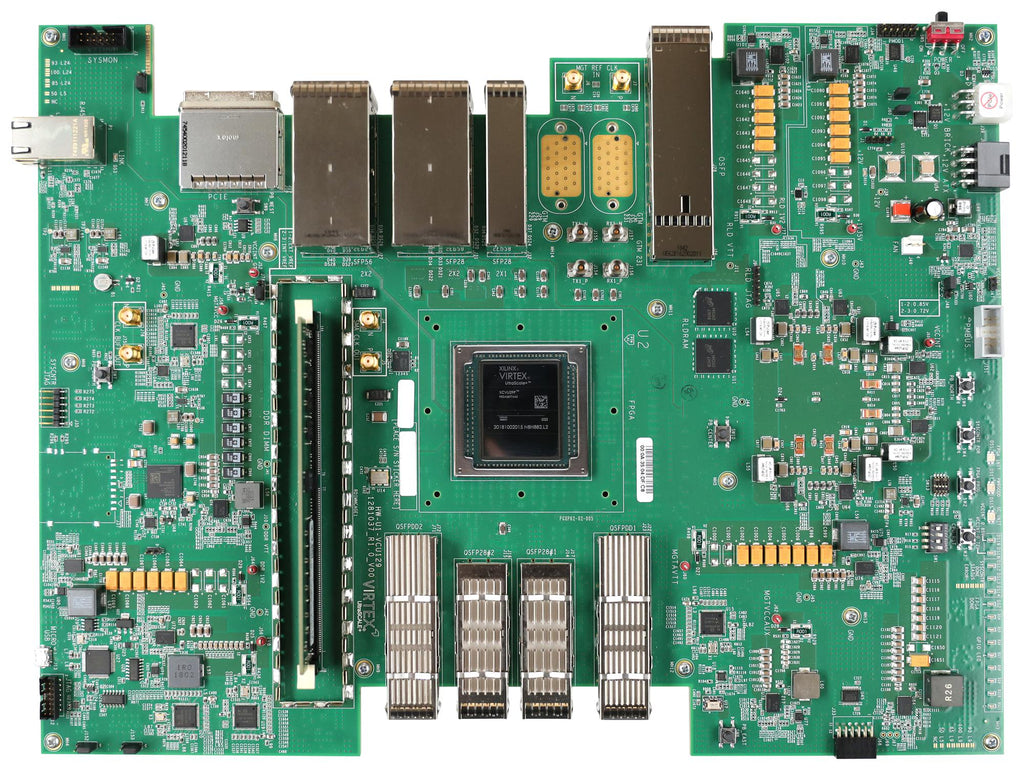

The VCU129 board incorporates the Virtex® UltraScale+� 58G PAM4 VU29P FPGA that integrates PAM4 transceivers to enable next-generation networking platforms. The VCU129 evaluation kit demonstrates Xilinx's SerDes technology leadership and takes advantage of the cost-effective thermal design of Xilinx's lidless packaging methodology. VCU129 features multiple common high-speed interconnects, on-board memories, and PCIe® Gen 3 interface. The VCU129 evaluation kit is built for designing a broad range of connectivity with high processing capability for 5G infrastructure, data centre, and test & measurement applications.
- Multiple 56G interfaces including SFP56, OSFP, QSFPDD, BullsEye Gen2, and SMK
- Multiple 28G interfaces including SFP28 and QSFP28
- 288MB RLDRAM3 memory and 16GB DDR4 DIMM
- PCIe® Gen3 x8
- 10/100/1000Mb/s Ethernet
- Full utilization of all GTM transceivers in 56G mode with FEC
- Superior cooling requirement with low power consumption
Contents
VCU129 evaluation board, OSFP/OSFP DD/OSFP+/SFP28 looback modules, Vivado Design suite/adapters/cables.
Product details
| Silicon Manufacturer |
Xilinx |
| No. of Bits |
- |
| Silicon Family Name |
Virtex UltraScale+ |
| Core Architecture |
FPGA |
| Core Sub-Architecture |
- |
| Silicon Core Number |
XCVU29P-L2FSGA2577E |
| Kit Contents |
Eval Board VCU129, OSFP/OSFP DD/OSFP+/SFP28 Looback Modules, Vivado Design Suite/Adapters/Cables |
| Product Range |
- |
Other details
| Brand |
AMD - XILINX |
| Part Number |
EK-U1-VCU129-G |
| Quantity |
Each |
| User Manual EN |
 |
