The EK-U1-KCU116-G from Xilinx is a Kintex® UltraScale+� FPGA KCU116 evaluation kit. This EV kit is ideal for evaluating key Kintex® UltraScale+� features most notably 28Gbps transceiver performance. The Kintex UltraScale+� family provides the best price/performance/watt balance in a FinFET node, delivering the most cost effective solution for high end applications. Based on the UltraScale architecture, UltraScale+� FPGA family have increased performance and on-chip ultraRAM memory to reduce BOM cost, providing the ideal mix of high performance peripherals and cost effective system implementation. In addition, Kintex UltraScale+ FPGAs have numerous power options that deliver the optimal balance between the required system performance and the smallest power envelope.
- 4x zSFP+ cages to support 28Gbps GTY evaluation
- DDR4 up to 32bits
- PCIe Gen3 x8 compliant and Gen4 capable
- General purpose prototyping elements including FMC, HDMI, PMODs
Applications
Embedded Design & Development
Contents

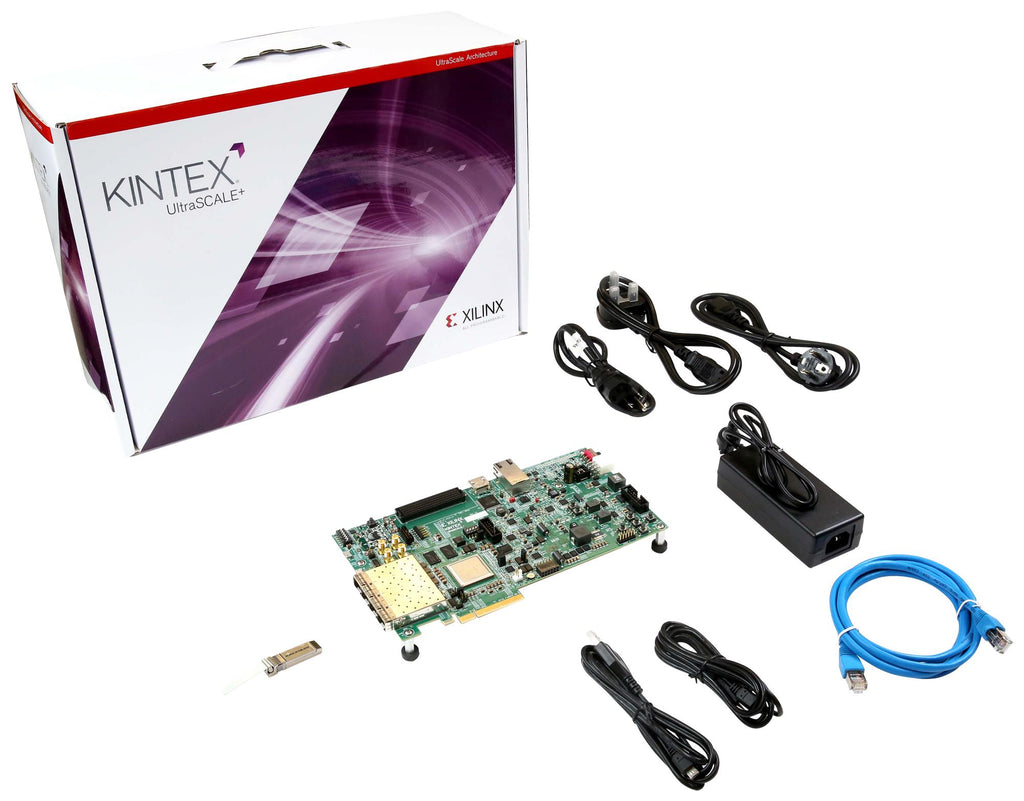

KCU116 board featuring the XCKU5P-2FFVB676E, 1x 28Gbps SFP28 electrical loopback module, Voucher providing access to a full seat of Vivado® design suite: design edition, Node-locked and device-locked to the XCKU5P, USB cables, Power supply.
Footnotes Please note this product is Non-Cancellable and Non-Returnable (NCNR). Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. Warnings Warranty Information: Xilinx development boards, kits and programming cables have a warranty of ninety (90) days from date of purchase.
Product details
| Silicon Manufacturer |
Xilinx |
| No. of Bits |
- |
| Silicon Family Name |
Kintex UltraScale+ |
| Core Architecture |
FPGA |
| Core Sub-Architecture |
- |
| Silicon Core Number |
XCKU5P-2FFVB676E |
| Kit Contents |
Eval Board XCKU5P-2FFVB676E, SFP28 Electrical Loopback Mod, Power/Ethernet/Micro USB Cable, S/W |
| Product Range |
- |
Other details
| Brand |
AMD XILINX |
| Part Number |
EK-U1-KCU116-G |
| Quantity |
Each |
| User Manual EN |
 |
| Operating Instructions EN |
|
