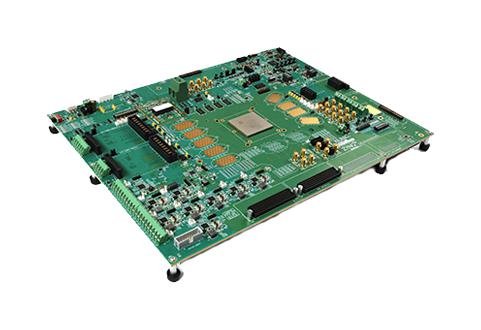

Zynq® UltraScale+� RFSoC ZCU1285 characterization kit provides everything you need to characterize and evaluate the integrated ADCs and DACs, as well as GTY, GTR transceivers available on the Zynq UltraScale+ Gen 2 XCZU39DR RFSoC. All 16 12-bit 2.220GSPS ADCs, all 16 14-bit 6.554GSPS DACs, all 16 GTY transceivers, and all 4 GTR transceivers are accessible through Samtec BullsEye connectors. The BullsEye connector allows you to connect to custom baluns and test equipment for the highest level of flexibility in testing custom applications. Find out more and see what is included in the kit.

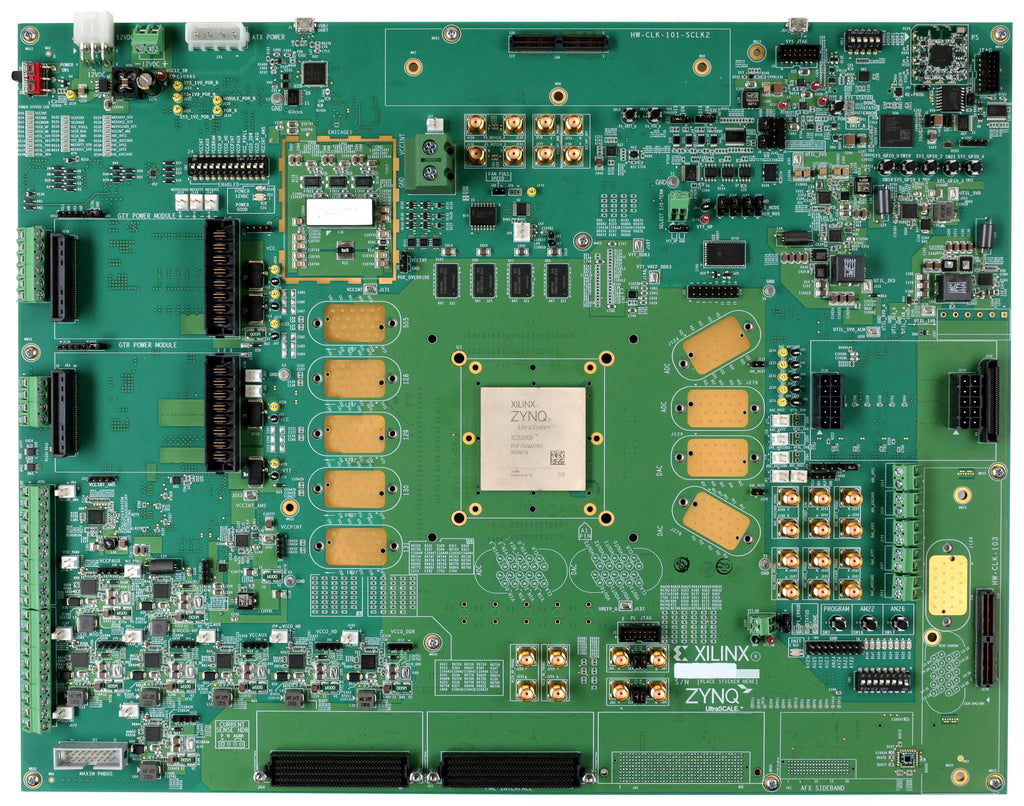

- Hardware environment for evaluating integrated ADC, DAC & transceivers on XCZU39DR-2FFVF1760I RFSoC
- Integrated 16x16 ADC, DAC design example
- Integrated Bit Error Ratio Test (IBERT) reference design
- BullsEye connectors supporting full ADC, DAC, GTY transceivers, and GTR transceivers
- SMA power probe channels for all ADC/DAC rails, all GTY/GTR rails and VCCINT/VCCO
- HP/VCCO
- HD rails
- Analog RF SuperClock module supporting all ADC/DAC clock requirements
- GT SuperClock module supporting GTY/GTR reference clock requirements
- One high pin count (HPC) FPGA mezzanine card (FMC) connector
- One low pin count (LPC) FMC connector
Contents

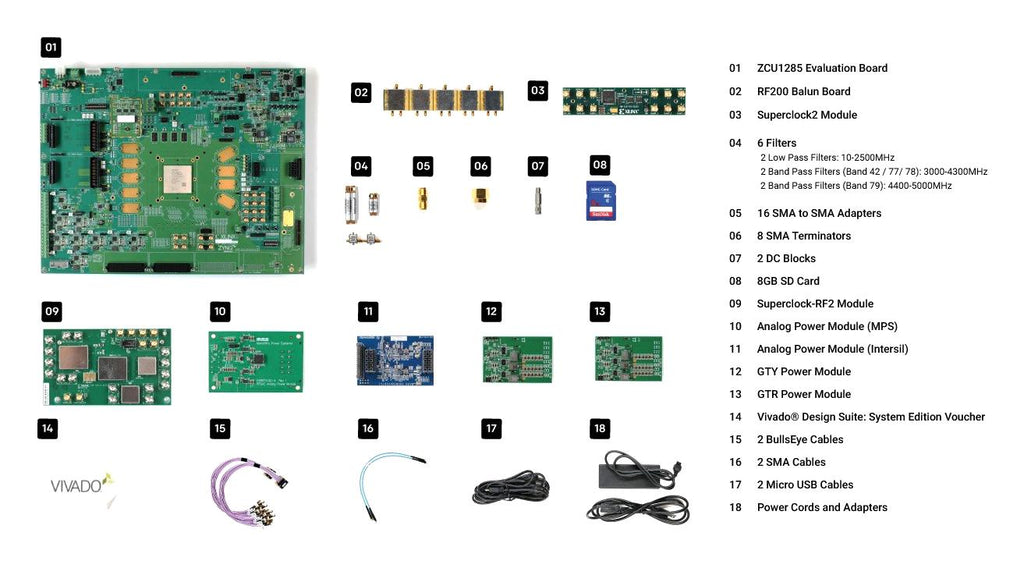

ZCU1285 evaluation board, RF200 balun board, Superclock2 module, 6x filters, 16 x SMA to SMA adapters, 8 x SMA terminators, 2 x DC blocks, 8GB SD card, Superclock RF2 module, Analogue power module(MPS), Analogue power module(Intersil), GTY power module, GTR power module, Vivado design suite, 2 x BullsEye cable, 2 x SMA cables, 2 x micro USB cables, Power cords and adapters.
Product details
| Silicon Manufacturer |
Xilinx |
| No. of Bits |
64bit |
| Silicon Family Name |
Zynq UltraScale+ |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-A53, Cortex-R5 |
| Silicon Core Number |
XCZU39DR-2FFVF1760I |
| Kit Contents |
ZCU1285 Brd, Balun Brd, Filters, SMA Adapter/Terminators, DC Blocks, SD Card, Bullseye/SMA/USB Cable |
| Product Range |
- |
Other details
| Brand |
AMD - XILINX |
| Part Number |
CK-U1-ZCU1285-G |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| User Manual EN |
|
