| ₹ 6355.0 includes GST and import duties. | |
| B2B customers can avail ₹ 969.14 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

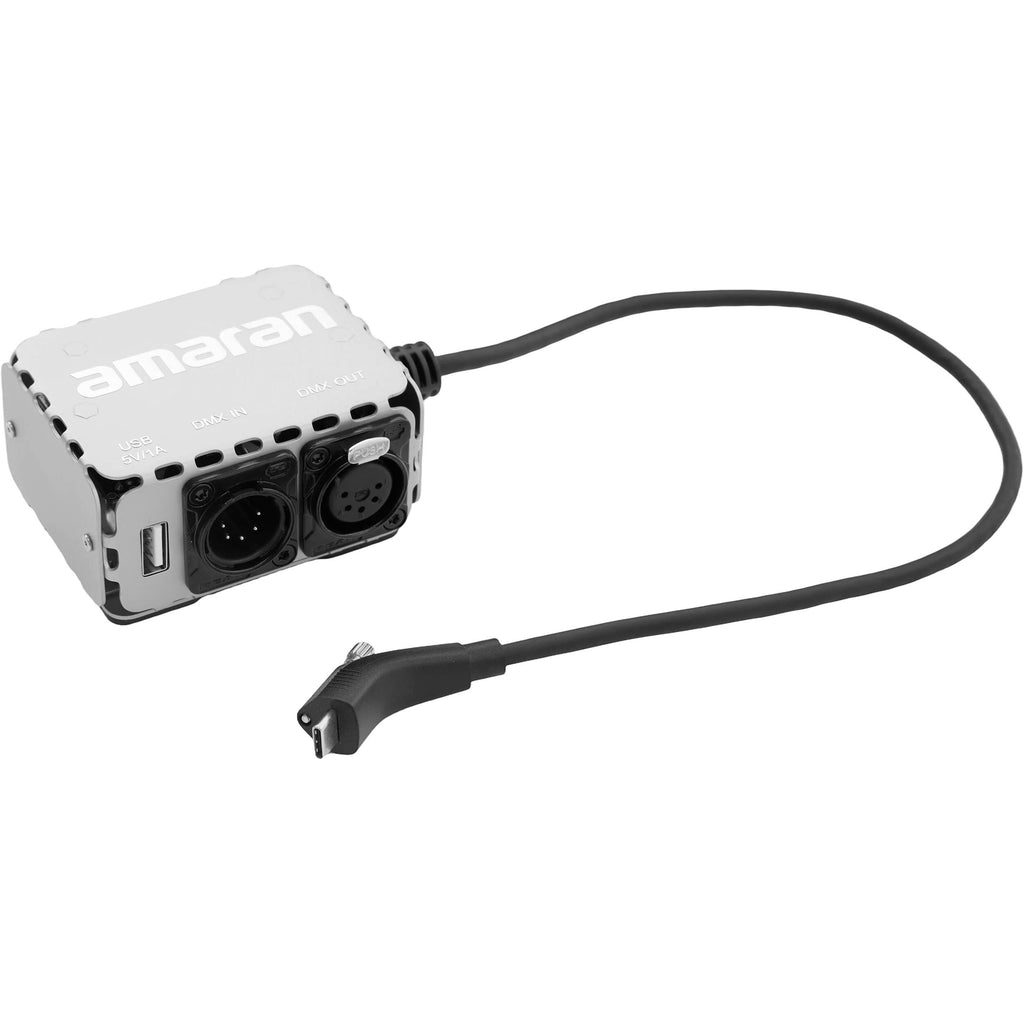

amaran MA0006041R Overview

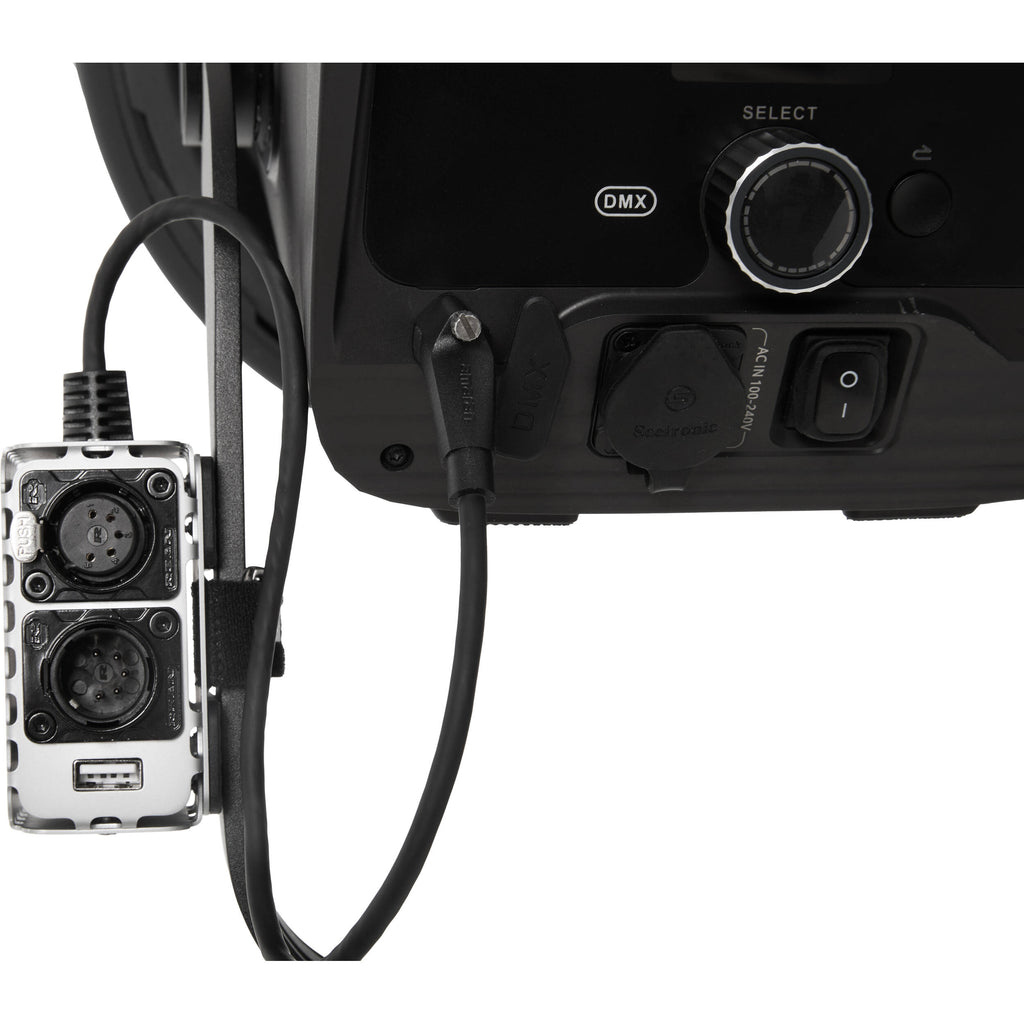

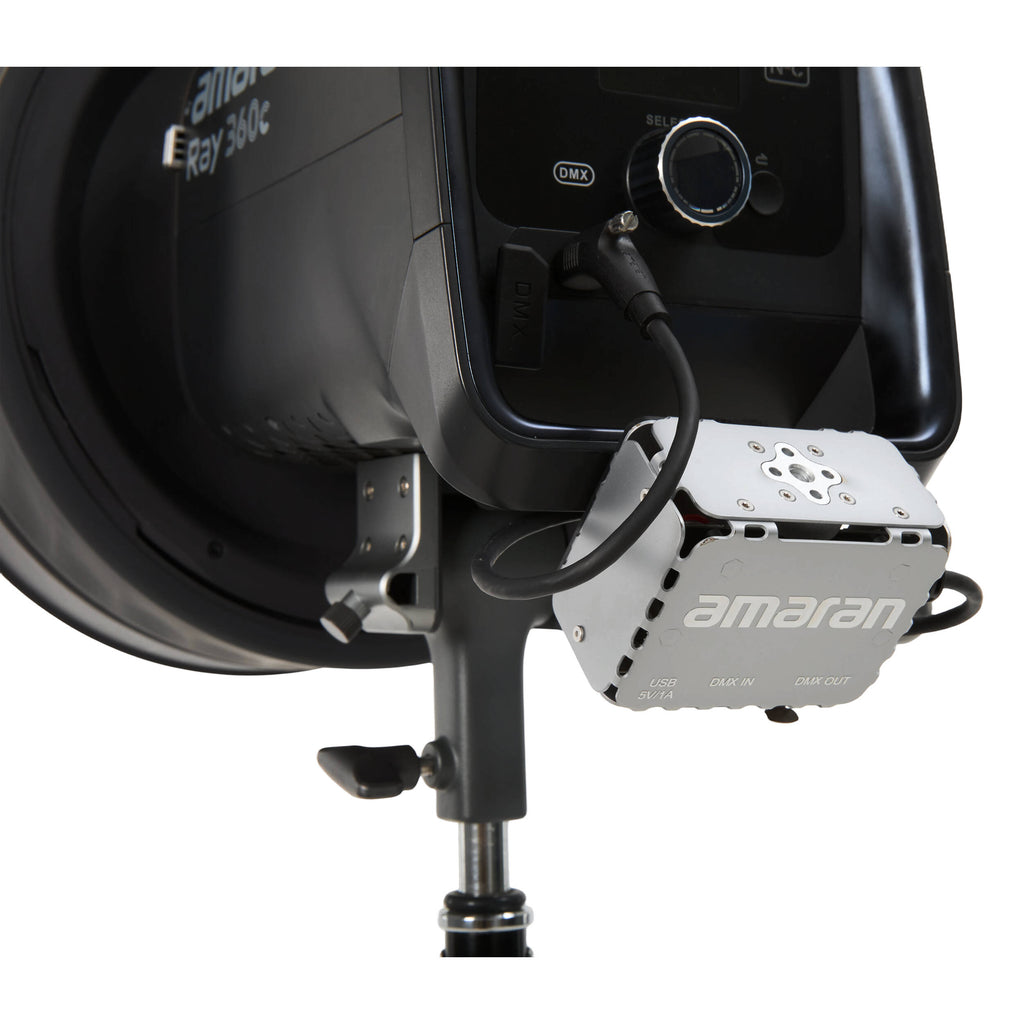

Use this USB-C to 5-Pin DMX In & Out Adapter with amaran's separately available Ray 360c and 660c fixtures to achieve DMX control via USB-C connection. This DMX converter easily integrates the lights into optional industry-standard consoles and software. Whether programing precise cues, syncing multi-light looks, or triggering repeatable scenes, DMX control via USB-C lets you scale into more advanced studio workflows.
Locking USB-C Connector

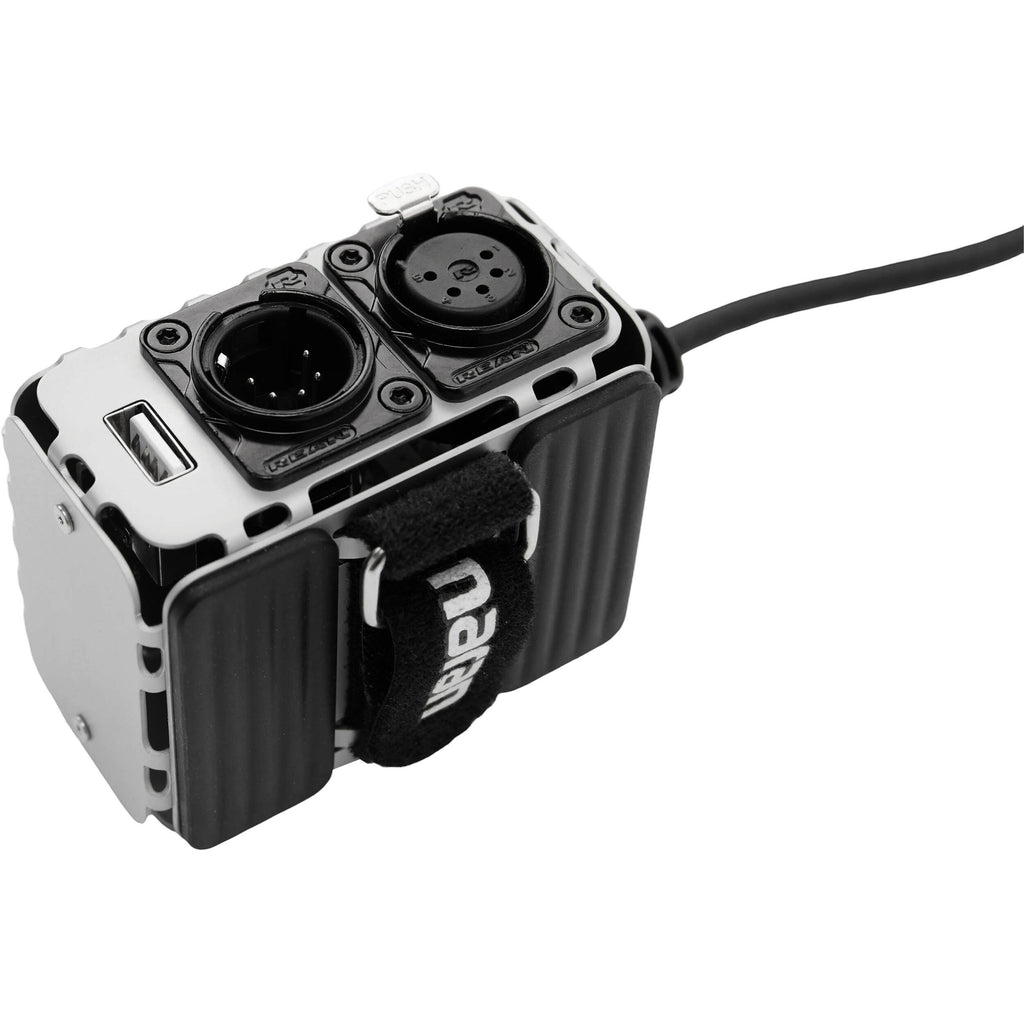

This USB-C to DMX expansion module adds wired 8-bit DMX512 control to the brand's Ray 360c and 660c lights. Featuring a screw-lock USB-C connector, this DMX device ensures secure and consistent data transmission on set.
Flexible Mounting

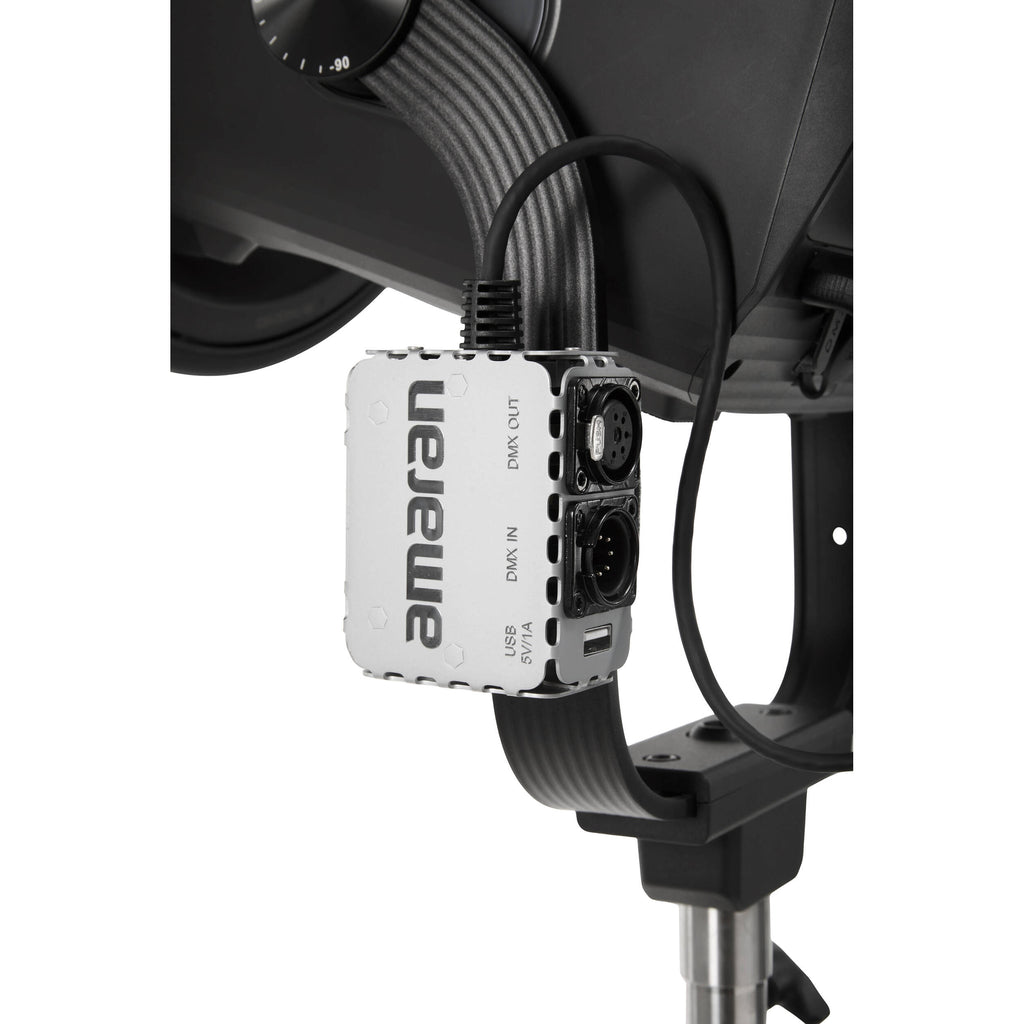

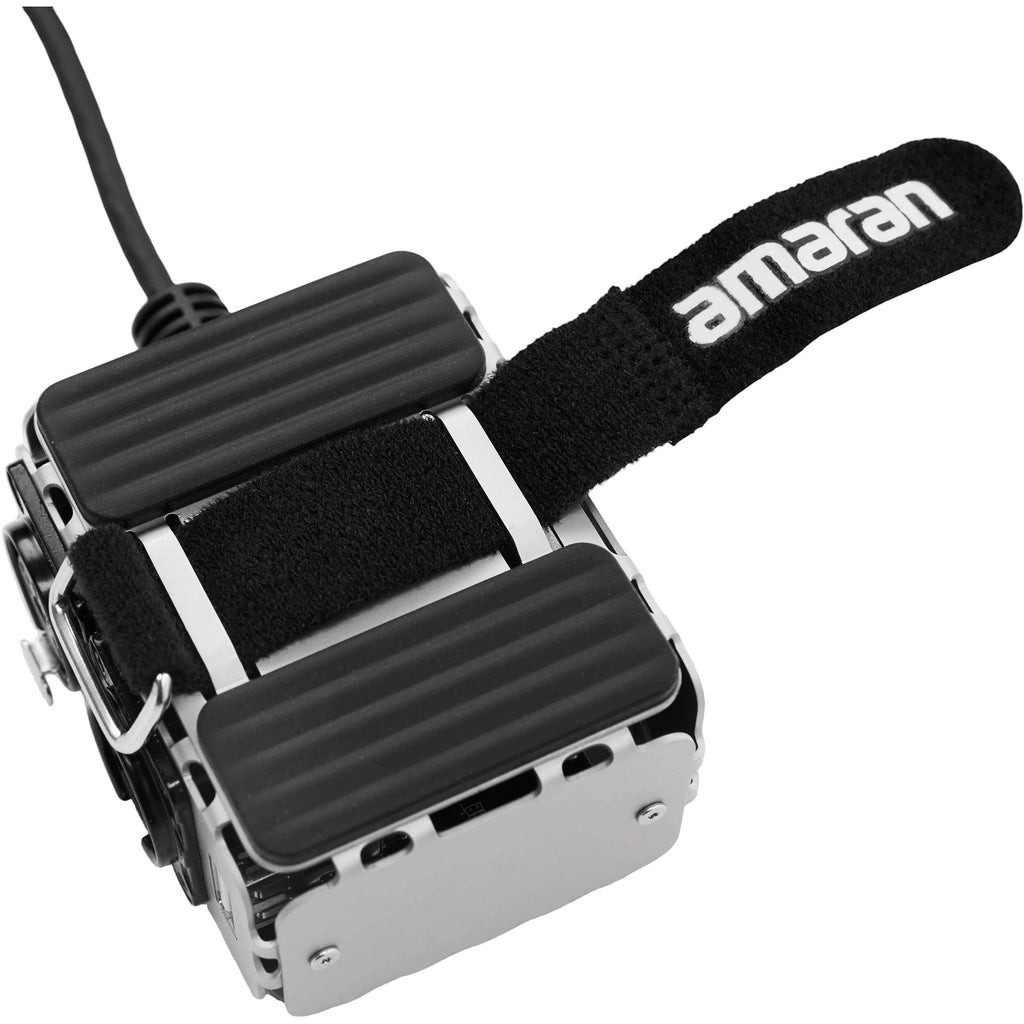

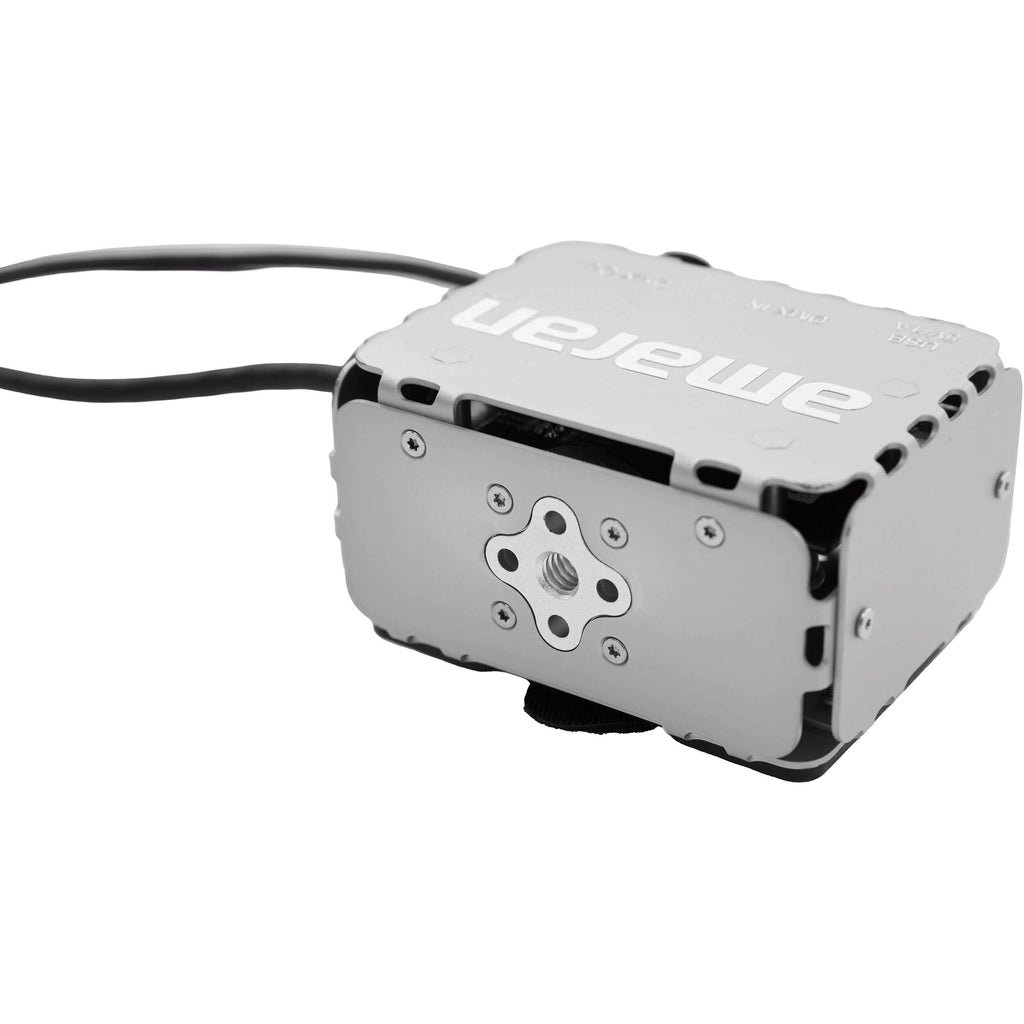

Use its hook-and-loop strap to fasten the adapter to the amaran Ray's handle, yoke, or light stand or you can mount it via the integrated 1/4-20" screw for a fixed position.
USB-A Firmware Updates
Besides wired DMX control, the adapter's 5V/1A USB-A port allows you to update your amaran Ray 360c or 660c's firmware via USB drive.
- amaran USB-C to 5-Pin DMX In & Out Adapter
- Limited 1-Year Manufacturer Warranty
No additional resources available
amaran MA0006041R Specs
Key Specs
| Inputs/Outputs |
1x XLR 5-Pin (DMX) Input
1x XLR 5-Pin (DMX) Female Output 1x USB-C (DMX) Locking Male Output 1x USB-A |
| Channels |
512 (DMX)
|
| Protocol |
DMX512
|
General
| Inputs/Outputs |
1x XLR 5-Pin (DMX) Input
1x XLR 5-Pin (DMX) Female Output 1x USB-C (DMX) Locking Male Output 1x USB-A |
| Channels |
512 (DMX)
|
| Dimming |
Optional
|
| Cooling System |
No
|
Compatibility
| Protocol |
DMX512
|
Physical
| Environmental Resistance |
No
|
| Dimensions |
6.8 x 5.2 x 2.6" / 17.2 x 13.2 x 6.7 cm
|
| Weight |
8.5 oz / 240 g
|
Packaging Info
| Package Weight |
0.73 lb
|
| Box Dimensions (LxWxH) |
7 x 5.3 x 2.9"
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 6227.9 |
| 3-5 | ₹ 6164.35 |
| 5-10 | ₹ 6037.25 |
| 10+ | ₹ 5910.15 |
Bulk discount will be automatically applied during checkout based on quantity.
