Description

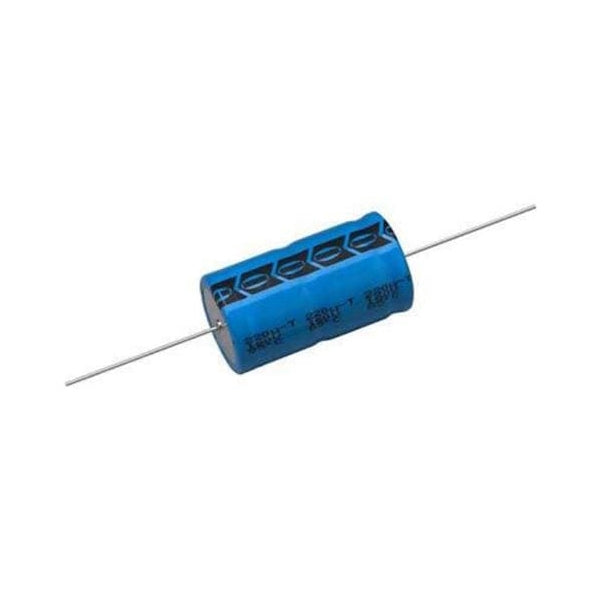

Vishay/BC Components Axial Aluminum Electrolytic Capacitor - 63VDC, 470uF is a axial-leaded, miniaturized capacitor with 10000 hours useful life at +105°C.
Features & Specs
- Termination Style: Axial
- Capacitance: 470 uF
- Voltage Rating DC: 63 VDC
- Tolerance: 20%
- Ripple Current: 660 mA
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Diameter: 12.5mm
- Length: 30mm
- Life: 10000 Hours
- ESR: 226 mOhms
- Leakage Current: 79 uA
- Dissipation Factor DF: 0.08
- Lead Style: Straight
Features & Specs
- Termination Style: Axial
- Capacitance: 470 uF
- Voltage Rating DC: 63 VDC
- Tolerance: 20%
- Ripple Current: 660 mA
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Diameter: 12.5mm
- Length: 30mm
- Life: 10000 Hours
- ESR: 226 mOhms
- Leakage Current: 79 uA
- Dissipation Factor DF: 0.08
- Lead Style: Straight
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 823.2 |
| 3-5 | ₹ 814.8 |
| 5-10 | ₹ 798.0 |
| 10+ | ₹ 781.2 |
Bulk discount will be automatically applied during checkout based on quantity.
