| ₹ 1010.0 includes GST and import duties. | |
| B2B customers can avail ₹ 154.03 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

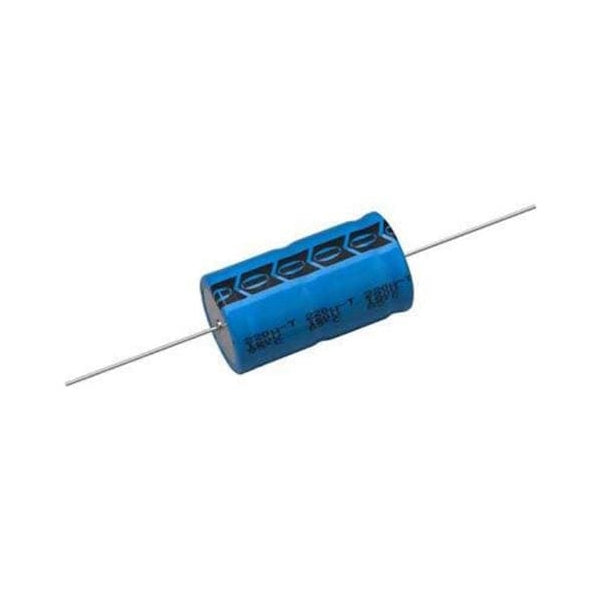

Vishay/BC Components Axial Aluminum Electrolytic Capacitor - 16VDC, 3300uF is a axial-leaded, miniaturized capacitor with 5000 hours useful life at +105°C.
Features & Specs
- Termination Style: Axial
- Capacitance: 3300 uF
- Voltage Rating DC: 16 VDC
- Tolerance: 20%
- Ripple Current: 1090 mA
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Diameter: 15mm
- Length: 30mm
- Life: 10000 Hours
- ESR: 88 mOhms
- Leakage Current: 126 uA
- Dissipation Factor DF: 0.22
- Lead Style: Straight
Features & Specs
- Termination Style: Axial
- Capacitance: 3300 uF
- Voltage Rating DC: 16 VDC
- Tolerance: 20%
- Ripple Current: 1090 mA
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Diameter: 15mm
- Length: 30mm
- Life: 10000 Hours
- ESR: 88 mOhms
- Leakage Current: 126 uA
- Dissipation Factor DF: 0.22
- Lead Style: Straight
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 989.8 |
| 3-5 | ₹ 979.7 |
| 5-10 | ₹ 959.5 |
| 10+ | ₹ 939.3 |
Bulk discount will be automatically applied during checkout based on quantity.
