Description

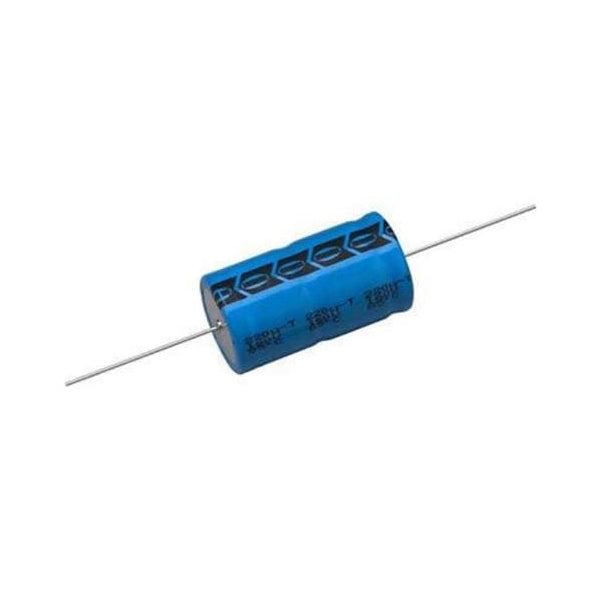

Vishay/BC Components Axial Aluminum Electrolytic Capacitor - 16VDC, 1000uF is a axial-leaded, miniaturized capacitor with 5000 hours useful life at +105°C.
Features & Specs
- Termination Style: Axial
- Capacitance: 1000 uF
- Voltage Rating DC: 16 VDC
- Tolerance: 20%
- Ripple Current: 330 mA
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Diameter: 10mm
- Length: 18mm
- Life: 5000
- ESR: 239 mOhms
- Leakage Current: 52 uA
- Dissipation Factor DF: 0.18
- Lead Style: Straight
Features & Specs
- Termination Style: Axial
- Capacitance: 1000 uF
- Voltage Rating DC: 16 VDC
- Tolerance: 20%
- Ripple Current: 330 mA
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Diameter: 10mm
- Length: 18mm
- Life: 5000
- ESR: 239 mOhms
- Leakage Current: 52 uA
- Dissipation Factor DF: 0.18
- Lead Style: Straight
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 656.6 |
| 3-5 | ₹ 649.9 |
| 5-10 | ₹ 636.5 |
| 10+ | ₹ 623.1 |
Bulk discount will be automatically applied during checkout based on quantity.
