| ₹ 52385.0 includes GST and import duties. | |
| B2B customers can avail ₹ 7988.71 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Provided by third party:
Model AL600ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Class 2 Rated power limited PTC protected Fail-Safe and/or Fail-Secure outputs with a total of 6 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL600ULACM is a fuse protected version of this unit.
In the Box

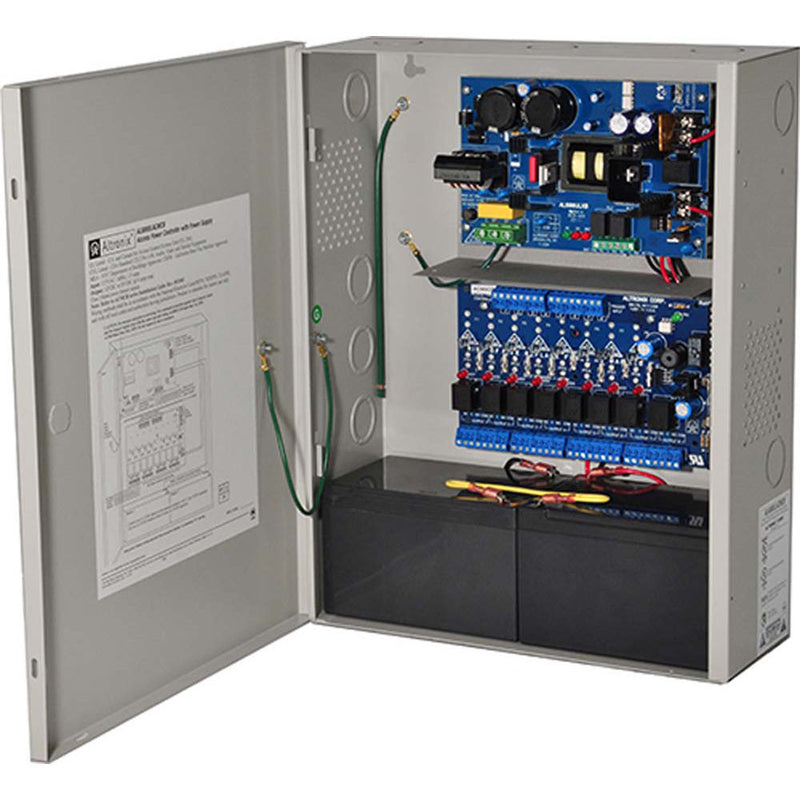

ALTRONIX Power Supply/Charger with 8 PTC Outputs Access Power Controller (12 / 24VDC @ 6A)
- Lifetime Limited Warranty
| Technical Information | |
|---|---|
| Protection Type | Short Circuit Thermal Overload |
| Power Description | |
|---|---|
| Input Voltage Type | AC |
| Input Voltage | 110 V AC |
| Number of +12V Rails | 8 |
| Output Voltage | 12 V DC @ 6 A 24 V DC @ 6 A |
| Input Current | 1.90 A @ 110V |
| Physical Characteristics | |
|---|---|
| Form Factor | Wall Mount |
| Height | 15.5" |
| Width | 12.2" |
| Depth | 4.5" |
| Weight (Approximate) | 10.20 lb |
| Miscellaneous | |
|---|---|
| Compatibility |
Access Control Devices:
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 51337.3 |
| 3-5 | ₹ 50813.45 |
| 5-10 | ₹ 49765.75 |
| 10+ | ₹ 48718.05 |
Bulk discount will be automatically applied during checkout based on quantity.
