Description
ALTRONIX NETWAY8BT Overview

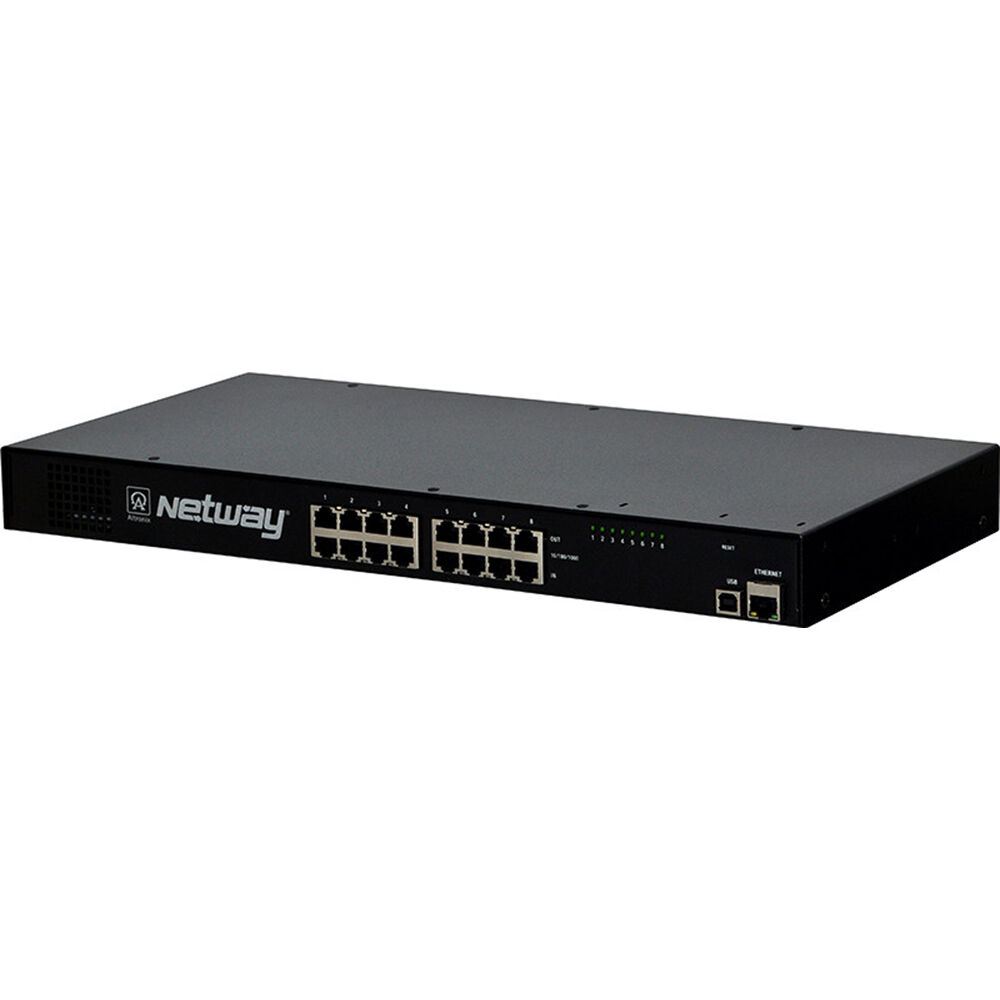

Add Power-over-Ethernet to non-powered networks with the Altronix NetWay8BT 8-Port Gigabit PoE++ Managed Midspan. Each of the eight PoE++ compatible RJ45 output ports support Gigabit speeds and up to 90W of power with a total budget of 480W, allowing you operate IP security cameras, access points, security locks, and other compatible devices. The eight Gigabit RJ45 inputs connect to your network switch.
The NetWay8BT supports a maximum distance of 328' using Cat 5e cables. This midway allows you to connect and charge a separately purchased battery backup system. Built-in network management with LINQ technology allows you to monitor, control, and report power and diagnostics from anywhere over the network.
Items Included
- ALTRONIX NetWay8BT 8-Port Gigabit PoE++ Managed Midspan
- Power Cable
- Limited Lifetime Warranty
Additional Resources
No additional resources available
ALTRONIX NETWAY8BT Specs
| Inputs/Outputs |
8x RJ45 Gigabit Ethernet PoE++ (100 W) (Output)
8x RJ45 Gigabit Ethernet (Input) 1x RJ45 1x USB-B |
| Shielded I/O |
No
|
| PoE Power |
55 VDC, 480 W (Output)
|
| Maximum Operating Distance |
.1 Miles / 100 m
|
| Inputs/Outputs |
8x RJ45 Gigabit Ethernet PoE++ (100 W) (Output)
8x RJ45 Gigabit Ethernet (Input) 1x RJ45 1x USB-B |
| Shielded I/O |
No
|
| Supported IEEE Standards |
802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 4 (PoE++ 100 W)
|
| Rack Form Factor |
1 U
|
| PoE Power |
55 VDC, 480 W (Output)
|
| Surge Protection |
Yes
|
| Input Power |
115 to 230 VAC, 50 / 60 Hz at 3 to 5.5 A
|
| Maximum Operating Distance |
.1 Miles / 100 m
|
| Environmental Resistance |
No
|
| Environmental Use |
Indoor
|
| Operating Conditions |
-4 to 122?F / -20 to 50?C up to 85% Humidity
|
| Storage Conditions |
-4 to 158?F / -20 to 70?C
|
| Certifications |
CE
|
| LED Indicators |
Yes
|
| Wall Mountable |
No
|
| Dimensions |
19.1 x 8.5 x 1.7" / 486.0 x 216.0 x 42.0 mm
|
| Weight |
6.06 lb / 2.75 kg
|
